3D printable hvac mix door lever for the 2009 Ford Explorer: download the STL file and print an affordable replacement for a discontinued or expensive original part.
About this part
<s>I apologize that I didn't do this sooner, when I remembered exactly what vehicle I was working on at the time.</s> EDIT: I found a pic of the vin! Info Updated

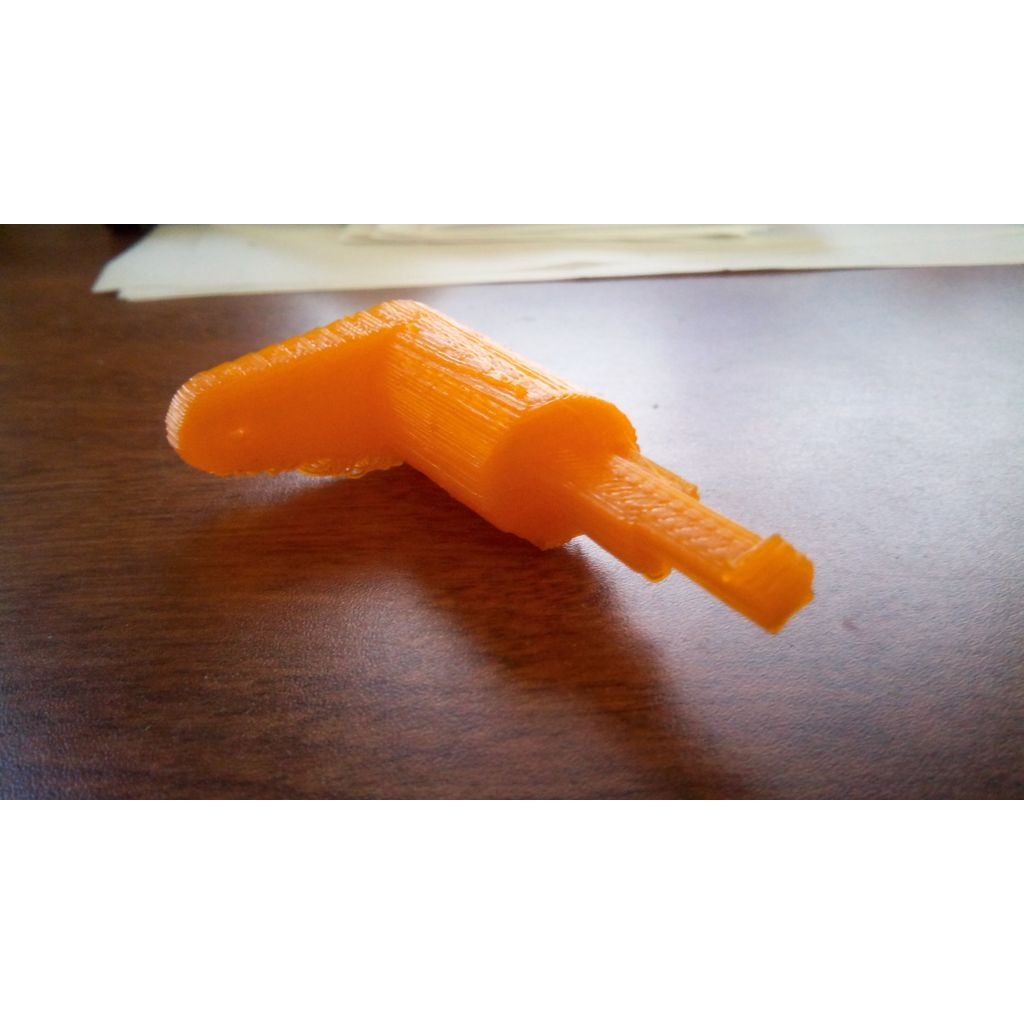

I made this part to repair a 2009 Ford Explorer that wouldn't blow air out the panel vents. I opened the glove box and dropped it down so i could access behind it. I found this little piece with the arm broken clean off. It pulled straight out. Ford only offered it as part of a $400 assembly, that I would have to remove the dash to install. I changed the design to take a screw where the old one had a plastic pivot.
It's not parametric but I have included the (messy) openscad file.
Compatible vehicles
- 2009 Ford Explorer
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Hvac Mix Door Lever |
|---|---|
| Make | Ford |
| Model | Explorer |
| Year | 2009 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 1 (STL) |
| Part number | CAT-3dcf81c5 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
More Ford parts
Browse all Ford replacement parts or search the full 3D printable car parts library.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
