Hvac Recirculation Actuator Lever Arm – 2007-2008 Ford Fiesta MK6 (XR4)

Need a replacement hvac recirculation actuator lever arm for your 2007-2008 Ford Fiesta MK6 (XR4)? This 3D-printed part is made to order to replace a broken, worn or missing original piece.

About this part

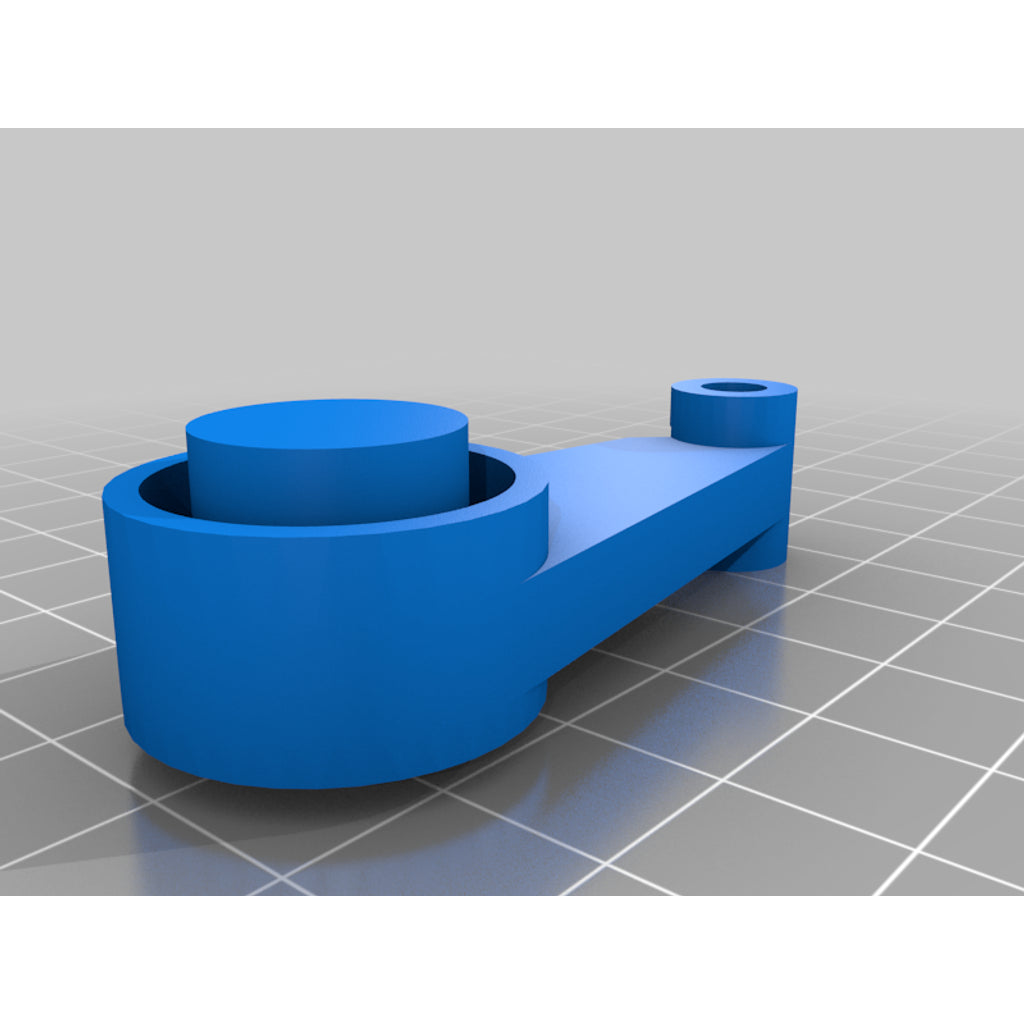

Originally drawn up in FreeCAD, this item is a replica of the small arm that connects between the Recirculation Actuator on standard manual AND auto climate control models, and the 2 x sheathed cables that lead to the individual recirculation flaps. The was copied specifically from an Australian 2007 Ford Fiesta XR4 - known as the ST150 in other markets - but is common to the heater box in all Mk6 Fiestas and Fusions. This won't work for Indian Figo or other Mk6 based heater boxes as they use a slightly upgraded mechanism that requires only a single sheathed cable.

I printed in PLA with the actuator key side up, and used tree supports touching everywhere - in order to get a little bit of extra support for the smaller side of the lever that's a bit complicated for taking the cable end. I just clear the support away with a knife and a drill at the end of printing.

Probably best with 100% infill for maximum strength, but I did mine at 50% infill and it seems strong enough in testing. I'd suggest printing in PETG or ASA if your car is in a summer climate, like us, as in car temps can exceed the temp that PLA is stable.

Compatible vehicles

• 2007-2008 Ford Fiesta MK6 (XR4)

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Ford parts

Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
