Key Insert Holder Card – 2018 Suzuki Swift ZC33S (Sport)
Key Insert Holder Card – 2018 Suzuki Swift ZC33S (Sport)

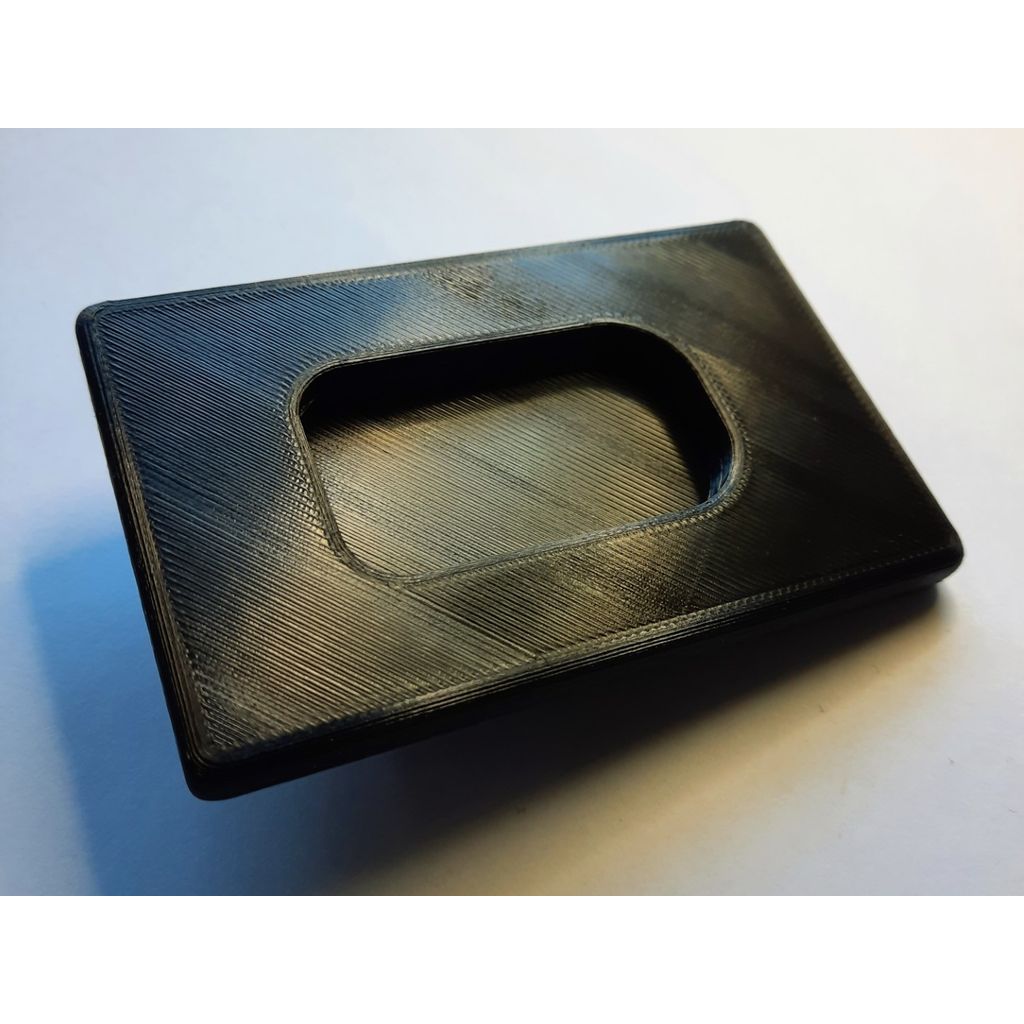

3D-printed replacement key insert holder card made for the 2018 Suzuki Swift ZC33S (Sport): a simple way to replace a cracked, lost or hard-to-find original part.
About this part
After getting my Suzuki Swift Sport I got annoyed pretty quickly of having to carry the large keyfob around, particularly as the key itself isn't needed (unless in emergency anyway).
My previous car had a thick credit card sized wireless key, so figured I could make the same for the Swift once I realised the wireless insert inside the plastic keyfob housing could easily be removed when splitting the fob open to change the battery.
Dimensions are about that of a business card (90mm x 55mm), and it is 8mm thick.
I have tried making it a bit thinner, however it makes the insert sit out and is no longer flush. I also thought about making a lid that slides over the top, however this will make it even thicker.
The keyfob insert fits in quite easily, and while it doesn't stick or click in, it sits fine and is easy enough to remove (although I have a thin piece of double sided tape at the bottom as I shouldn't ever need to remove it).
There are two versions - one just fits the insert in the middle, the second has it at the bottom left as there is a hole on the right side to insert the emergency key.
You'll need a wallet with a section thick enough for it though (I keep it with my business cards as you can see in the photo). Please note this will not work in a wallet that has RFID shielding.
Compatible vehicles
- 2018 Suzuki Swift ZC33S (Sport)
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Key Insert Holder Card |
|---|---|
| Make | Suzuki |
| Model | Swift |
| Year | 2018 |
| Production | 3D printed to order (FDM) |
| Design files | 2 (STL) |
| Part number | CAT-1b566b46 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Suzuki parts
Browse all Suzuki replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
