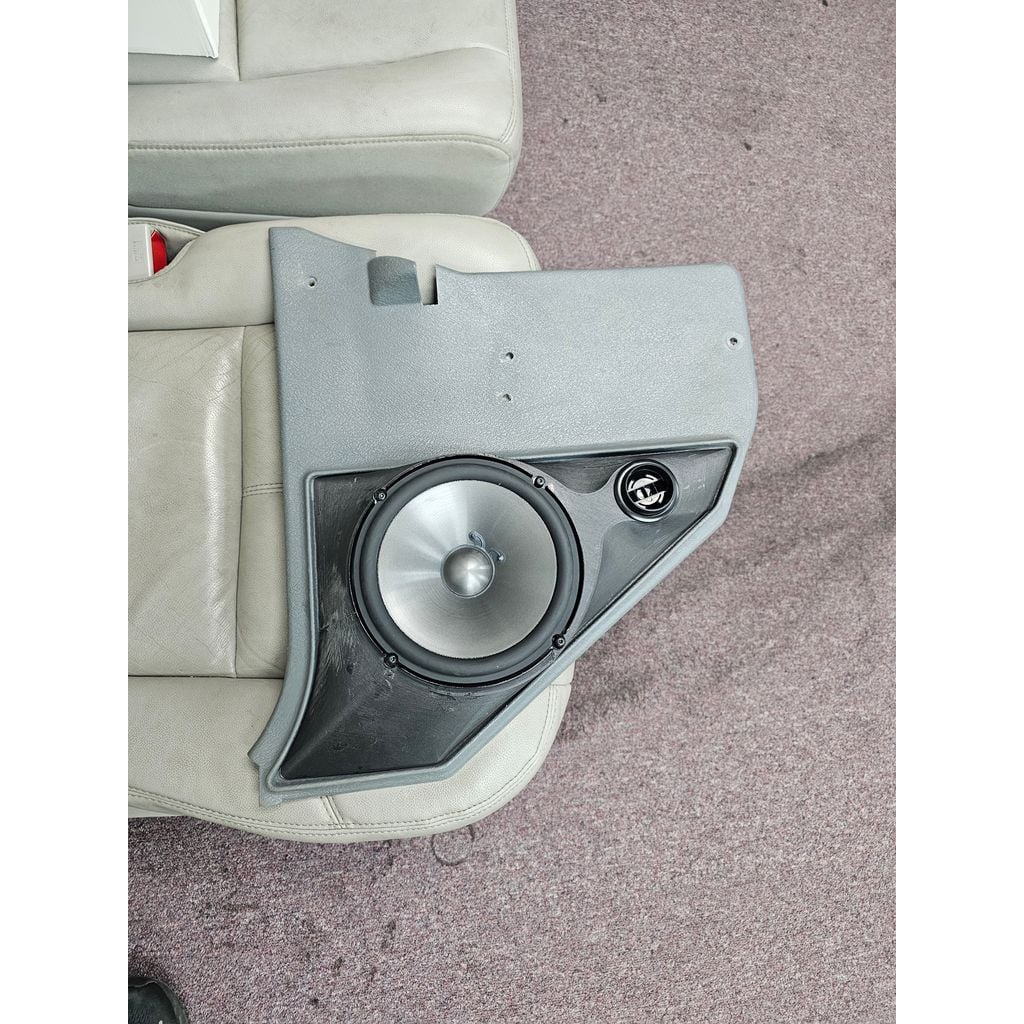

Kick Panel Speaker Mount – 1981-1987 Chevrolet C10 Squarebody (K5 Suburban)

3D-printed replacement kick panel speaker mount made for the 1981-1987 Chevrolet C10 Squarebody (K5 Suburban): a simple way to replace a cracked, lost or hard-to-find original part.

About this part

Used a revopoint 3d scanner to scan the kick panels on my squarebody suburban. Wanted to make some custom mounts for some component speakers I have to go in my truck.

I'll be happy to upload the scan if someone requests it. here are the complete kick panels, as well as sliced into 3 smaller sections to print on my anet printer.

I purposefully left out the mounting holes as I was exploring different mounting ideas. For now, I just heated up a metal tool of sorts to poke my holes through the Carbon Fiber PLA I'm using.

For the section of 3 that I printed, I just used some two part epoxy to glue the panels together to make the complete kick panel and it turned out great and doesn't seem like there's going to be any issues there.

I did only scan the left side, then just mirrored for the right. I assume the right will work just fine, but I've only finished the left side. Right side will be done in a few days.

Compatible vehicles

• 1981-1987 Chevrolet C10 Squarebody (K5 Suburban)

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
