3D-printed replacement license plate bracket fastener clip made for the 1996-2004 Bmw 5 Series E39 (Touring): a simple way to replace a cracked, lost or hard-to-find original part.
About this part

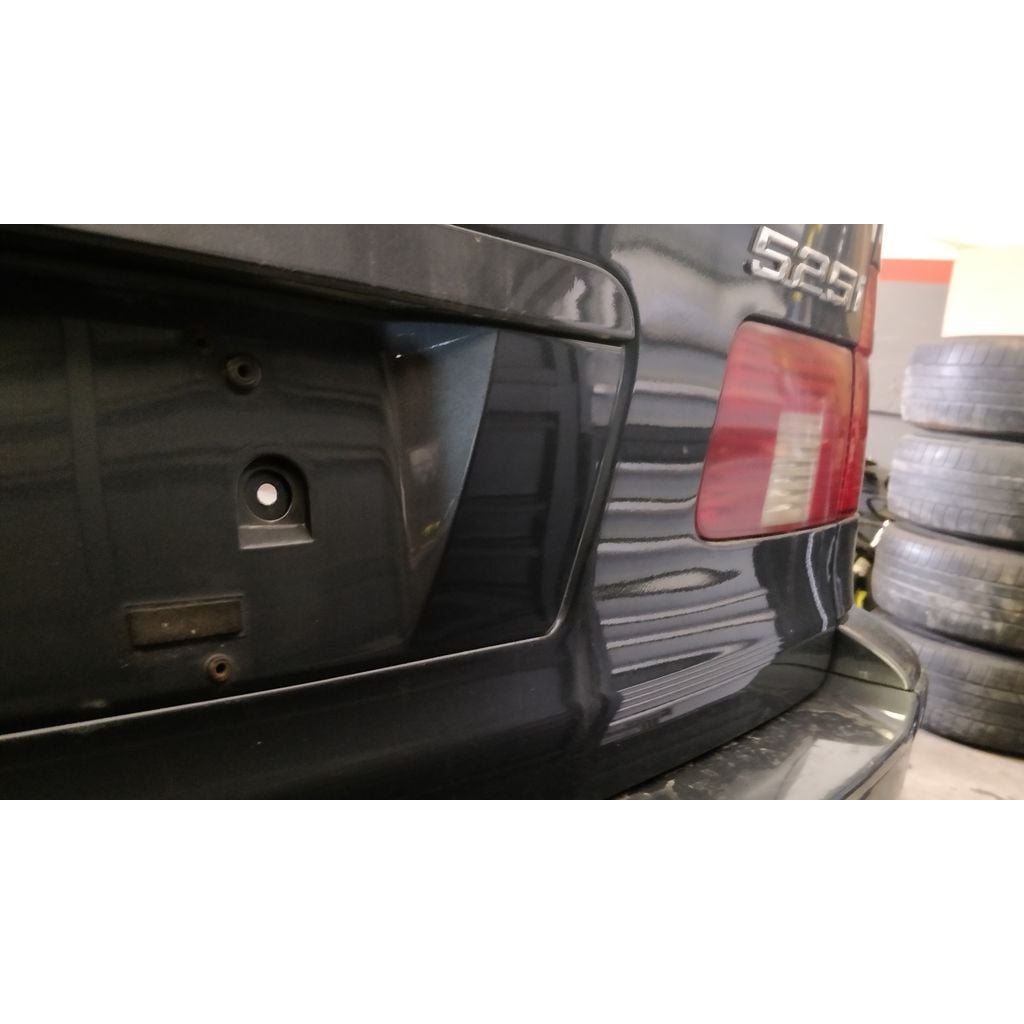

My E39 Touring was missing one of the clips to hold in the plate bracket (plinth). The previous owner had used silicone to hold the panel on.
Unable to live with this I contacted the dealership - who were unable to find the part in their system. Doubting their competence I checked realoem myself and actually couldn't find a part number.
So I turned to Fusion360 and whipped these up.
I've never designed anything before so please bear with me.
I have made two revisions of this thing.
**(bmw_plate_plinthe_v3)**
The first is a copy of the original - fits snug and locks nicely. - It may be a good idea to use a bit of RTV or Butyl Rubber around the hole to keep water out!
**(Nut.stl /Thread.stl)**
The second is a threaded option. Allowing you to fit an M8x1.25 nut on the back.
This option was created for people who may have corrosion around the hole thus making it too big for the snap in option.
Printed these on my CR-10S w/ 99% concentric infill 5 walls and 0.12 layer height @ 35mm/s
Hopefully they can be of use to someone else too.
Cheers.
Apparently fits these models too!
BMW E30 318i M10 1.8L
BMW E30 318i M42 1.8L
BMW E30 318is M42 1.8L
BMW E30 325i M20 2.5L
BMW E30 325is M20 2.5L
BMW E31 840Ci M60 4.0L
BMW E31 840Ci M62 4.4L
BMW E31 850Ci M70 5.0L
BMW E31 850Ci M73 5.4L
BMW E31 850Ci All
BMW E31 850CSi S70 5.6L
BMW E31 850i All
BMW E34 M5 S38 3.5L
BMW E38 740i M60 4.0L
BMW E38 740i M62 4.4L
BMW E38 740iL M60 4.0L
BMW E38 740iL M62 4.4L
BMW E38 750iL M73 5.4L
BMW E39 525i M54 2.5L
BMW E39 528i M52 2.8L
BMW E39 530i M54 3.0L
BMW E39 540i M62 4.4L
Compatible vehicles
- 1996-2004 Bmw 5 Series E39 (Touring)
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | License Plate Bracket Fastener Clip |
|---|---|
| Make | BMW |
| Model | 5 Series |
| Year | 1996 |
| Production | 3D printed to order (FDM) |
| Design files | 4 (STL) |
| Part number | CAT-91690826 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More BMW parts
Browse all BMW replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
