3D-printed replacement lock/unlock rocker button made for the 2005-2010 Jeep Grand Cherokee WK: a simple way to replace a cracked, lost or hard-to-find original part.
About this part

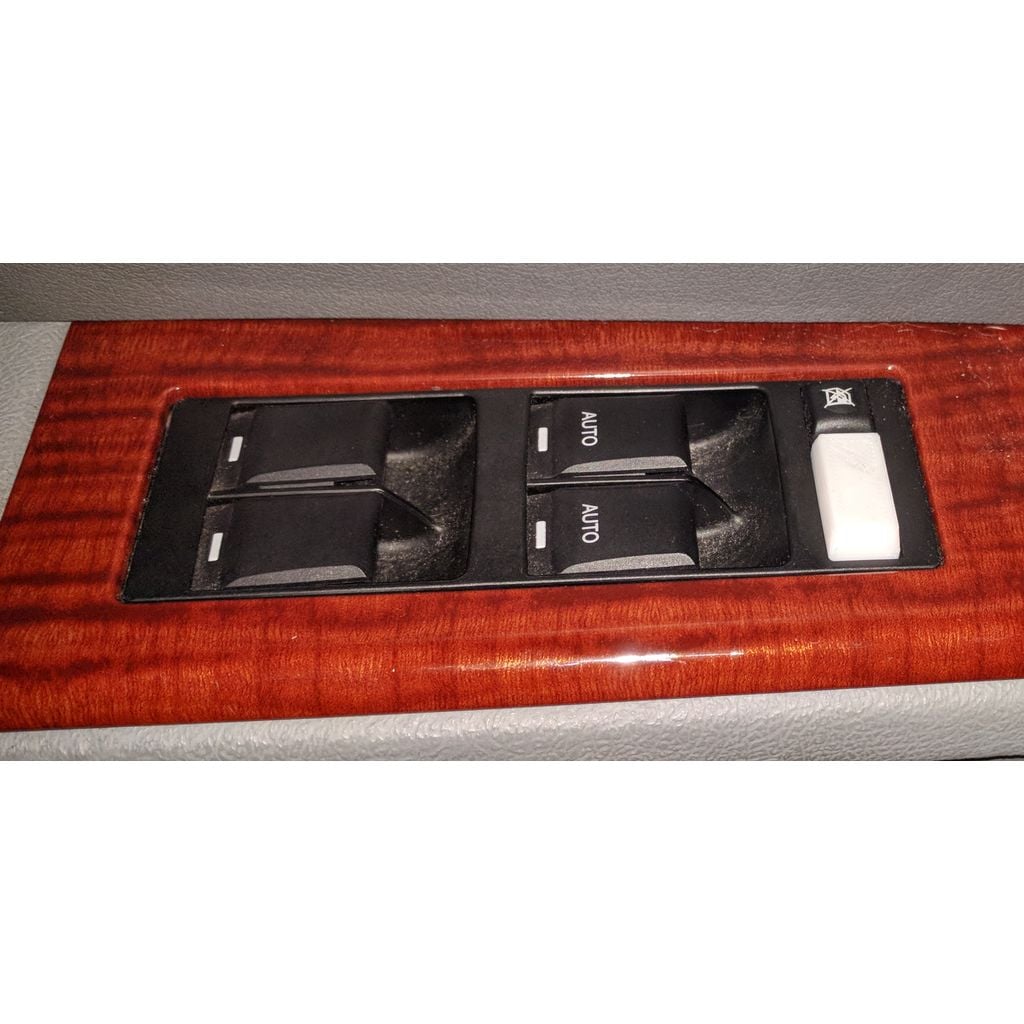

Replacement for the OEM Lock/Unlock button on the driver's side of a WK (2005-2010) Jeep Grand Cherokee. May work for more models than WK, but I only have one to test with. Also, since it's unlabeled, may work for passenger side.
Reverse-engineered from the broken part that shot out at me violently while driving 65 MPH on the highway. This part re-uses the original spring and metal spring cap - the part responsible for the fantastic launch of the failed OEM plastic piece.
I hope someone finds this useful. The openSCAD code is included for anyone interested. I can't promise it's the best formatted code, as I'm just learning openSCAD as of 12 hours ago.
Compatible vehicles
- 2005-2010 Jeep Grand Cherokee WK
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Lock/unlock Rocker Button |
|---|---|
| Make | Jeep |
| Model | Grand Cherokee |
| Year | 2005 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-70c07650 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Jeep parts
Browse all Jeep replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
