Replace a broken or missing lumbar support handle on your 1998-2004 Ford Focus MK1 with this 3D-printed part, produced to order by PartsRemade.
About this part

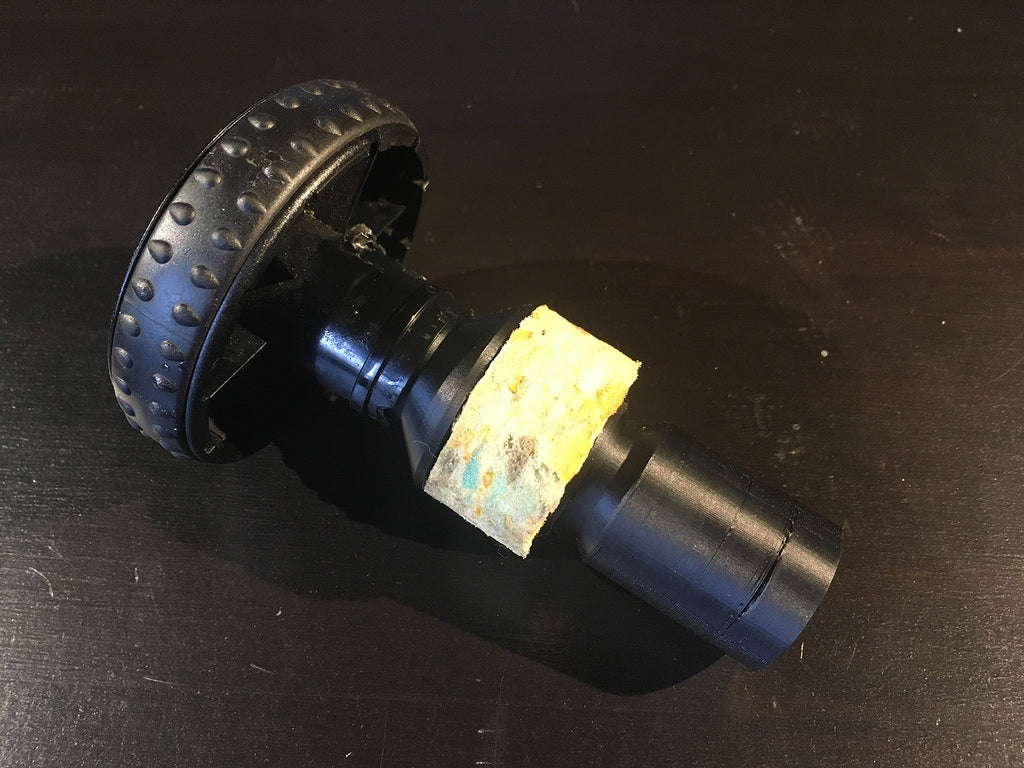

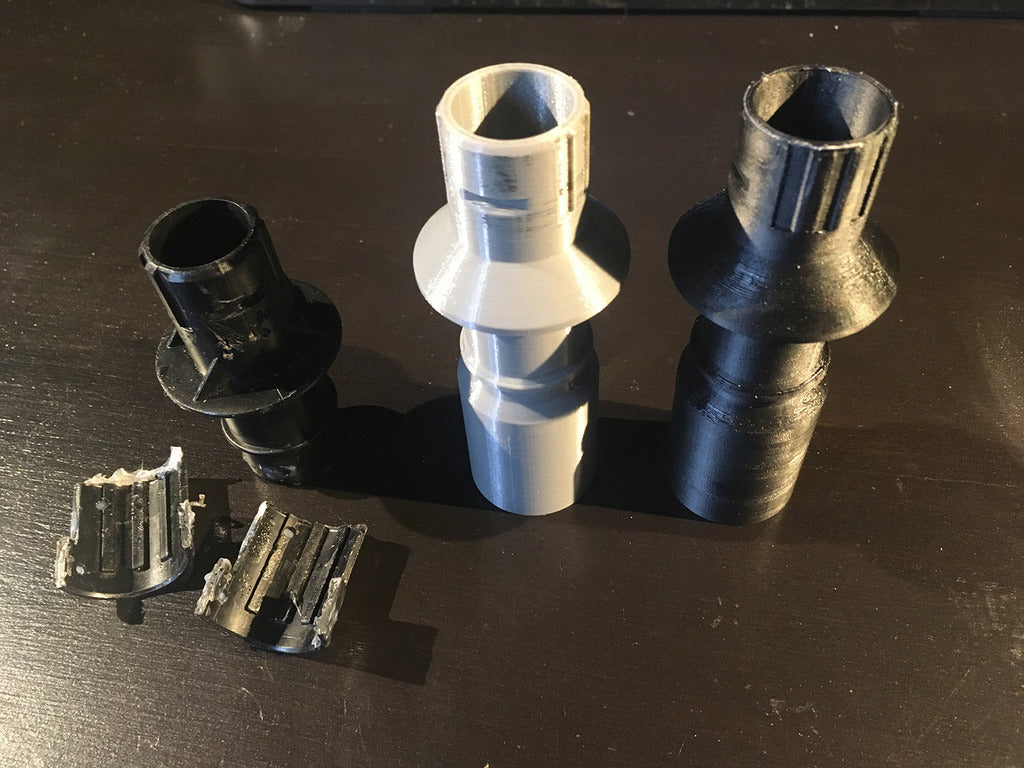

This is the handle that goes in the arm rest of the drivers seat, it couples the knob to the mechanism inside the seat. In my car it was broken so I had to 3D print a new and better one. Tried and tested. I have it in the car since the beginning of 2020. You can see in the photos prototypes out of PLA.
Printing:
Use ABS. Infill should be at least 20% fast honeycomb, but rectilinear works as well. I used black ABS, but the color doesn't matter.
Social media links:
https://www.instagram.com/n33sworkshop/
https://www.youtube.com/c/N33sWorkshop
You can leave a tip to support my work. Thanks
Compatible vehicles
- 1998-2004 Ford Focus MK1
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Lumbar Support Handle |
|---|---|
| Make | Ford |
| Model | Focus |
| Year | 1998 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-11b38aeb |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
