Replace a broken or missing manual transmission scan on your 2003-2012 Mazda Rx-8 with this 3D-printed part, produced to order by PartsRemade.
About this part

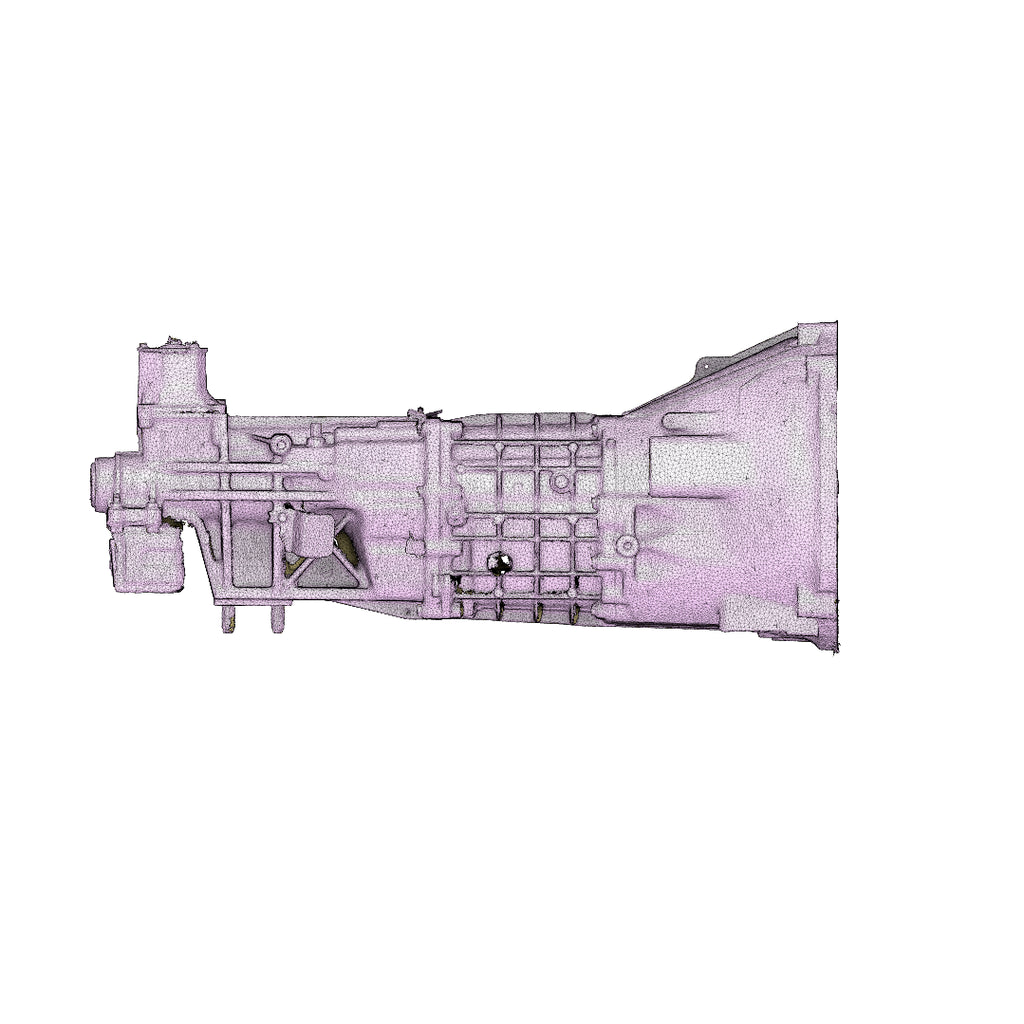

rather quick 3d scan of the Series 1 Rx8 Manual transmission.
input shaft guide/clutch arm pivot point is a separate scan from transmission proper and is included.
clutch arm/throw out bearing are not included in the scan.
- far from perfect but hopefully it helps someone out.
Compatible vehicles
- 2003-2012 Mazda Rx-8
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Manual Transmission Scan |
|---|---|
| Make | Mazda |
| Model | RX-8 |
| Year | 2003 |
| Production | 3D printed to order (FDM) |
| Design files | 2 (OBJ) |
| Part number | CAT-1b69acfd |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Mazda parts
Browse all Mazda replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
