Replace a broken or missing mirror gear on your 2001-2020 Honda Fit with this 3D-printed part, produced to order by PartsRemade.
About this part
I have created my own 3D model because the existing one didn't have enough gap and chamfers for easy landing on the shaft.

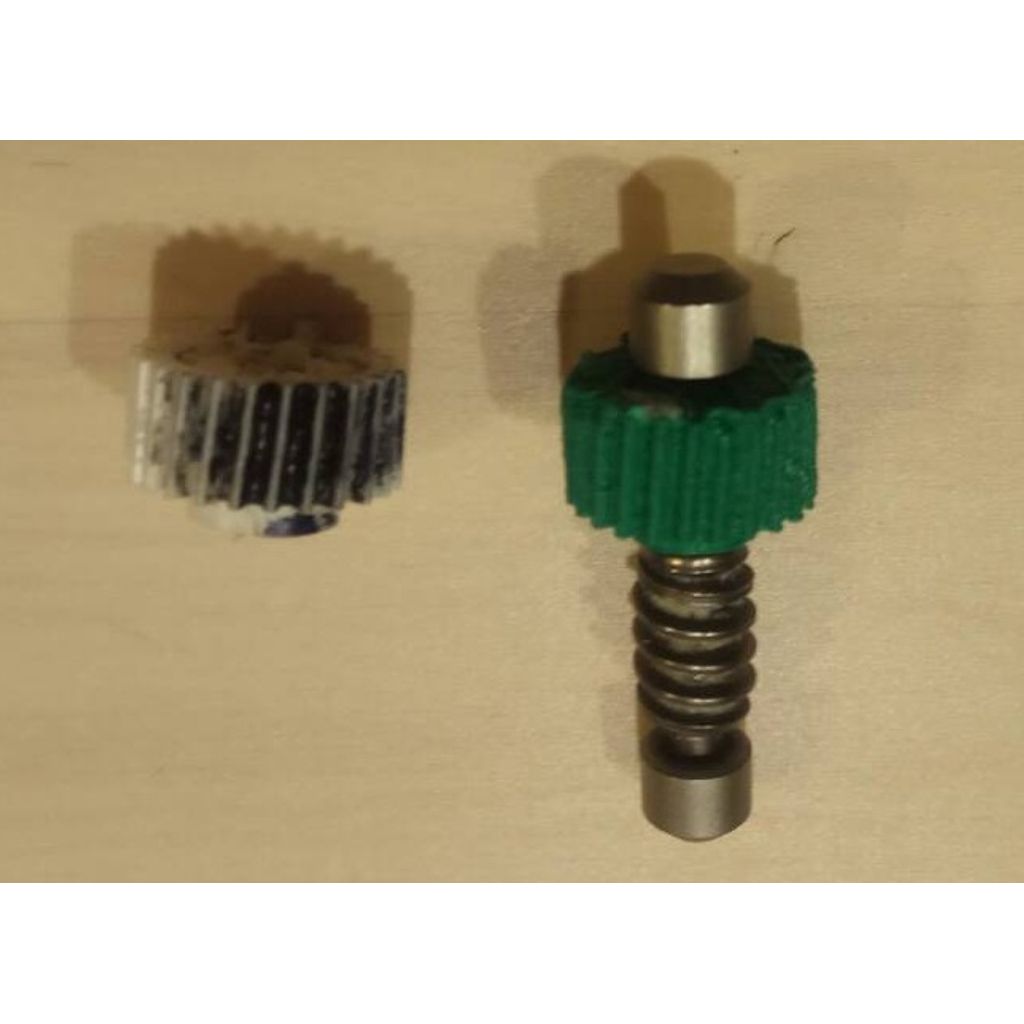

On the picture:
White gear - Original
Green gear - 3D printed
Gear dimensions:
Teeth number Z=24
OD = 13.09 mm
Pitch = 0.5
Helix angle = 7 degrees
Total length 8.2 mm
Teeth length = 6 mm
Hole adjusted size:
ID = 4.02mm ( increased +0.12mm)
Slot width = 3.12 (increased +0.06mm)
Compatible vehicles
- 2001-2020 Honda Fit
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Mirror Gear |
|---|---|
| Make | Honda |
| Model | Fit |
| Year | 2001 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-fb994b0d |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
