Need a replacement number plate light lens for your 2002-2009 Mercedes Clk W209? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part

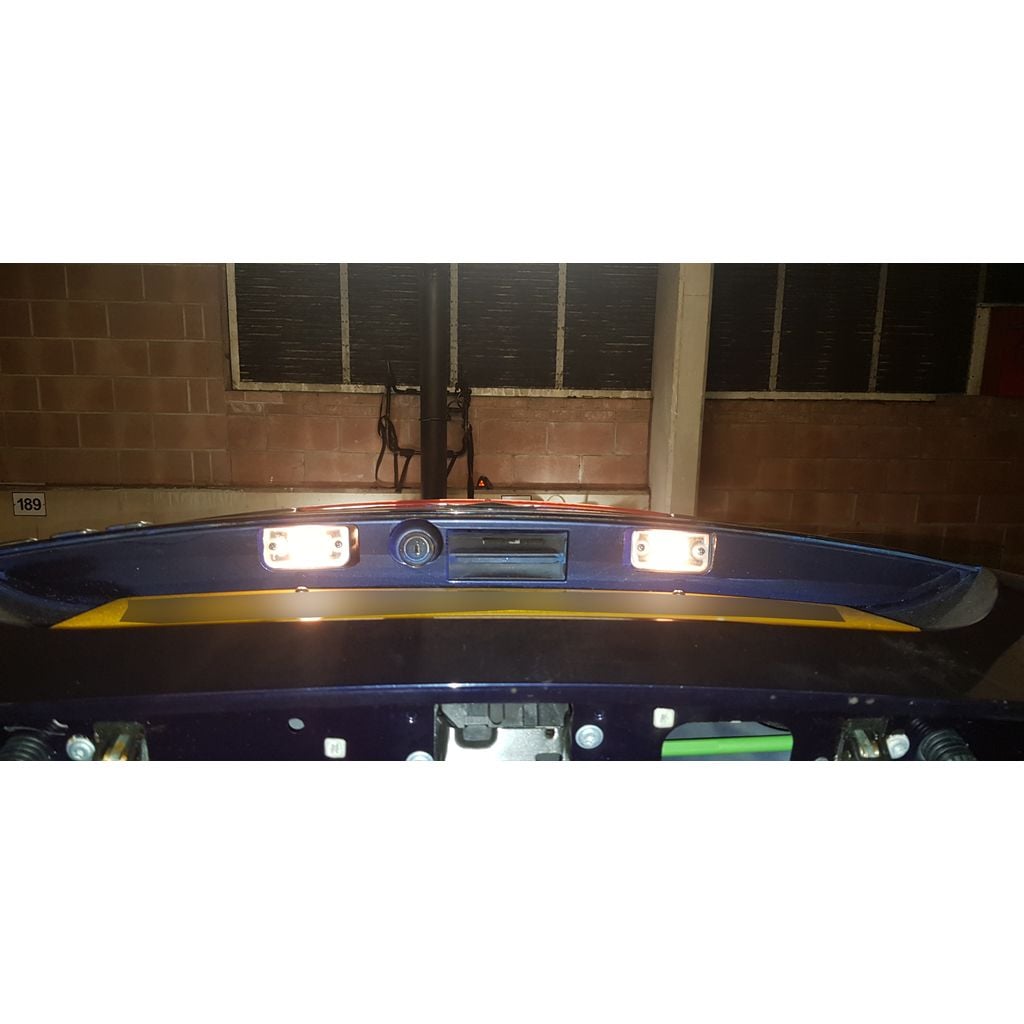

A replacement lens for the number plate lights on the back of the Mercedes CLK W209.
Includes a version with the legs to hold the lamp bulb itself and a version without the legs.
You must of course use a clear filament and PETG may be better than PLA due to it's slight increase in resistance to heat and weather.
I would also advise putting a little bit of silicone sealant around the rim of the lens to prevent water ingress.
I have included bottom sections with a thickness of 0.2mm to 0.8mm, depending on how much light you want to pass through vs how strong the part will be.
I advise 0.2mm or 0.4mm to make sure the light can get through correctly.
Of course you can use the pause at height function in CURA to make these two tone as I have.
Compatible vehicles
- 2002-2009 Mercedes Clk W209
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Number Plate Light Lens |
|---|---|
| Make | Mercedes-Benz |
| Model | CLK |
| Year | 2002 |
| Production | 3D printed to order (FDM) |
| Design files | 8 (STL) |
| Part number | CAT-cf18c96c |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Mercedes-Benz parts
Browse all Mercedes-Benz replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
