Parking/turn Lamp Grommet Clip – 2001 Ford Sport Trac

Replace a broken or missing parking/turn lamp grommet clip on your 2001 Ford Sport Trac with this 3D-printed part, produced to order by PartsRemade.

About this part

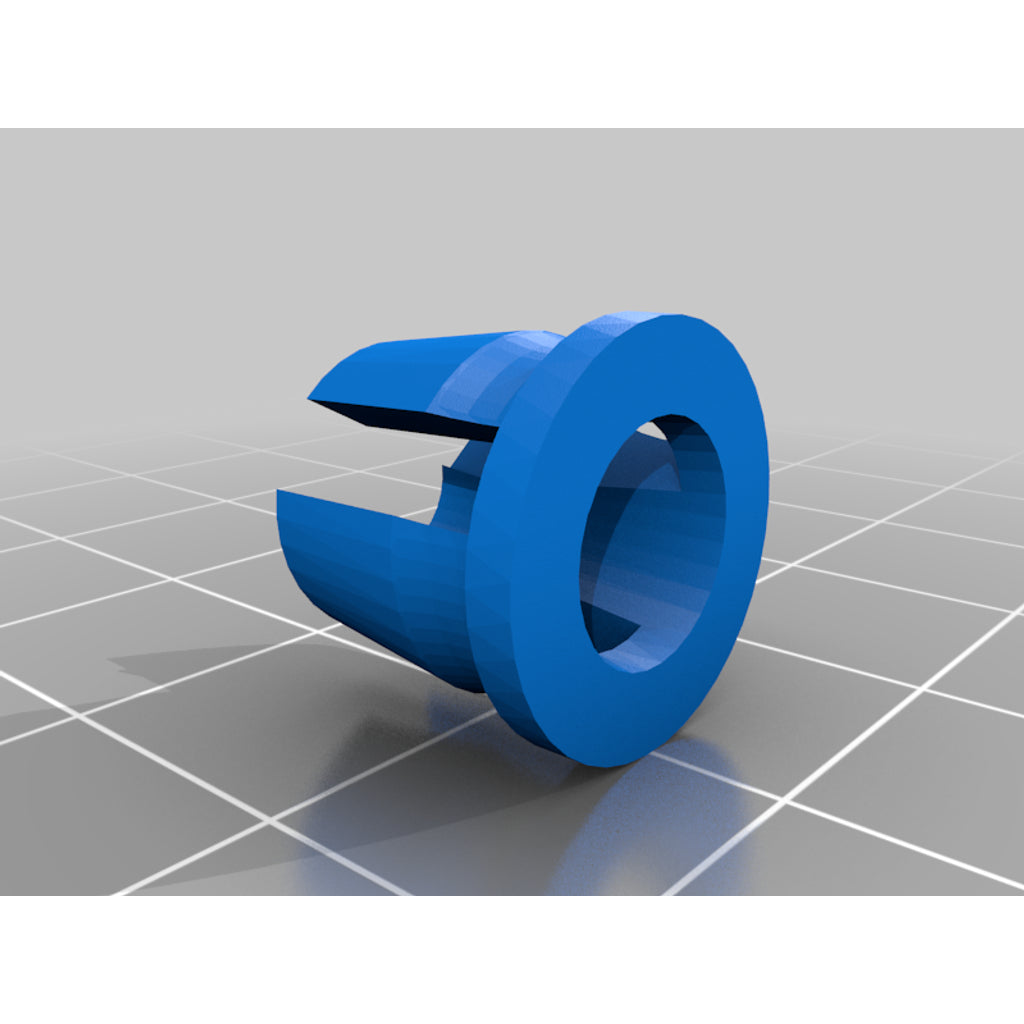

This design is for the little clips that go over your Ford's turning/parking light bulb's locating pins. These grommets then snap into two holes that secure the bottom of the lamp assembly to the chassis.

Essentially, this is the part here: https://www.amazon.com/Ford-Park-Signal-Grommets-Diameter/dp/B004E6A1XW

I needed two of these to fix my 2001 Sport Trac, and rather than pay for them and shipping, I designed them myself. Hopefully they are of use to someone else.

I printed these out at 1:1 scale, and they fit just fine. You may need to adjust the scale depending on your printer. Head diameter (the flat face you should be printing parallel to the bed) is 13mm, if that helps.

I have only tested this on my 2001 Sport Trac, but it should work for most Ford vehicles. I am not a car person, so please let me know if I am wrong! From the part information page:
"Replaces Ford: N811169S,W705550-S300 F250 - F550 Trucks 1999 -; Toyota: 90075-10801,90189-06111"

Compatible vehicles

• 2001 Ford Sport Trac

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
