Power Antenna Assembly – 1989-1997 Mazda Mx-5 Miata NA

3D-printed replacement power antenna assembly made for the 1989-1997 Mazda Mx-5 Miata NA: a simple way to replace a cracked, lost or hard-to-find original part.

About this part

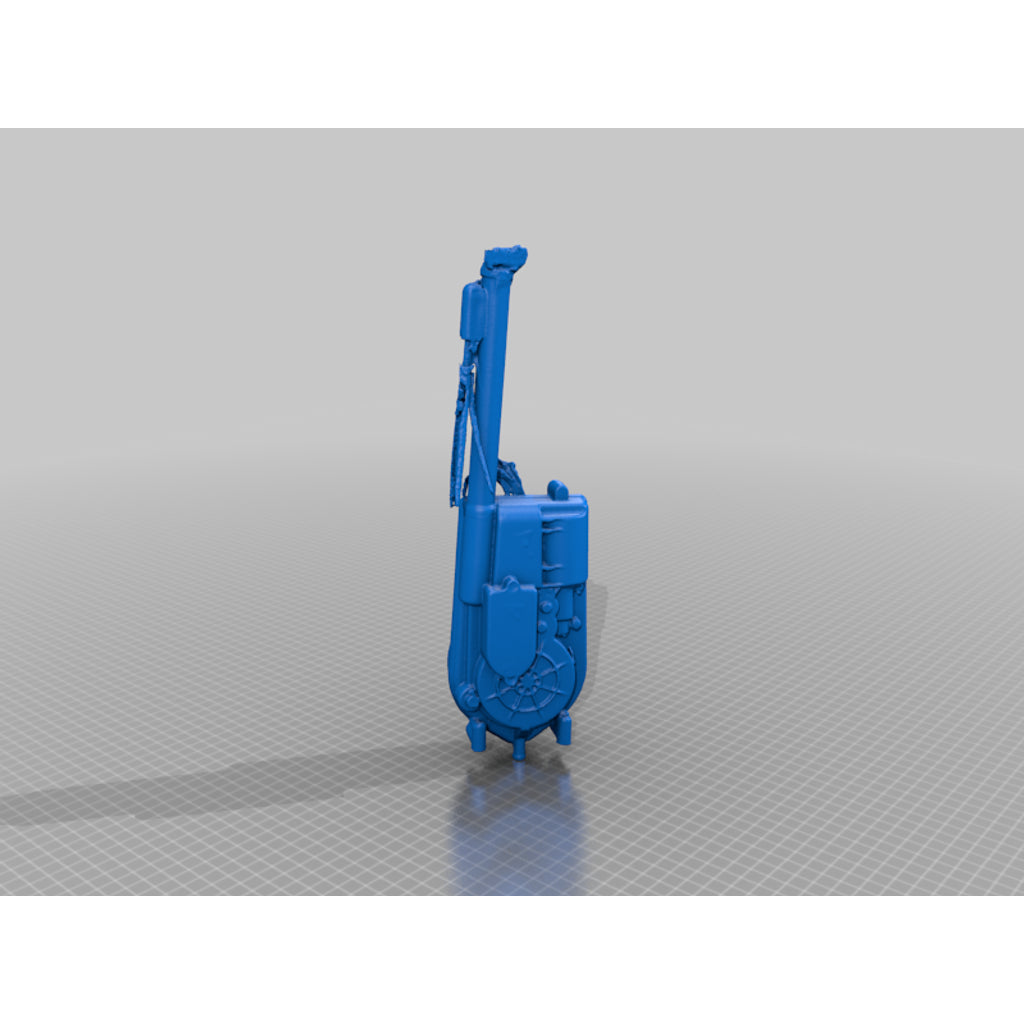

Here is the NA Miata Power Antenna from a 96 Miata Factory Part.

Dims are mm to import.

This model could assist you in fabricating a replacement bracket or power antenna for the Mazda Miata NA model.

Included is a Fusion360 (best CAD program ever!) file...

Consider sharing your work if you print a replacement bracket that fits with the common aftermarket non vehicle specific power antenna modules, of which I've seen 2 common models. I may also scan and post one of these power antenna modules, which I need for this project anyway...

Also needed are the wiring diagrams for the power antenna module. I'm going to assume that it's just a simple relay setup for up, down, and off, and perhaps an internal switch to tell the motor when to turn off when fully retracted, etc.. So, if you know the wiring functions / harness pinouts, then post in the comments, otherwise, my voltmeter can probably figure it out...

I'm going to assume that any aftermarket antenna will also need to be retrofitted with this relay, unless they already have them built in, for example...
