Power Antenna Drain Fitting – 1970-1989 Mercedes Multi-model
Power Antenna Drain Fitting – 1970-1989 Mercedes Multi-model
Replace a broken or missing power antenna drain fitting on your 1970-1989 Mercedes Multi-model with this 3D-printed part, produced to order by PartsRemade.
About this part
<h2>Details</h2>

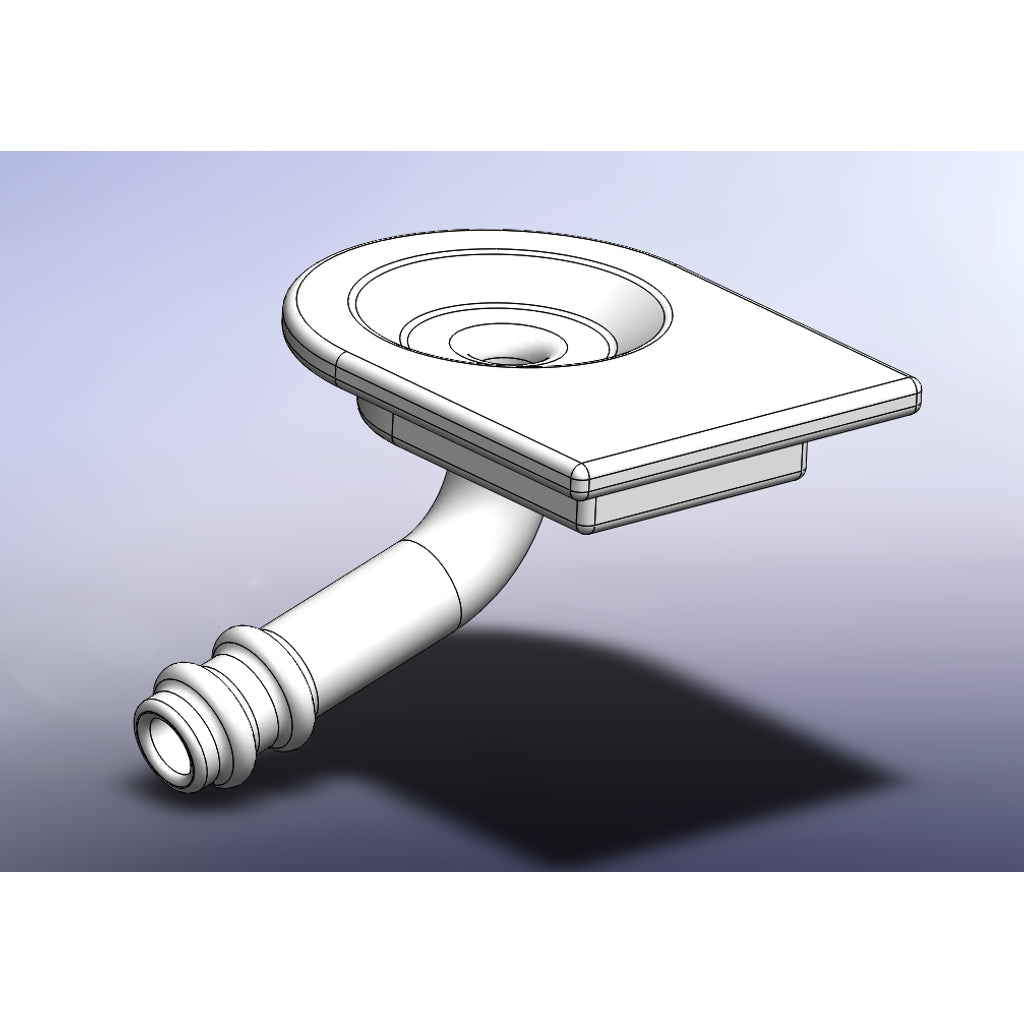

<p>This is the drain fitting for Hirschmann power antennas used in European cars from the 1970s-80s (Mercedes, BMW, etc). It is used to funnel water that may seep past the radio antenna out of the car down a drain tube. The outer diameter of the tube fitting is 4mm which is made to work with the original drain tube. If the original drain tube is missing, use any tube with an inner diameter of 4mm. </p>
<h2>Installation</h2>
<p>Follow pictures for installation. The part fits snugly at the bottom of the power antenna housing. Apply a layer of silicone around the lip for a watertight seal.</p>
<h2>Printing Instructions</h2>
<p>DO NOT PRINT WITH PLA! Water may, over time, cause the PLA plastic to deteriorate. ABS or PETG is recommended for this part. Print with the tube fitting parallel with the build plate, as shown in the photos. Do NOT use supports inside the tube fitting. Tree supports are recommended (touching build plate only).</p>
<h2>Application</h2>
<p>This part will fit the following cars:</p>
<ul>
<li>Mercedes r107 (450 SL/SLC).</li>
<li>Mercedes w123.</li>
<li>Mercedes w116.</li>
<li>Any car with the Hirschmann model 6000H 485 power antenna</li>
</ul>
Compatible vehicles
- 1970-1989 Mercedes Multi-model
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Power Antenna Drain Fitting |
|---|---|
| Make | Mercedes-Benz |
| Model | Multi-Model |
| Year | 1970 |
| Production | 3D printed to order (FDM) |
| Design files | 3 (STEP, STL) |
| Part number | CAT-f6705eb9 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Mercedes-Benz parts
Browse all Mercedes-Benz replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
