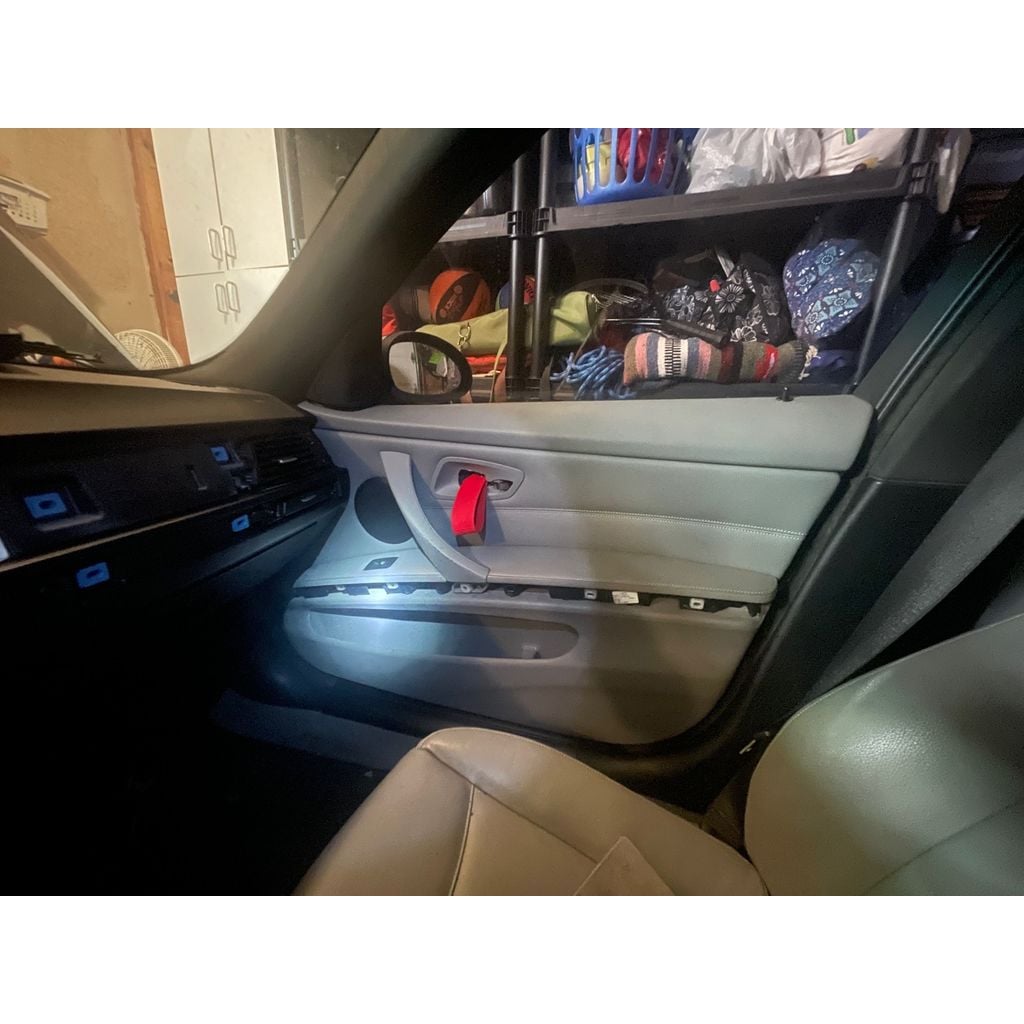

Pull Strap Conversion Bracket – 2005-2011 Bmw 3 Series E90

Need a replacement pull strap conversion bracket for your 2005-2011 Bmw 3 Series E90? This 3D-printed part is made to order to replace a broken, worn or missing original piece.

About this part

YOU HAVE TO CUT OUT A HOLE IN YOUR STOCK HANDLE CUPS FOR THIS TO WORK PROPERLY. There simply is not enough room in the cup for a strap to comfortably sit. Stock pin works, same with the cable and attachment. You need to keep the creamy-white piece and it still needs to be able to click in and stay there. I have attached how I cut mine out using a Dremel and it works just fine. Has a cutout for an M4 hex nut and angles to make sure it doesn't contact the cup, but I attached an editable fusion 360 document if you want to change it at all, though I should mention the component named "outside" does not fit the stock handle cup.

I paired with these:
Nylon webbing of some kind OR whatever strap of choice
"Grommet eyelet kit" - makes a clean hole for bolt to go through
Assorted low range M bolt and nut kit - got mine from microcenter and that's what I designed this for (Inland Bolt Set 330pc - $4)

Compatible vehicles

• 2005-2011 Bmw 3 Series E90

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More BMW parts

Browse all BMW replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
