Quarter Window Sunshade Retainer – 1995-2004 Bmw 5 Series E39

Need a replacement quarter window sunshade retainer for your 1995-2004 Bmw 5 Series E39? This 3D-printed part is made to order to replace a broken, worn or missing original piece.

About this part

Like many E39s in this day and age, my quarter window sunshades did not retract and flopped around. This is due to the plastic piece that holds the mechanism in place breaking. My design takes the place of the old broken plastic.
Step 1: remove sunshade from quarter window
Step 2: dremel out remains of broken plastic around the rectangular rod
Step 3: tension the sun shade by rotating the rectangular rod to pull it in

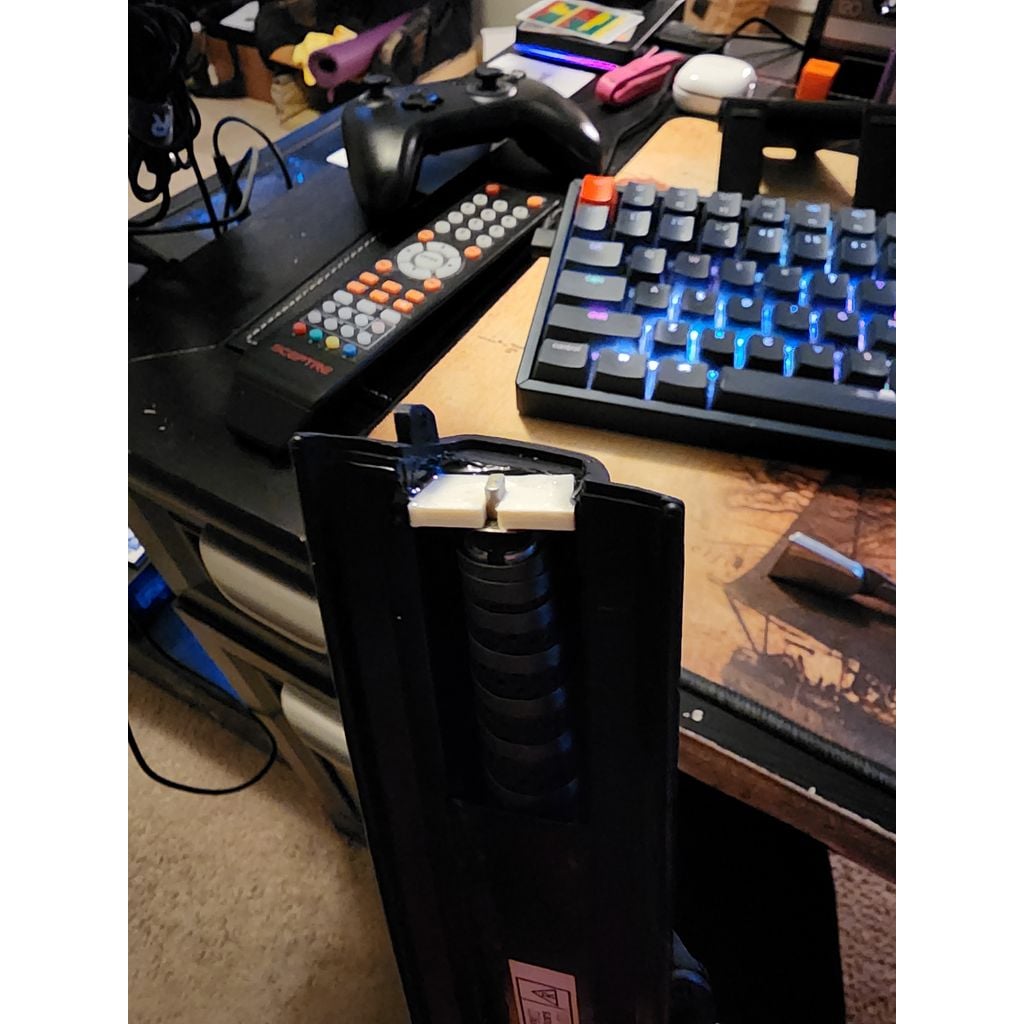

Step 4: insert the printed piece around the rectangular rod and into the sunshade assemble and glue it in
Step 5: Flex on your other E39 friends with bufu broken sunshades either flopping around or held in place with paperclips

Could have been done a bit better, maybe to fill in the entire area but this worked great for me. Feel free to remix/ improve/ whatever.

Compatible vehicles

• 1995-2004 Bmw 5 Series E39

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More BMW parts

Browse all BMW replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
