3D-printed replacement rainwater drain extension made for the 2020 Ford Transit: a simple way to replace a cracked, lost or hard-to-find original part.
About this part
On my 2020 FORD Transit V363 model, the rainwater drain in the engine compartment is too short. Therefore, water running down the windshield may not be able to drain through the fender but instead runs into the engine compartment and damages electrical wiring through corrosion.

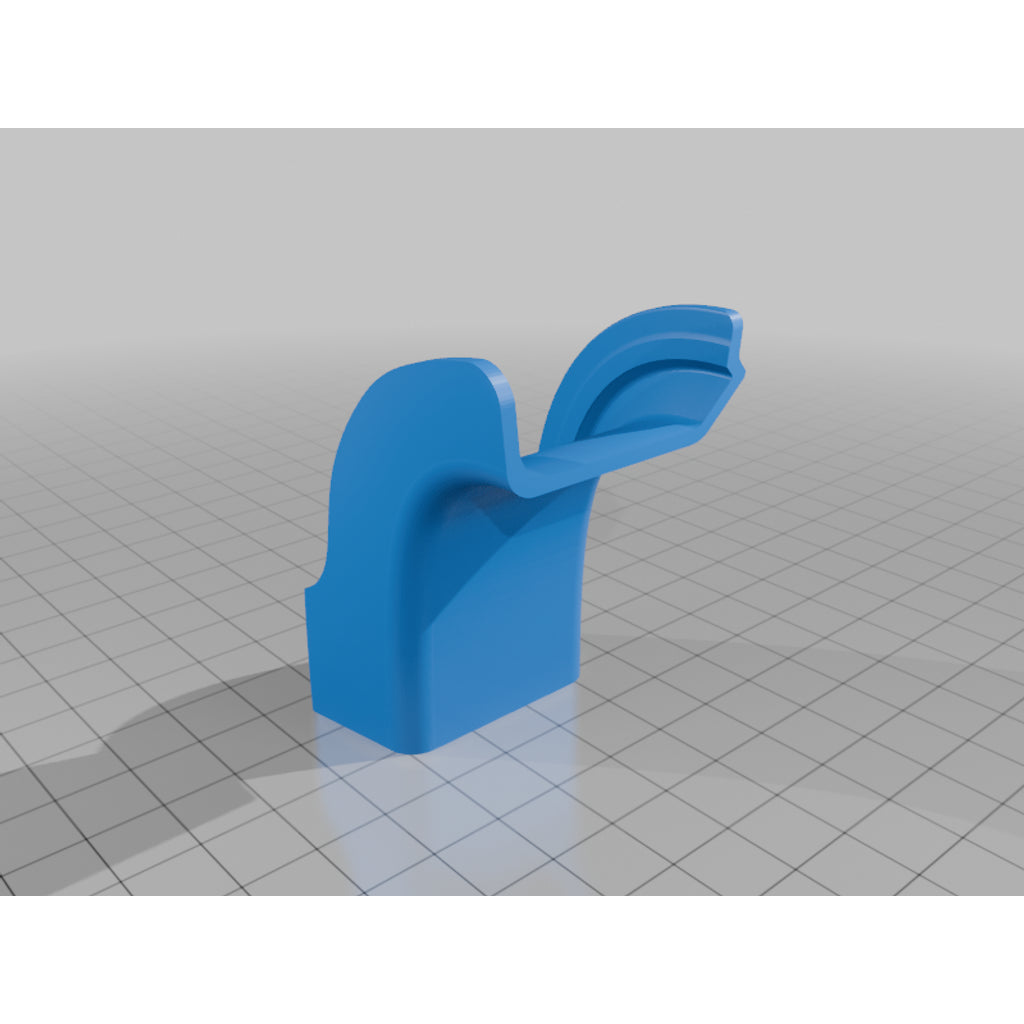

I therefore designed an extension for the rainwater drain. It simply clips on. To attach it, the drain can be pulled downwards.
The photos show the before and after situation.
I printed it with PETG at 235°/80° with raft and tree support.
Compatible vehicles
- 2020 Ford Transit
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Rainwater Drain Extension |
|---|---|
| Make | Ford |
| Model | Transit |
| Year | 2020 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-7a2435c7 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
