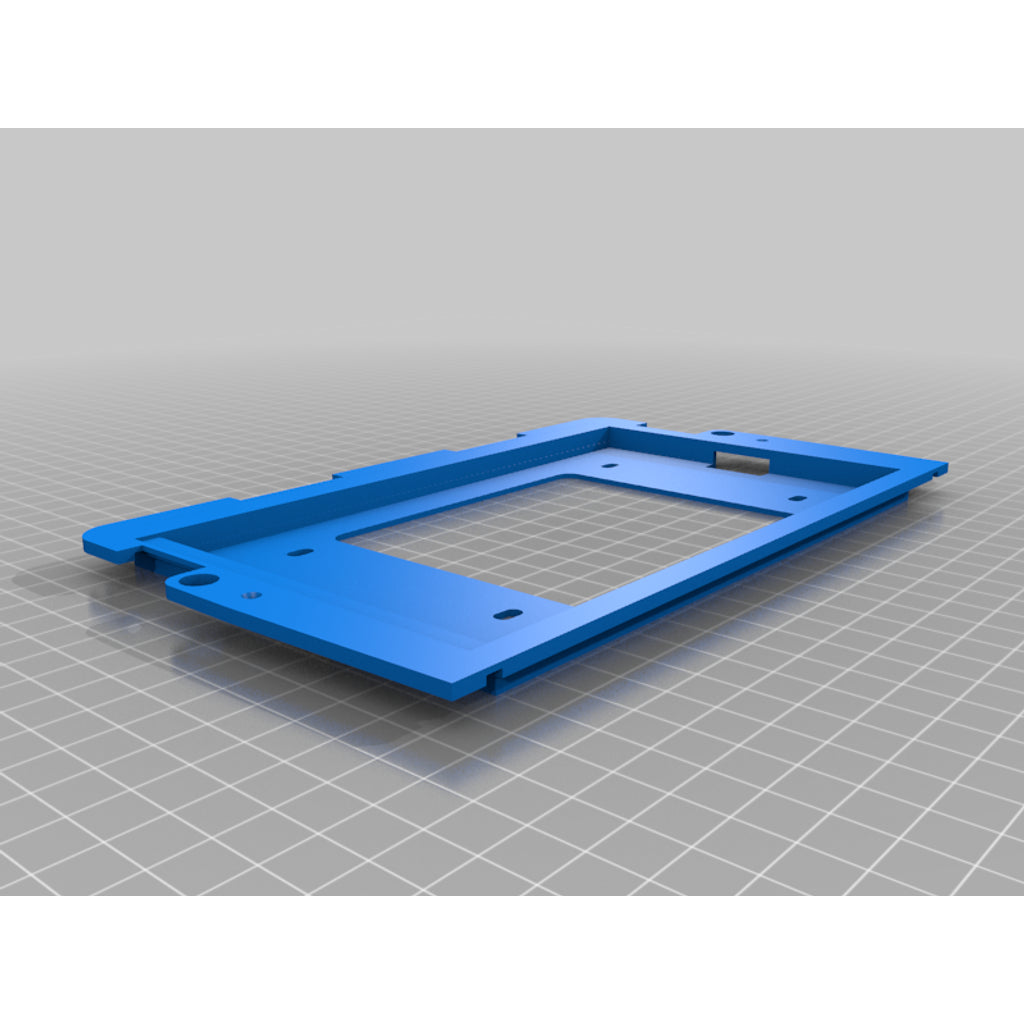

3D-printed raspberry pi 7 inch display mount for the 1999-2005 Mazda Mx-5 Miata NB (Miata), made to order as an affordable alternative to a discontinued or expensive original part.
About this part
This model was built in TinkerCAD, it was my first project so it is by no means perfect, but it's good enough for my purposes. The mounting holes may not be in the right spot. I ended up not using them, and currently my RPI display is held in just with the pressure of the radio surround. It's held up to several autocross events with no movement.
Should fit any 1999-2005 Mazda Miata. The Raspberry Pi 4 (3 should also fit) mounts to the official 7 inch touchscreen display. The display mounts to the mount.
Test prints were done in PLA, but I would use PETG or ABS for a final print, as it will be more suited to the high temperatures it will see inside a vehicle.
Compatible vehicles
- 1999-2005 Mazda Mx-5 Miata NB (Miata)
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Raspberry Pi 7 Inch Display Mount |
|---|---|
| Make | Mazda |
| Model | MX-5 Miata |
| Year | 1999 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-575cd570 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
