About this part
As of 11/29/23 removal of the 2023 Ford Super Duty tailgate disables the entire camera system. This mount allows for the installation of a tailgate camera p/n PJ7Z-19G490-B at the license plate. Cables can be purchased on Amazon (search "Fakra Z Female to Female Vehicle Antenna Extension Cable").

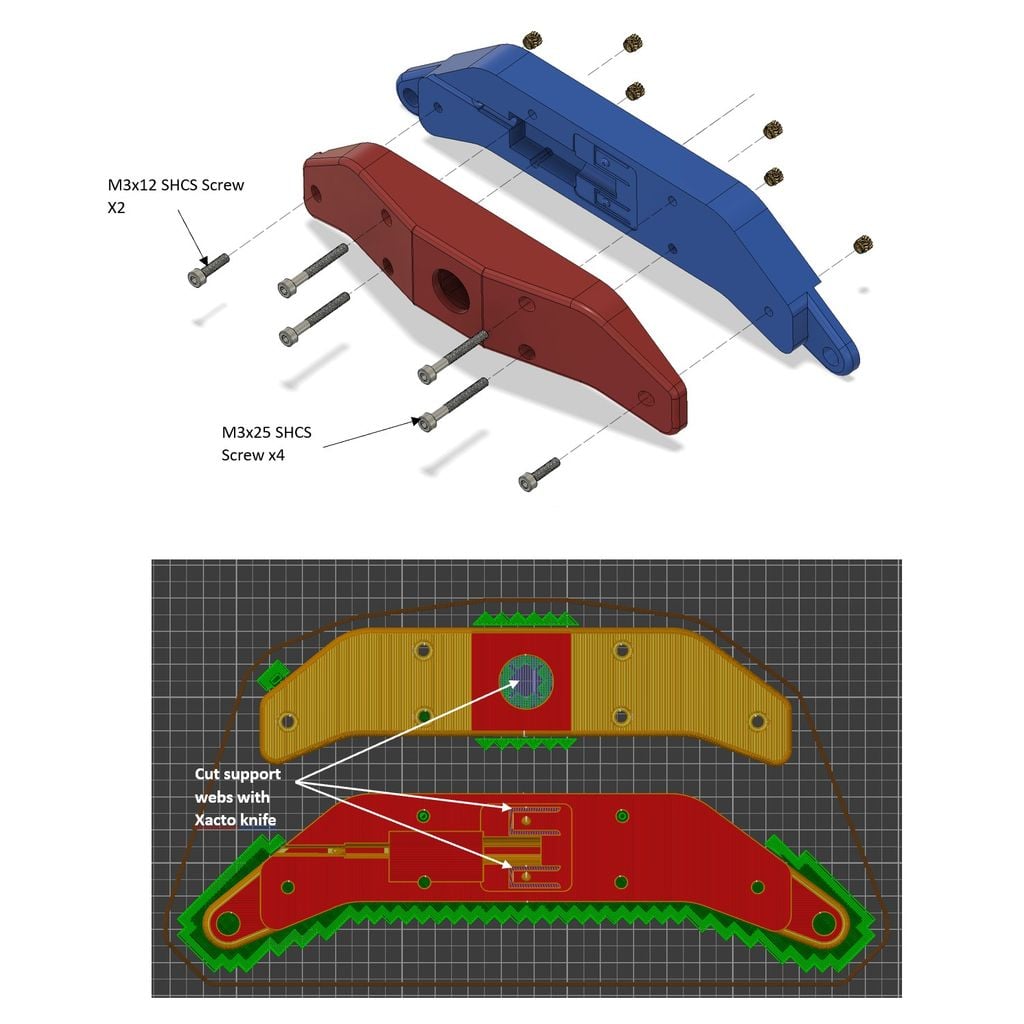

This design requires (6) M3 x 4mm x 5mm heatset inserts like this
( https://www.amazon.com/gp/product/B09MCW7ZN5/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1 ) and (2) 3mm X 12mm long and (4) 3mm X 25mm long socket head cap screws.
_
It should be printed with supports in the orientation shown in the Camera_Mnt_Assy.jpg file.
ABS plastic printed at 0.2mm layer height is recommended.
Compatible vehicles
- 2023 Ford Super Duty
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Rear Camera License Plate Mount |
|---|---|
| Make | Ford |
| Model | Super Duty |
| Year | 2023 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 2 (STL) |
| Part number | CAT-eab6186b |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
