Rear Cargo Cover Hinge Bracket – 2012 Ford Focus
Rear Cargo Cover Hinge Bracket – 2012 Ford Focus
Replace a broken or missing rear cargo cover hinge bracket on your 2012 Ford Focus with this 3D-printed part, produced to order by PartsRemade.
About this part

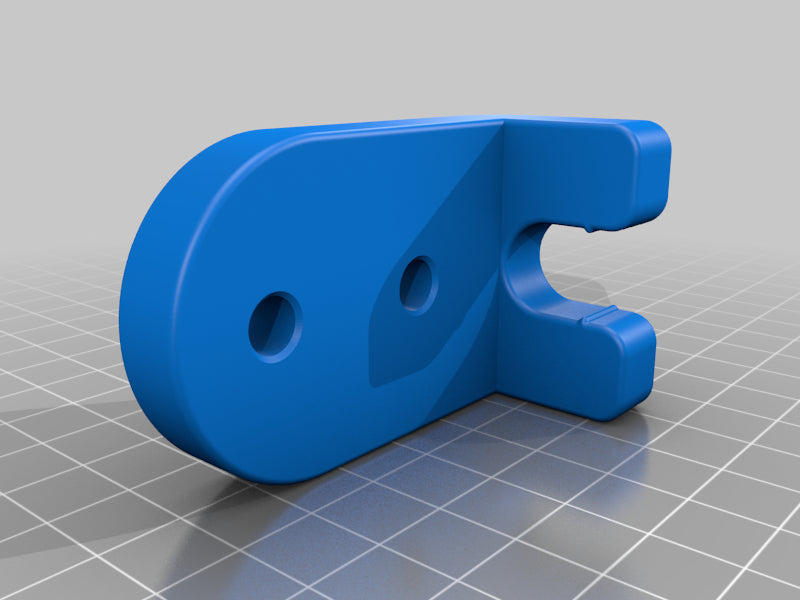

This is a simple hinge for the parcel shelf for a 2012 Ford Focus (MK3) or Ford Fiesta. The original bracket often brakes, so did mine. The cardboard-like material was so damaged, that i had to make a completely other way of connecting the hinge and the parcel shelf.

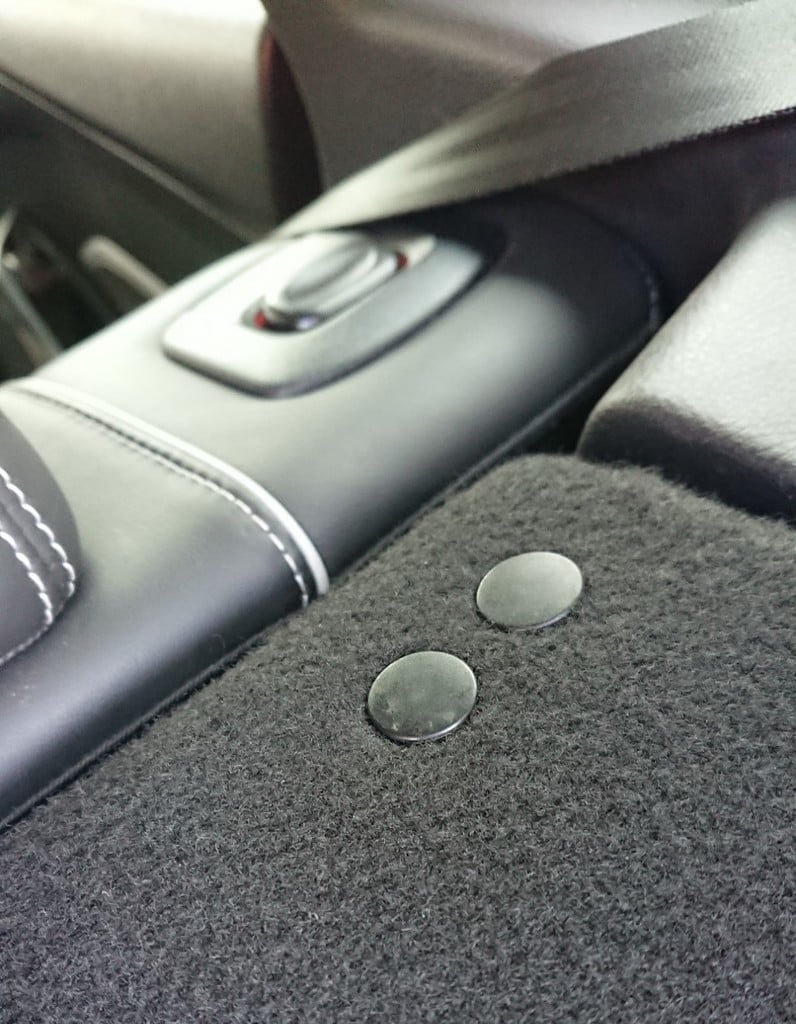

This bracket is fixed with four (two for each side) plastiv rivets (bumper fastener/fender clips/etc..) for 6mm holes. I used the push pin version but others should also work. If you dont have any, ask your local car mechanic shop for them. If you dont mind the look, you can also use screws.

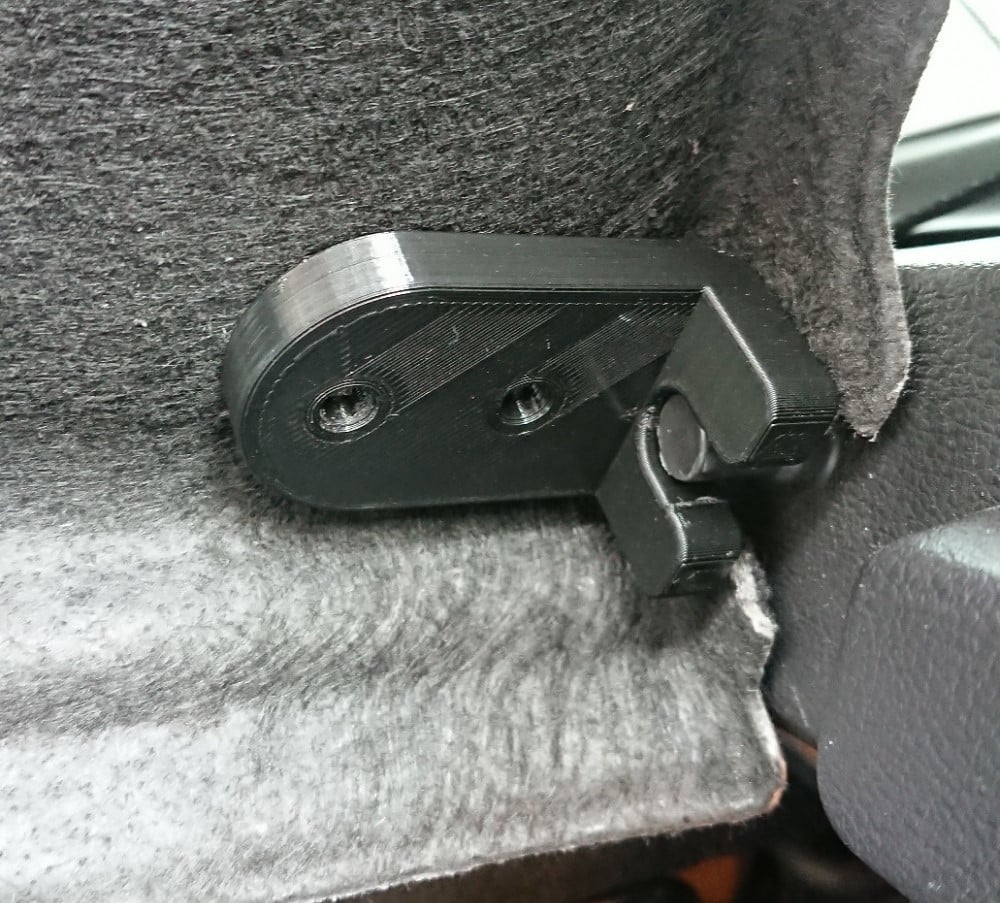

Place the printed hinge in the middle of the cut-out and as far to the side as possible. Then drill directly the 6mm holes through the parcel shelf and fix the printed part with the clips.
Compatible vehicles
- 2012 Ford Focus
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Rear Cargo Cover Hinge Bracket |
|---|---|
| Make | Ford |
| Model | Focus |
| Year | 2012 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-61ca5401 |
Print settings
Printer: Anet A8
Rafts: No Supports: No Resolution: 0,2 Infill: 20 Filament: Material4Print PLA Black
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Ford parts
Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
