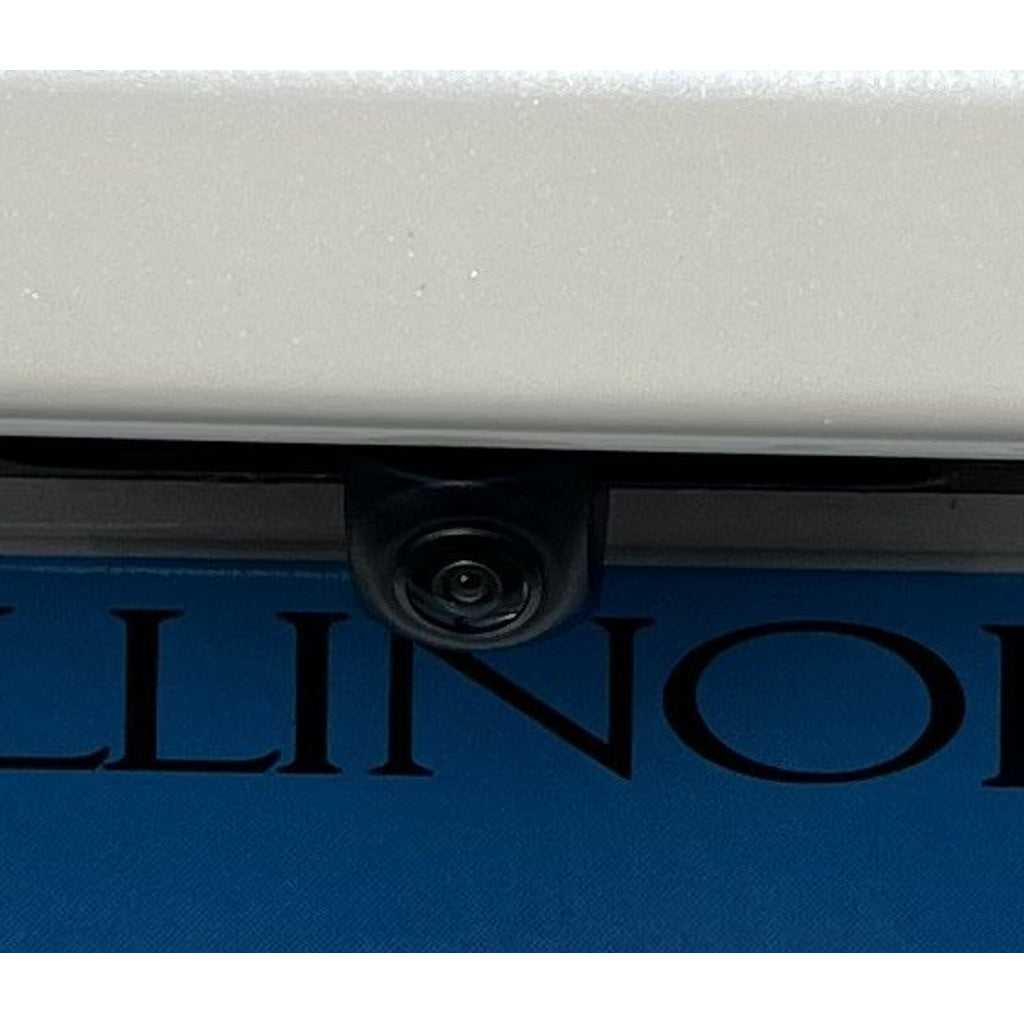

Rearview Camera Bracket – 2011-2016 Honda Cr-z
Rearview Camera Bracket – 2011-2016 Honda Cr-z
3D-printed replacement rearview camera bracket made for the 2011-2016 Honda Cr-z: a simple way to replace a cracked, lost or hard-to-find original part.
About this part
(Model has been updated as of 04/17/2026. I've added an extra feature to help the camera face straight backwards. All previous suggestions are still valid.)
(Model has been updated as of 8/17/25. Print on the rear flat surface. The model will be slanted, yet requiring less support and resulting in a higher durability. I have added small ribs next to the camera to further increase durability. )
Default is '30D'. 30 Degrees.
Print with 5 walls, increase that if raising to a steeper degree. 40 degrees requires 7 walls. Print with hybrid tree supports, painting support on the screw holes on the lower face. Supports on the pop-clip holes is entirely optional. Near-zero cleanup work required.
Print on the flat back surface. All other orientations are inferior.
This is a copied version of the OEM rearview camera bracket for the CR-Z. Minor changes made to allow for easier printing.
I intend for this to be used with a 24mmx24mmx30mm style camera. My camera was approximately 30mm long (T'eyes) however, shorter cameras may still work. Mounting is utilizing the two screws. I think this may be a universal mounting style adopted by most rearview cameras, including the OEM rearview camera. All CR-Z bumpers have the cutout to use it. Use a pop clip to install. The latest model has an alignment tooth (2026:"and a rounded feature") that actually clicks into place in the non-popclip hole. It works quite well.
Provide feedback! I will take your feedback to modify the model.
Compatible vehicles
- 2011-2016 Honda Cr-z
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Rearview Camera Bracket |
|---|---|
| Make | Honda |
| Model | CR-Z |
| Year | 2011 |
| Production | 3D printed to order (FDM) |
| Design files | 11 (STL) |
| Part number | CAT-273a5ab9 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Honda parts
Browse all Honda replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
