Roll Bar Gear Hook – 2007-2018 Jeep Wrangler JK

3D-printed replacement roll bar gear hook made for the 2007-2018 Jeep Wrangler JK: a simple way to replace a cracked, lost or hard-to-find original part.

About this part

I previously made a J hook for metal detectors for the vertical part of the roll bar. They've been working great. https://www.thingiverse.com/thing:2355327

I used some bungees for hanging stuff from the horizontal top bar but it was difficult to hook and unhook items. After a series of 3 creation failures (PETG is very flexible) I ended up incorporating hook loop strips into this solution and is now working fine for getting items off the floor (more dog room). Easy to hook a strap for travel and unhook for use without needing a full reach in to manipulate both the hook and handle.

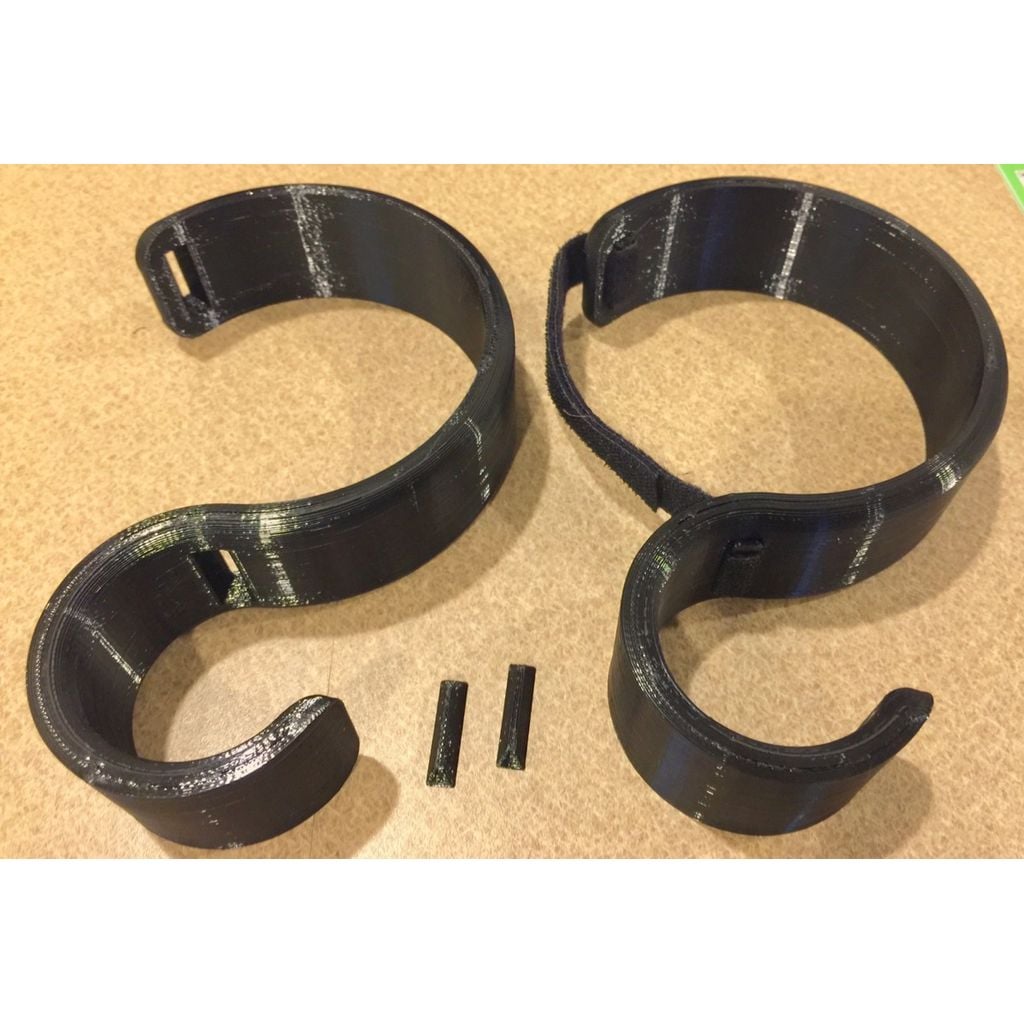

The canvas bag pictured is quite heavy. It destroyed the first version and didn't last long with a double thick version but so far so good with this thicker wider velcro strapped snug version. The little V plug helps keep the hook & loop straps securely mounted in the S-Hook body.

I used 3/4" double sided velcro/hook & loop strapping (~20mm). The V holds in place best if the rough/loop side of the strap is in contact with the V surfaces e.g. smoother side out. Once snugged into place for awhile the V plugs hold the strap in place for repeated open/close efforts.

Compatible vehicles

• 2007-2018 Jeep Wrangler JK

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Jeep parts

Browse all Jeep replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
