Roof Rack Hole Plug – 2005 Mazda 3 BK
Roof Rack Hole Plug – 2005 Mazda 3 BK
3D-printed roof rack hole plug for the 2005 Mazda 3 BK, made to order as an affordable alternative to a discontinued or expensive original part.
About this part

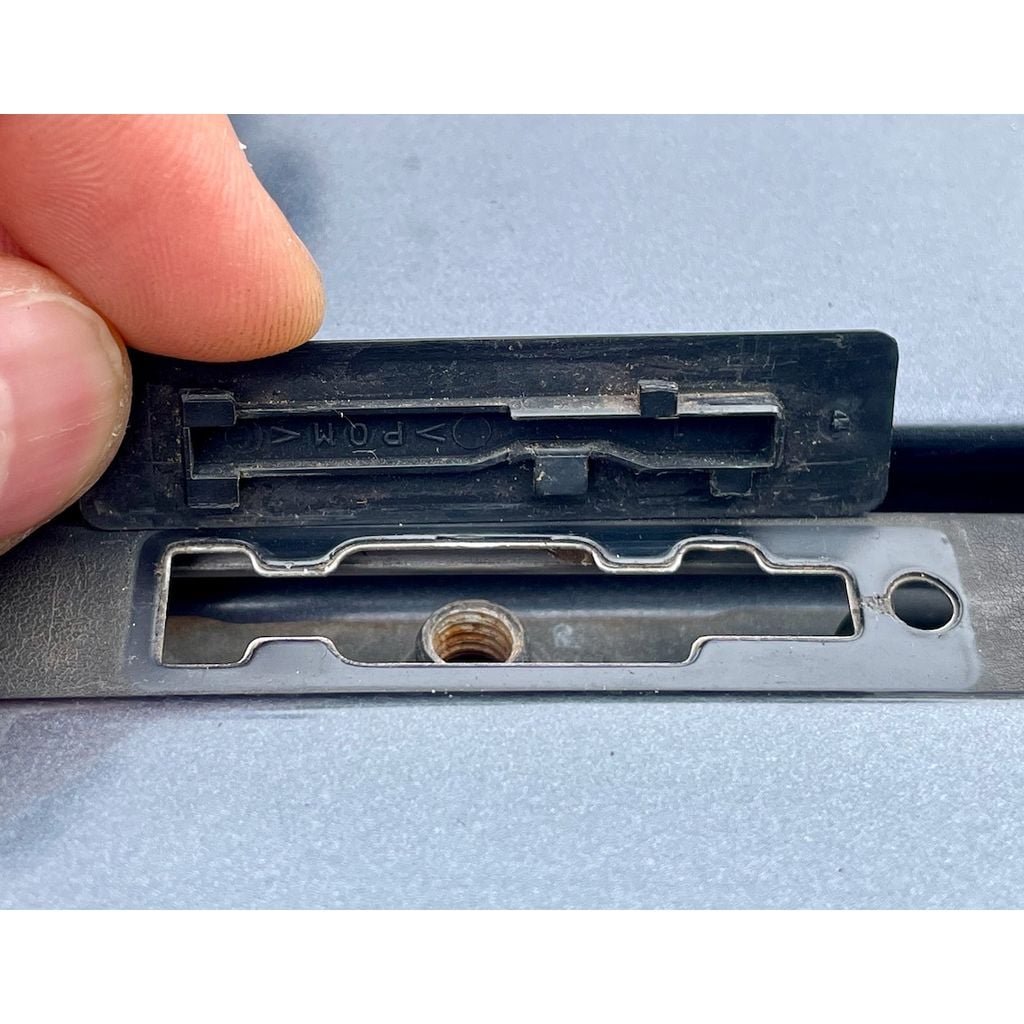

I lost the decorative plugs that cover the holes where roof racks attach to my 2005 BK Mazda 3. I modelled the one OEM plug I hadn't lost and 3D printed it in FDM on a Markforge in carbon fibre Onyx. I'm sure it would work with other materials but try to make it UV stabalised in some way. Perhaps Painting it would do the trick? They fit well if not a little tight. They don’t have an arrow on the top surface like on the OEM version. They print well upside down with the large flat surface on the bed platform.
Compatible vehicles
- 2005 Mazda 3 BK
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Roof Rack Hole Plug |
|---|---|
| Make | Mazda |
| Model | 3 |
| Year | 2005 |
| Production | 3D printed to order (FDM) |
| Design files | 3 (STEP, STL) |
| Part number | CAT-24b3d973 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Mazda parts
Browse all Mazda replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
