3D-printed rx7 ign1a framerail bracket rhd for the 1992-2002 Mazda Rx-7 FD3S, made to order as an affordable alternative to a discontinued or expensive original part.
About this part

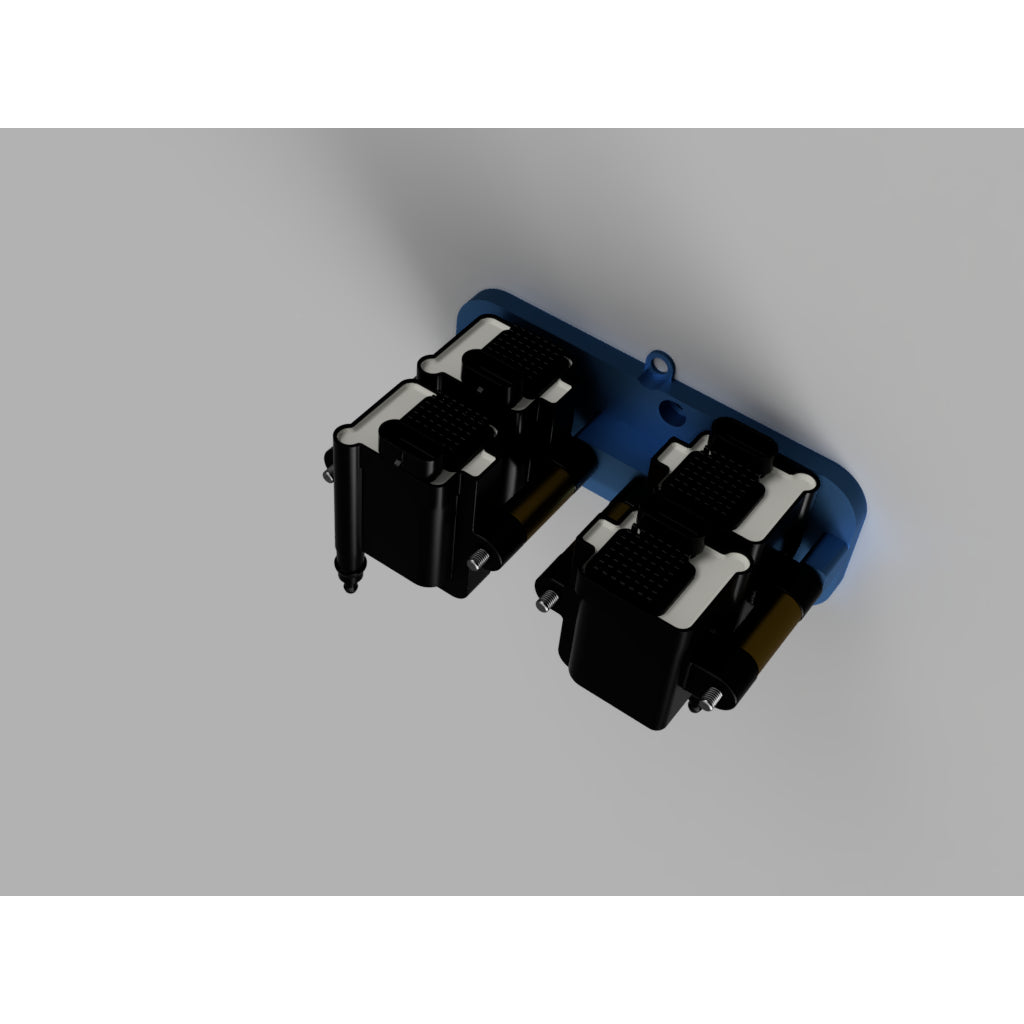

This is a bracket for the IGN1A ignition coils for Mazda RX7 FD3S .
The Bracket mounts on the left framerail. It uses existing holes on the frame rail.
The top hole is a exising threaded hole , the bottom 2 will need two M5 riv nuts to be inserted in the existing frame rail holes.
For my personal car i will make it from Aluminuim , i just 3d Printed it for fitment purposes
Compatible vehicles
- 1992-2002 Mazda Rx-7 FD3S
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Rx7 Ign1a Framerail Bracket Rhd |
|---|---|
| Make | Mazda |
| Model | RX-7 |
| Year | 1992 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-b2e3c678 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
