Seat Back Latch – 2004 Gmc Yukon
Seat Back Latch – 2004 Gmc Yukon

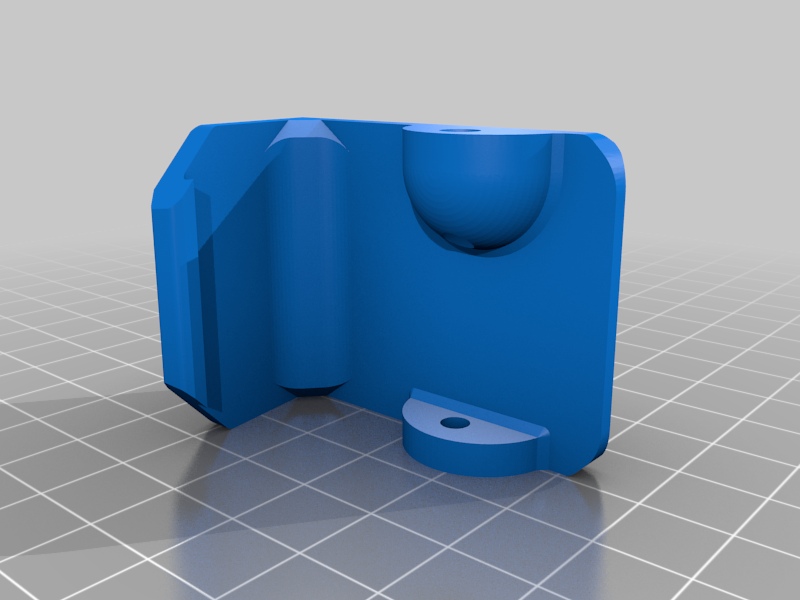

3D-printed seat back latch for the 2004 Gmc Yukon, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
I loved the original design, but with my seat backs, the lip was just a little too short to hold up when hitting bumps. And once I started modifying it, I went a little further and upgraded the design a bit! These are pretty easy to replace, just slide the pin out and get these in place! Needlenose pliers are a must.
For printing, print on the side as oriented in the model. Print at 100% fill and you shouldn't need supports. I printed at 0.2mm layer height with zig zag infill. It is very very strong and should last a long time. For heat tolerance, make sure to use PETG, ABS, or ASA.
When you print yours, print out a spare or two just to have, even a couple to give away! Many of these break due to the terrible OEM design.
Compatible vehicles
- 2004 Gmc Yukon
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Seat Back Latch |
|---|---|
| Make | GMC |
| Model | Yukon |
| Year | 2004 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-96714f86 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More GMC parts
Browse all GMC replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
