Replace a broken or missing seat recline handle on your 1987 Toyota Corolla AE86 (SR-5) with this 3D-printed part, produced to order by PartsRemade.
About this part

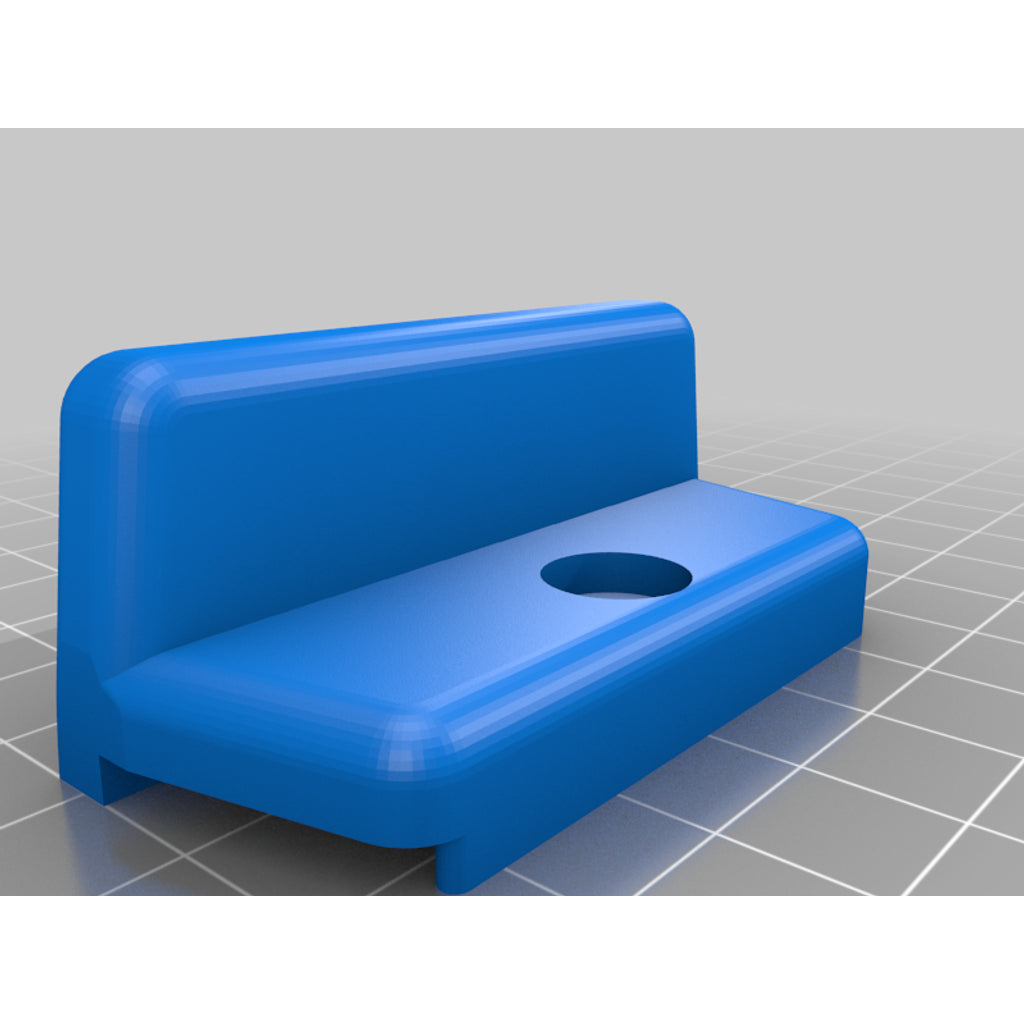

Seat recline handle for 1987 Toyota Corolla AE86, manual seats. Judging by part number interchange, it should fit a LOT of '80s-90s Toyotas, but I make no guarantee that it will fit anything other than an '87 Corolla SR-5 coupe. :)
Measured and modeled from the one good original from the right side (the left - US driver's side - was starting to crumble, which is what prompted this project,) mirrored for the left side.
I printed in PLA+ for the prototype - it fit great. Have not printed in ABS yet due to how fickle that stuff is. I'm not set up for it yet.
It can be printed as in the file, back (hidden) side down, with supports for the recess, or rotated to print top down without supports. Either works and fits fine, but appearance is different due to layering, of course.
Compatible vehicles
- 1987 Toyota Corolla AE86 (SR-5)
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Seat Recline Handle |
|---|---|
| Make | Toyota |
| Model | Corolla |
| Year | 1987 |
| Production | 3D printed to order (FDM) |
| Design files | 3 (3MF, STL) |
| Part number | CAT-ea923436 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Toyota parts
Browse all Toyota replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
