Replace a broken or missing shift boot retaining bracket on your 1984-1989 Nissan 300zx Z31 with this 3D-printed part, produced to order by PartsRemade.
About this part

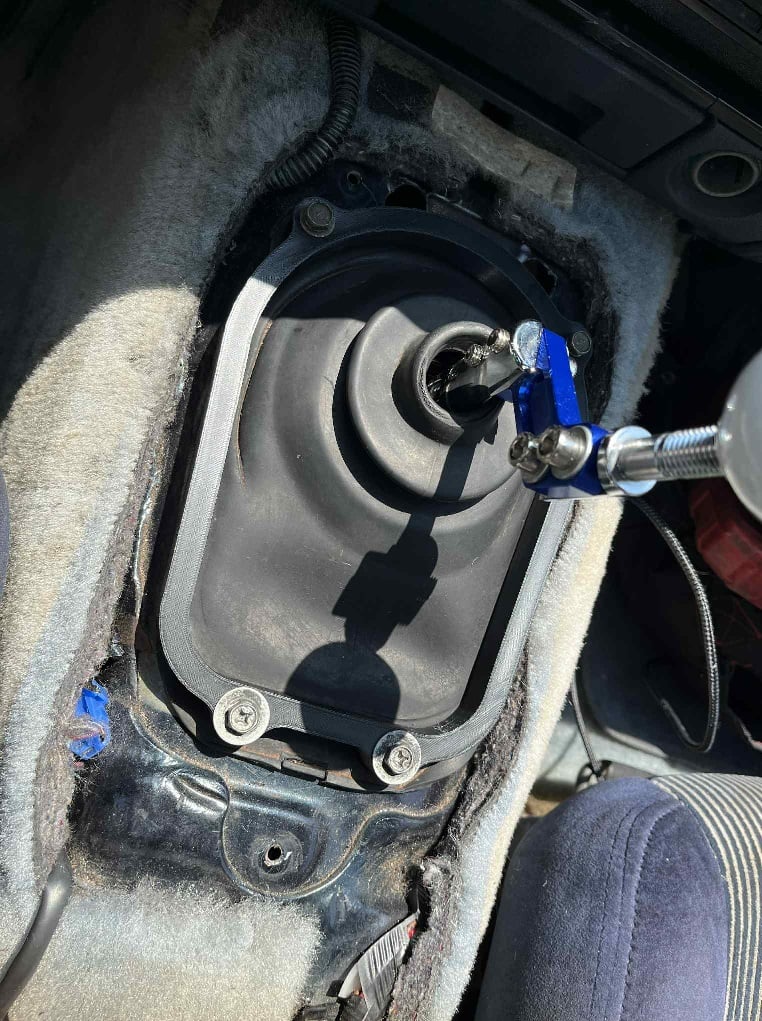

In piecing my new-to-me car together, I was missing the factory bracket. I took a few measurements with a ruler and got it in one try to my amazement. I'm using a T5 short shifter which places the assembly really high, so I *think my boot is flipped upside down to accommodate it. This left a big curled gap blasting me with warm air on my test drives. The bracket should work with the boot whether flipped or not.
Note: The factory holes are coarse thread M6 (generally short body/plastic panel screws) and I re-tapped them to M6x1.0 because I had a ready supply of those bolts in usable lengths for this bracket. The holes are 7mm in diameter for some wiggle room.
Update 6/30/25: I finally slapped the center console over this piece, and found that it was too thick to allow the shifter cover to snap into place. I've reduced the thickness from 15 mm to 7.5 mm.
I used:
PETG
25% infill
gyroid
~34 grams
Compatible vehicles
- 1984-1989 Nissan 300zx Z31
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Shift Boot Retaining Bracket |
|---|---|
| Make | Nissan |
| Model | 300ZX |
| Year | 1984 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-bd787af0 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Nissan parts
Browse all Nissan replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
