Need a replacement shifter sleeve for your 2013-2014 Ford Mustang S197? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part
Latest update.
The file is now modified with the correct thread for the shift stick, I would advise cleaning the thread with 12mm 1.25 tap to make installation easier. I also increased the size of the lower ring so it grips the plether gaiter better
The old files are now deleted.

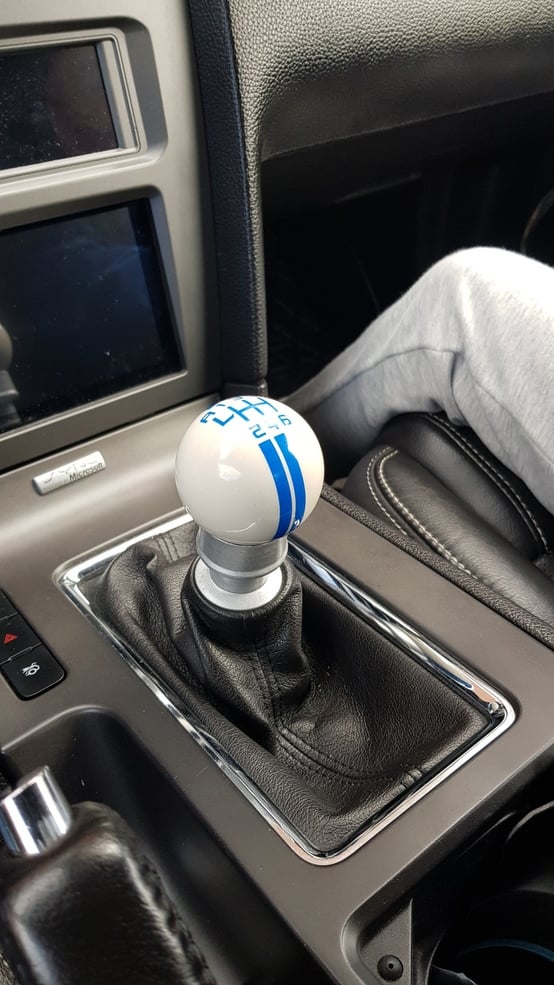

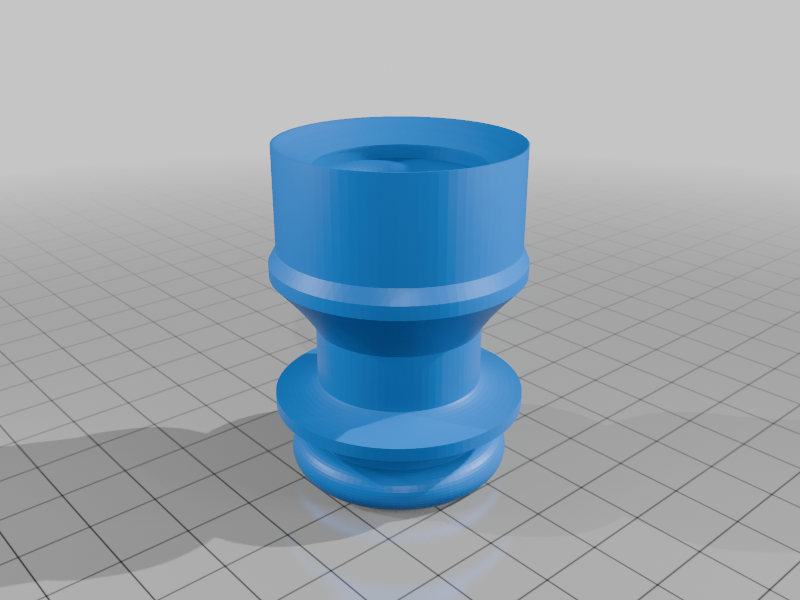

This is a cover for the stick shift on a 2013 mustang when fitting the fake Aliexpress FMR gear shifter knob. The lower doughnut clicks into the factory gaiter and should fit in a 66mm diameter shifter knob. The image shows it painted in silver when aerosol, due to the supports needed I think painting is best to cover any residue marks unless you wanna try buffing silk finish silver filament.
If you print right side up with tree supports touching the build plate, it will come out with virtually no cleanup
Compatible vehicles
- 2013-2014 Ford Mustang S197
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Shifter Sleeve |
|---|---|
| Make | Ford |
| Model | Mustang |
| Year | 2013 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-b69e61e3 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Ford parts
Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
