Splash Shield Mounting Clip – 2017 Ford Edge
Splash Shield Mounting Clip – 2017 Ford Edge
3D-printed replacement splash shield mounting clip made for the 2017 Ford Edge: a simple way to replace a cracked, lost or hard-to-find original part.
About this part
This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/hO03kdXYThL

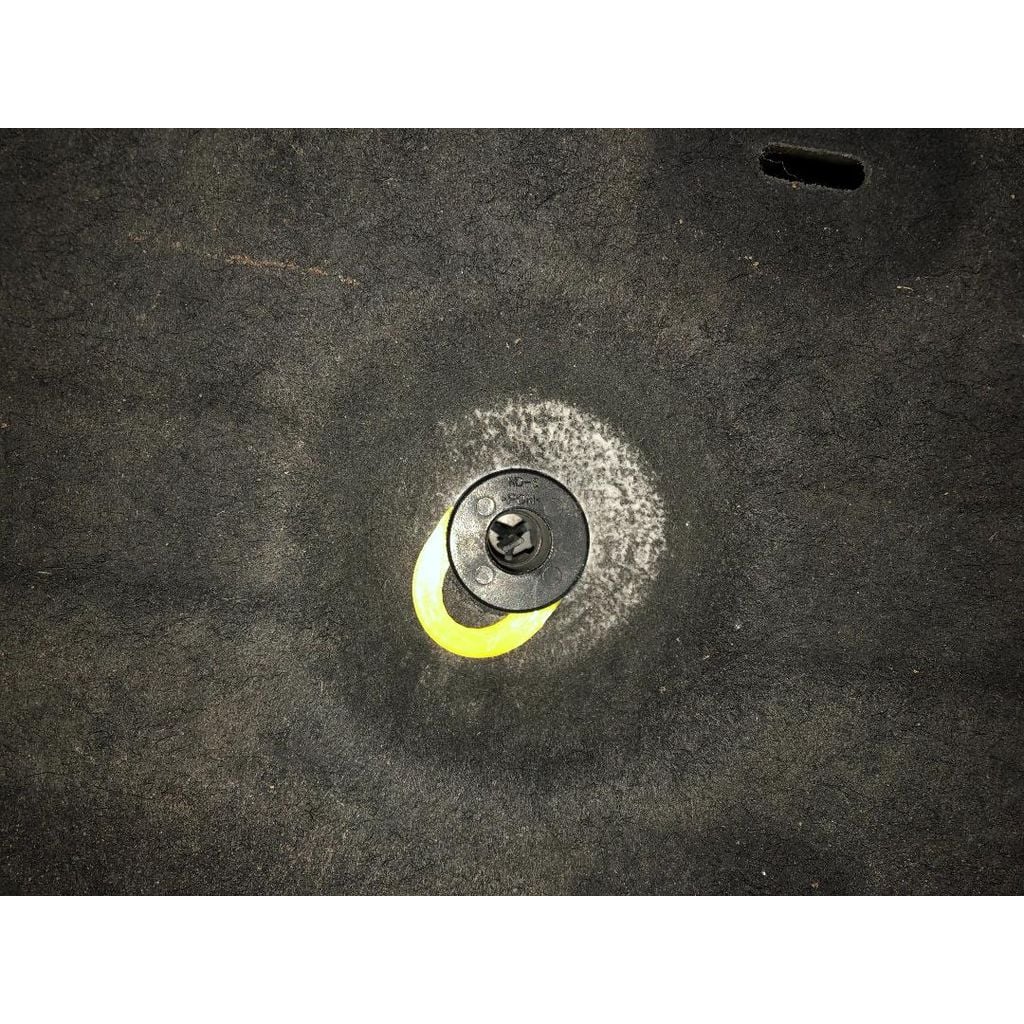

I just bought a 2017 Ford Edge and at 65MPH on a windy day I noticed a loud vibrating sound from the bottom of the car. There is a splash shield under the car that runs on both sides from front axle to back axle. When I would move that with my hand I noticed it sounded very loud and loose in the middle. (I tested a 2015 for this issue and it was tight) So I figured mine just had worn out mounting clips. I printed these clips to fill the gap between the Ford mounting clip and the shroud. I hope this helps and will report back the results if the sound goes away.
THE SOUND DID GO AWAY!
Compatible vehicles
- 2017 Ford Edge
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Splash Shield Mounting Clip |
|---|---|
| Make | Ford |
| Model | Edge |
| Year | 2017 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-f98b1567 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Ford parts
Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
