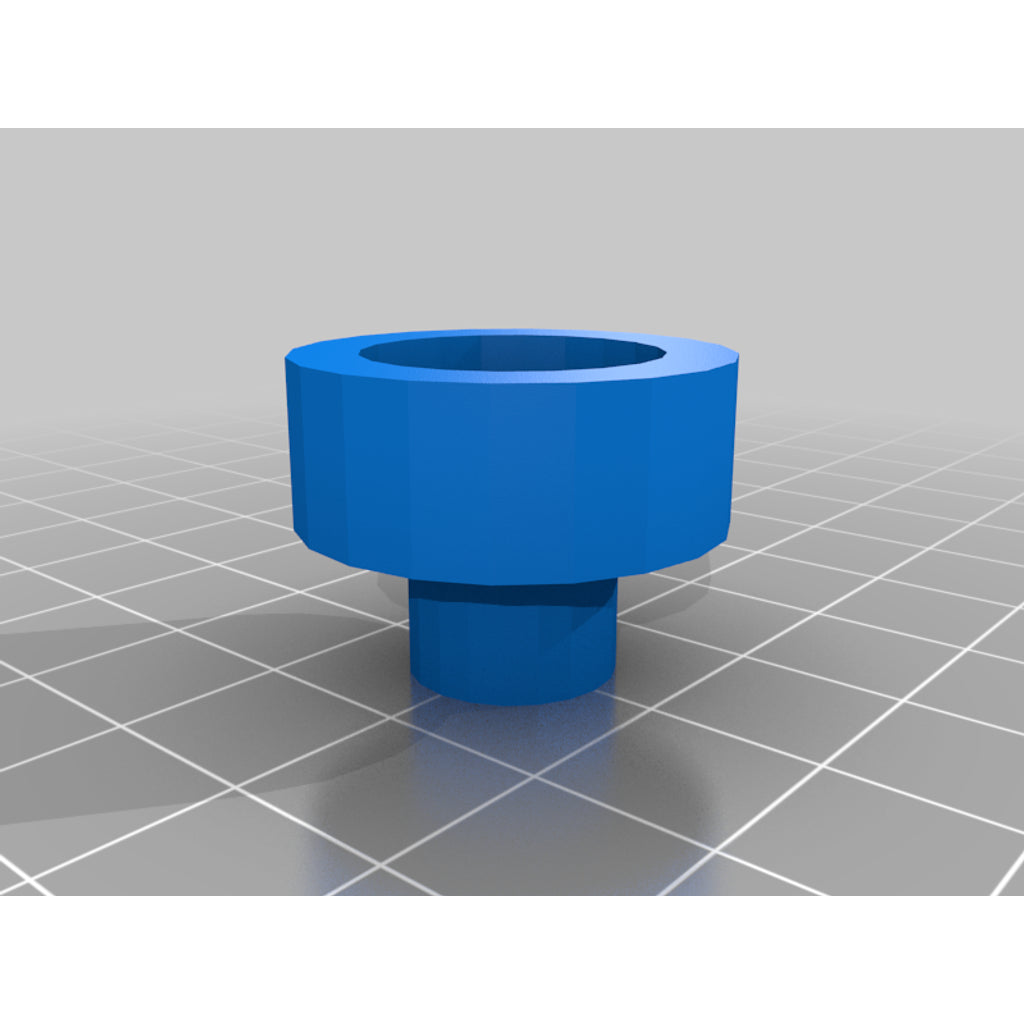

Swingaway Mirror Pivot Socket – 1983-1992 Ford Ranger

3D-printed replacement swingaway mirror pivot socket made for the 1983-1992 Ford Ranger: a simple way to replace a cracked, lost or hard-to-find original part.

About this part

Inside of the Swingaway Mirror used on the 83-92 Ford Ranger, there is a plastic socket in a ball-and-socket assembly which provides the tension to hold the mirror in position. This plastic socket can crack apart, and when it does, the mirror will not stay in position. This plastic part is not available and no commonly available part can replace it, hence these 3D parts.

This part is likely shared, or similar to the part used in mirrors on other Ford vehicles with similar design mirrors, such as some F-series, E-series, Aerostar, and Bronco II (which itself uses the exact same mirrors as the Ranger).

Note that there are other potential failures so you must take the mirror apart to identify the problem before assuming this will solve it.

Compatible vehicles

• 1983-1992 Ford Ranger

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Ford parts

Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
