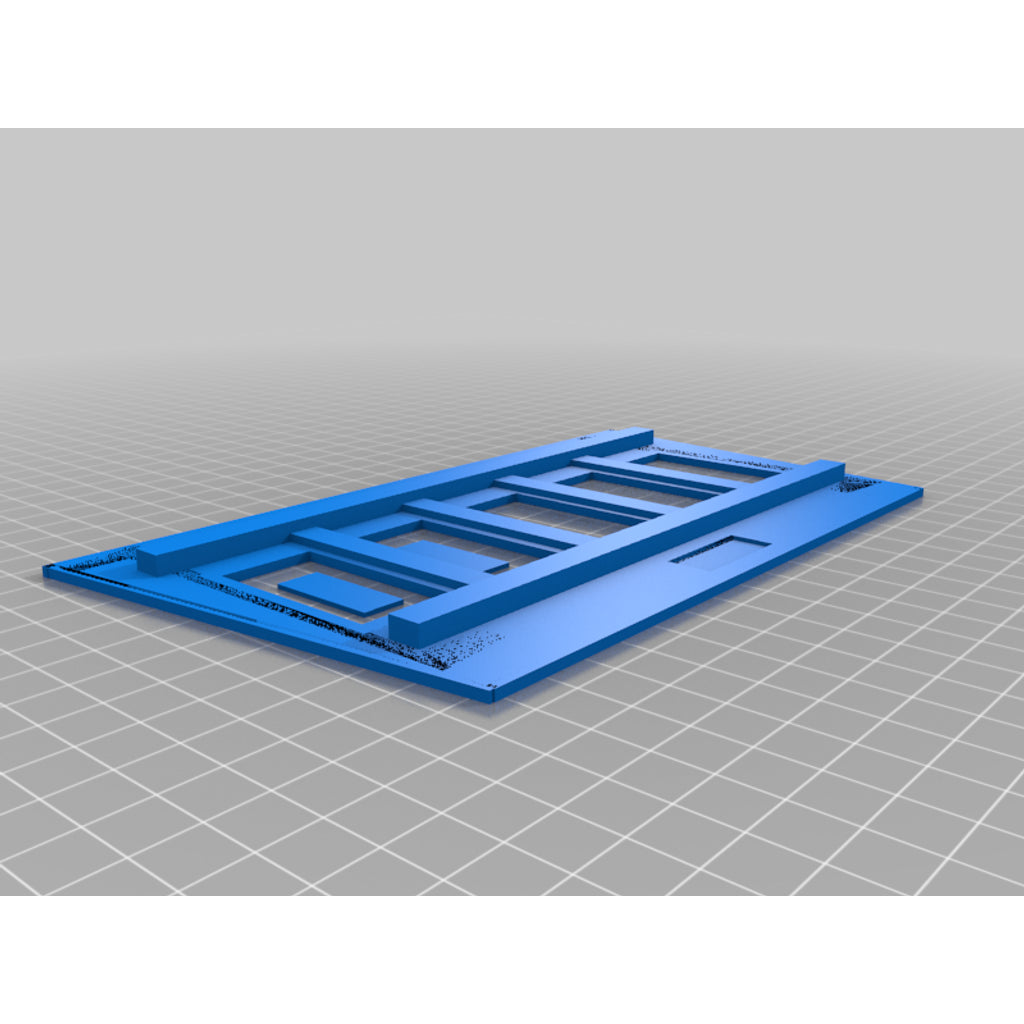

Switch Panel – 2015 Subaru Wrx Sti (STI)
Switch Panel – 2015 Subaru Wrx Sti (STI)
3D-printed switch panel for the 2015 Subaru Wrx Sti (STI), made to order as an affordable alternative to a discontinued or expensive original part.
About this part
I wanted a nice OEM looking way to mount switches in a non permanent way. As far as I know, this will fit 2015+ STI models only. I don't know if it will fit the WRX as the interior is a bit different (please let me know if that is incorrect).
There are several versions ranging from a basic plate to cover the area below the radio, to ready to install with switch cutouts. There are split 2 piece versions of each different model for people with smaller printers. For the split version with the switch cutouts, the left side has the tabs to fuse the halves together with glue (see bottom for adhesive I use). The solid plate split model does not have the tabs so I have also included just the tabs in a separate file. They are not required, but make life easier when joining the parts.
As far as mounting. you'll have to get creative. I just lined it up and hot glued the inner edges, but you could make mounting brackets.
Sand and/or fill to make smooth for paint or vinyl (I used 400 grit to finish, and auto-body filler to smooth gap from 2 piece print)
LINKS:
Switches- https://www.amazon.com/gp/product/B01F55SXVC/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Adhesive-
https://www.amazon.com/J-B-Weld-50133-Tan-1-Pack/dp/B009EU5ZNO/ref=sr_1_5?crid=37XNWIN55A71K&keywords=jb%2Bweld%2Bplastic%2Bbonder&qid=1572083173&sprefix=JB%2Bweld%2Bplas%2Caps%2C121&sr=8-5&th=1&psc=1
Vinyl wrap-
https://www.amazon.com/gp/product/B01CF3ONIE/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&th=1
Compatible vehicles
- 2015 Subaru Wrx Sti (STI)
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Switch Panel |
|---|---|
| Make | Subaru |
| Model | WRX STI |
| Year | 2015 |
| Production | 3D printed to order (FDM) |
| Design files | 10 (STL) |
| Part number | CAT-cf8f3d26 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Subaru parts
Browse all Subaru replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
