Tachometer Mount – 1965-1966 Ford Mustang
Tachometer Mount – 1965-1966 Ford Mustang
Need a replacement tachometer mount for your 1965-1966 Ford Mustang? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part

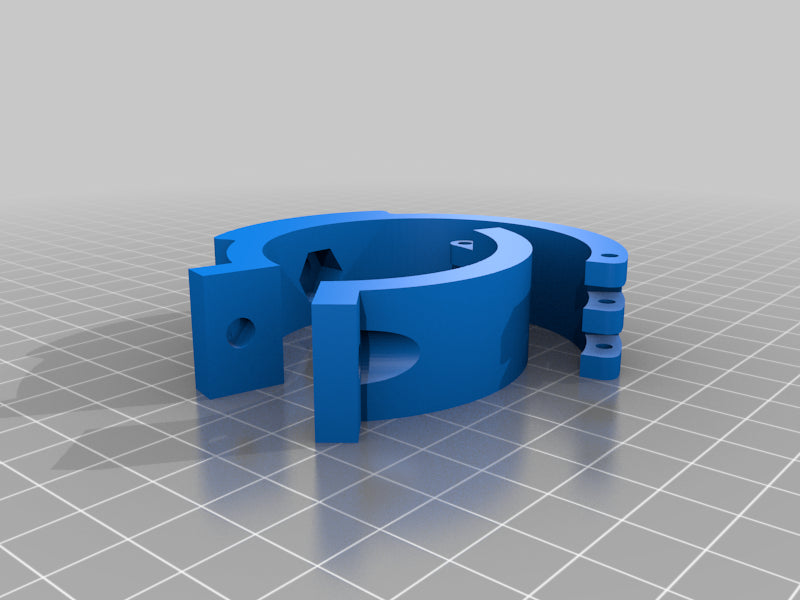

I designed this to replace ugly hose clamp type of mount that holds the external tachograph to the mustang steering column. This should fit perfectly 1965 and 1966 Ford Mustang - possibly later years too.
It has a swivel designed to mount it to the steering column. You will need an M3 screw and nut for the swivel and M5 to clamp it around the column. Also another M5 to attach the actual tacho to the mount.
Printing:
I used a 30% fill with 3-4 layers for walls and seemed to work fine.
Compatible vehicles
- 1965-1966 Ford Mustang
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Tachometer Mount |
|---|---|
| Make | Ford |
| Model | Mustang |
| Year | 1965 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-e44cec6c |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Ford parts
Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
