Tachometer-mounted Phone Holder Bracket – 2001-2006 Mini Cooper R50
Tachometer-mounted Phone Holder Bracket – 2001-2006 Mini Cooper R50
3D-printed tachometer-mounted phone holder bracket for the 2001-2006 Mini Cooper R50, made to order as an affordable alternative to a discontinued or expensive original part.
About this part

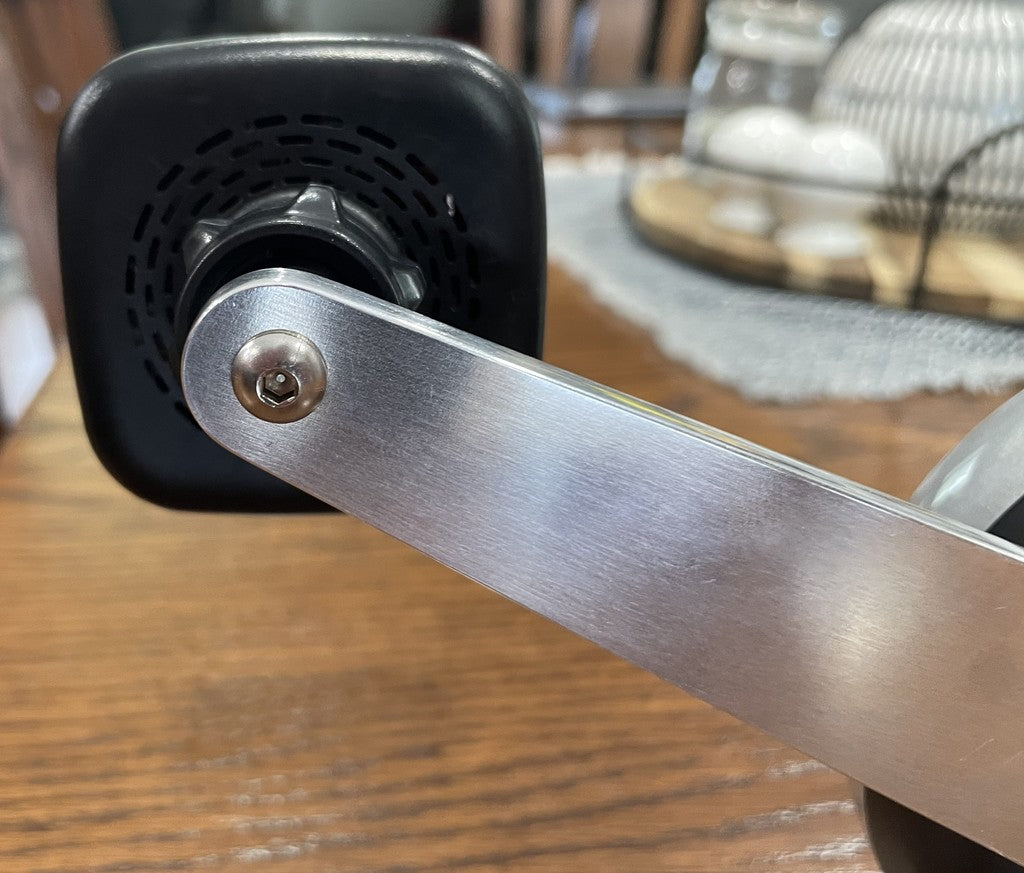

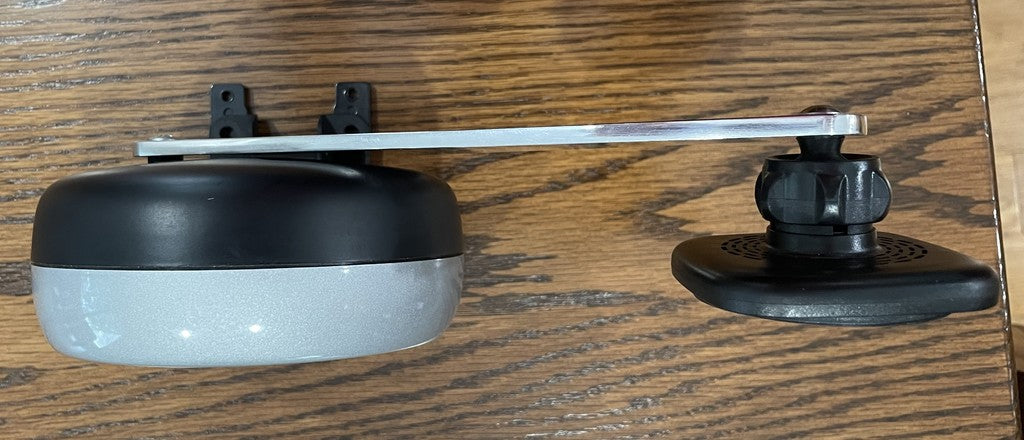

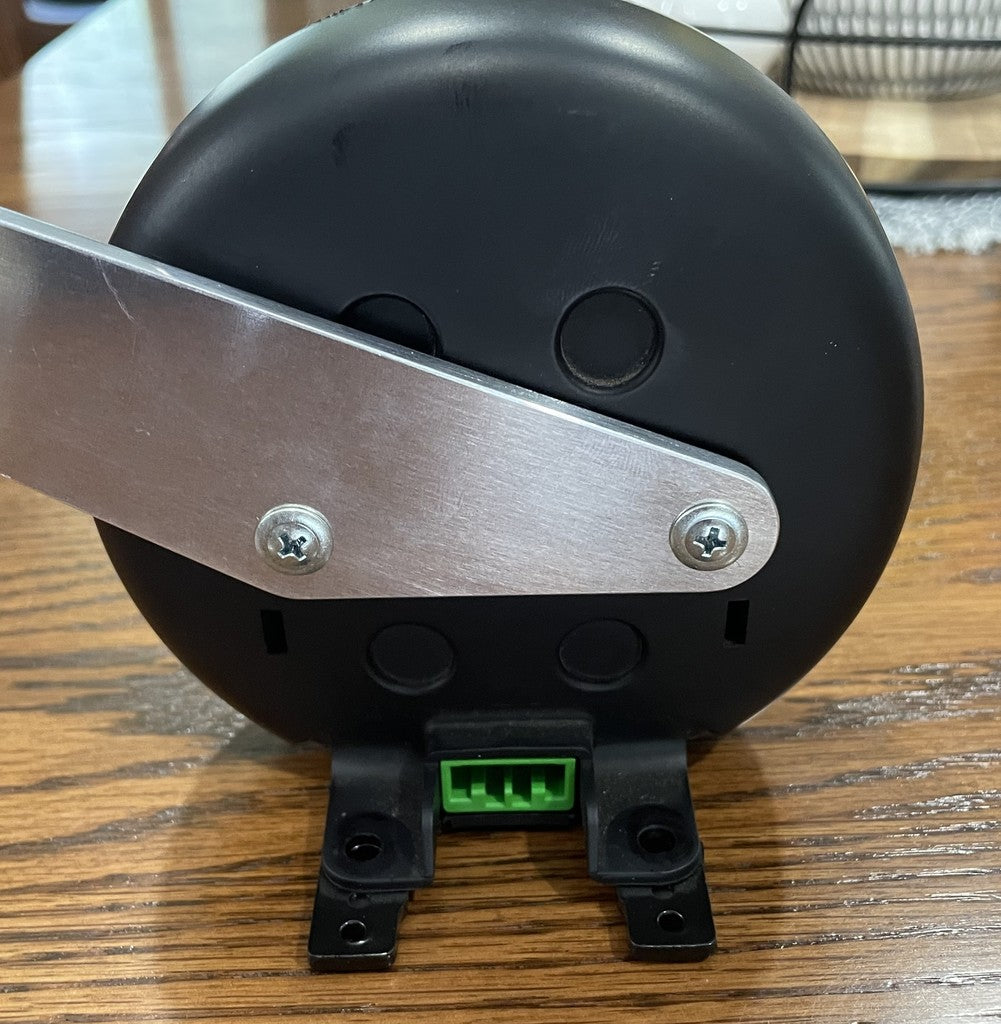

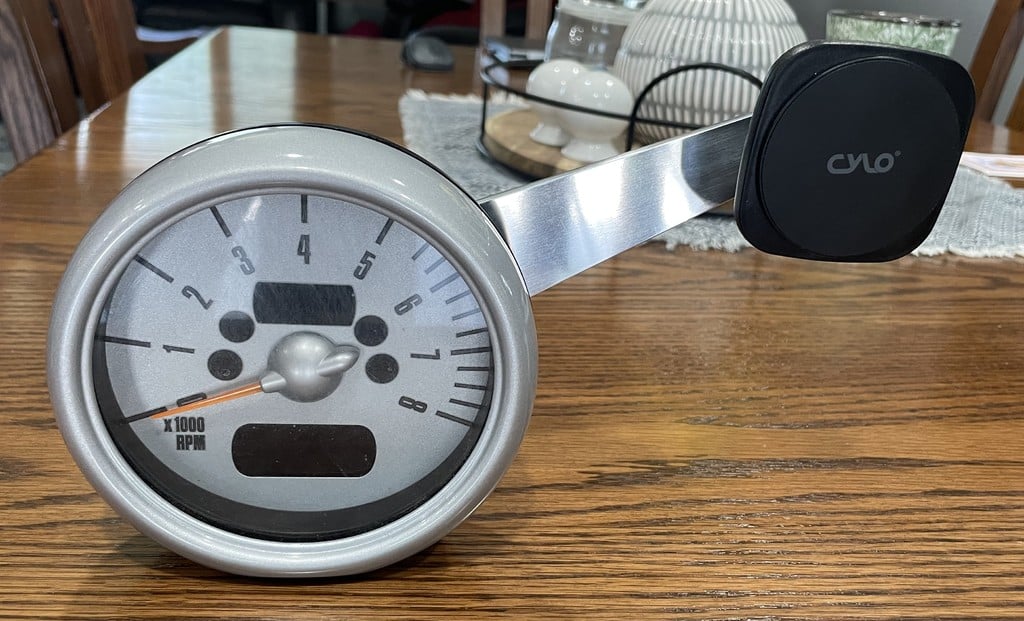

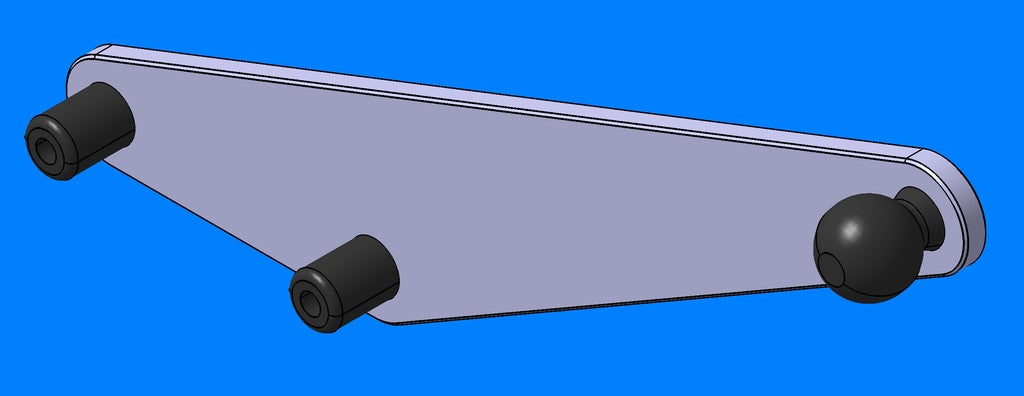

Mount phone from this holder that mounts to the back side of tachometer using existing bolt holes. Print from high temperature nylon or comparable material. I laser cut the plate from aluminum and turned the post and ball from delrin. The ball mounts to plate with an M5-0.8 x 12mm long stainless steel BHCS. I used a washer head wood screw with same thread as the factory from hardware store to mount bracket to tachometer.
Compatible vehicles
- 2001-2006 Mini Cooper R50
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Tachometer-mounted Phone Holder Bracket |
|---|---|
| Make | MINI |
| Model | Cooper |
| Year | 2001 |
| Production | 3D printed to order (FDM) |
| Design files | 9 (STL, STP) |
| Part number | CAT-21e259b5 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More MINI parts
Browse all MINI replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
