Tarp Holder For Rain Gutter – 2002 Ford Transit

Replace a broken or missing tarp holder for rain gutter on your 2002 Ford Transit with this 3D-printed part, produced to order by PartsRemade.

About this part

This is a bracket for attaching a tarp or awning to the rain gutter of a car or camper van.

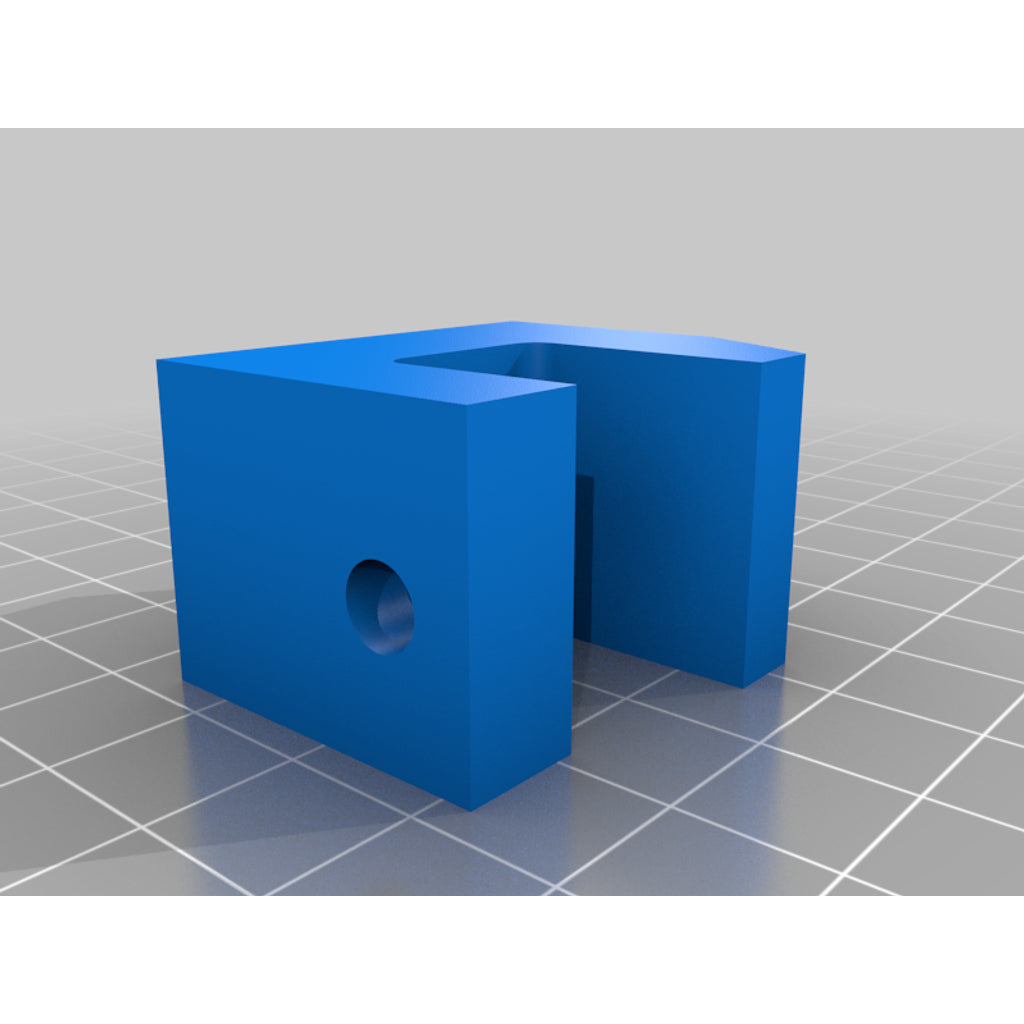

The holder consists of two parts. A strip which is placed in the gutter and a C-shaped counterpart which presses the strip tight.

This a remix from https://www.thingiverse.com/thing:4156741 because the gutter of my Ford Transit MK6 is wider than the van in the original one. See attached measures vs the original ones.


**Material list for a bracket:**
3D printing:

1x strip for rain gutter
1x C-shaped counterpart
Please make sure to print the C-shaped counterpart upright. This increases the stability, because the individual printing layers are perpendicular to the later mechanical load.

Screws:

2x M5 x 18 mm
1x M5 x 45 mm (even longer screws are possible)
2x washer, M3
1x washer, M5
3x nut, M5

**Note:** I've included a Test piece which is just a small part so you can check if the size fits.

Compatible vehicles

• 2002 Ford Transit

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
