3D-printed replacement transmission axle plugs made for the 1996-2021 Lotus Elise: a simple way to replace a cracked, lost or hard-to-find original part.
About this part

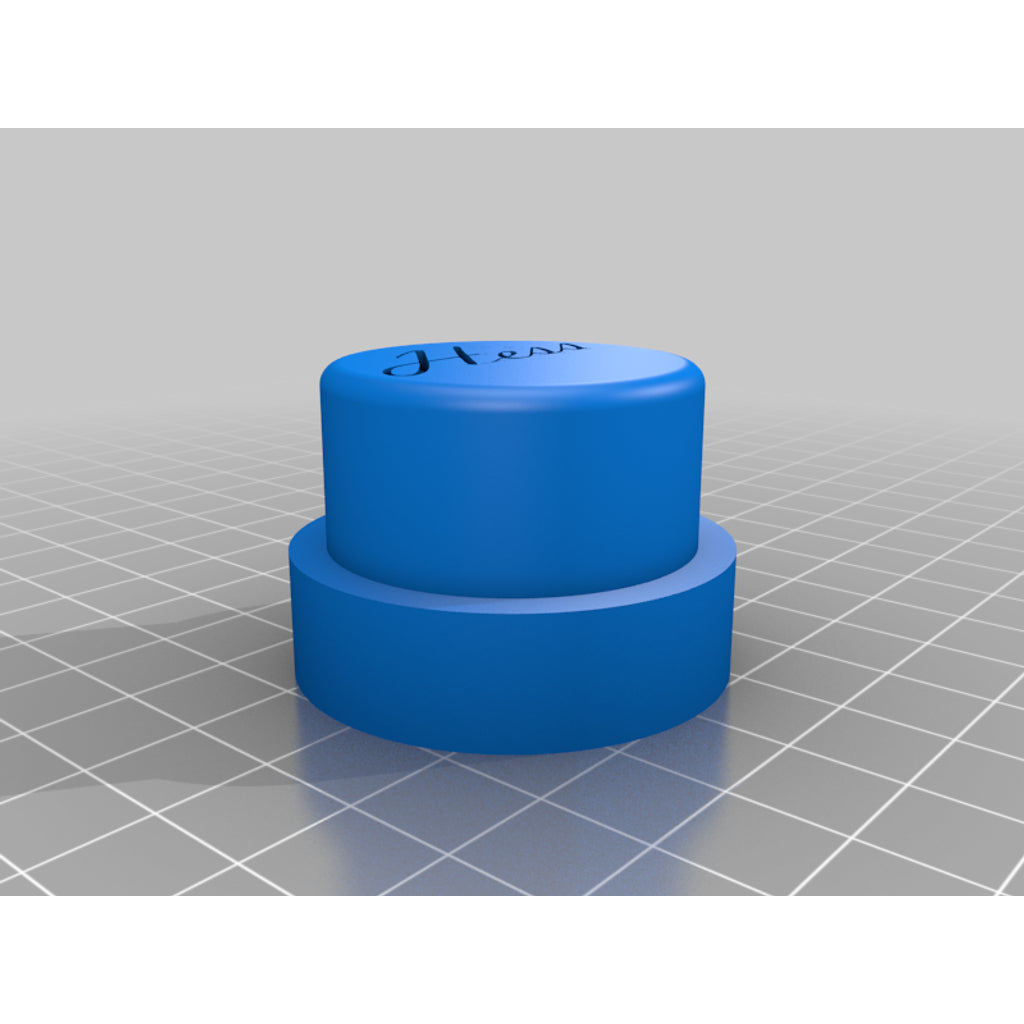

I'm doing a clutch job on the Elise. The transmission is a Toyota C60. I don't like leaving the holes exposed when the axles come out, so I drew up and printed these plugs. They are 35mm across at the seal, same as the axles. When you get the axles out, put these in to keep dirt/dust, etc. out of the transmission.
These should fit the C50 (5 speed) trans as well, and probably a lot of other Toyota transmissions. Anything that has an axle with a 35mm area where the seal rides.
I printed them in ABS. OpenSCAD source included.
Compatible vehicles
- 1996-2021 Lotus Elise
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Transmission Axle Plugs |
|---|---|
| Make | Lotus |
| Model | Elise |
| Year | 1996 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-6e4295e4 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
