Truck Bed Anchor – 1997-2026 Nissan Frontier

3D-printed truck bed anchor for the 1997-2026 Nissan Frontier, made to order as an affordable alternative to a discontinued or expensive original part.

About this part

This is an anchor for a 5/16" bolt. I used it to tie in a lumber rack. It's not going to be 1000 lbs rating but it should hold relatively well an empty 2x6 lumber rack like I have made. Then the tiedown straps will support the loaded weight.

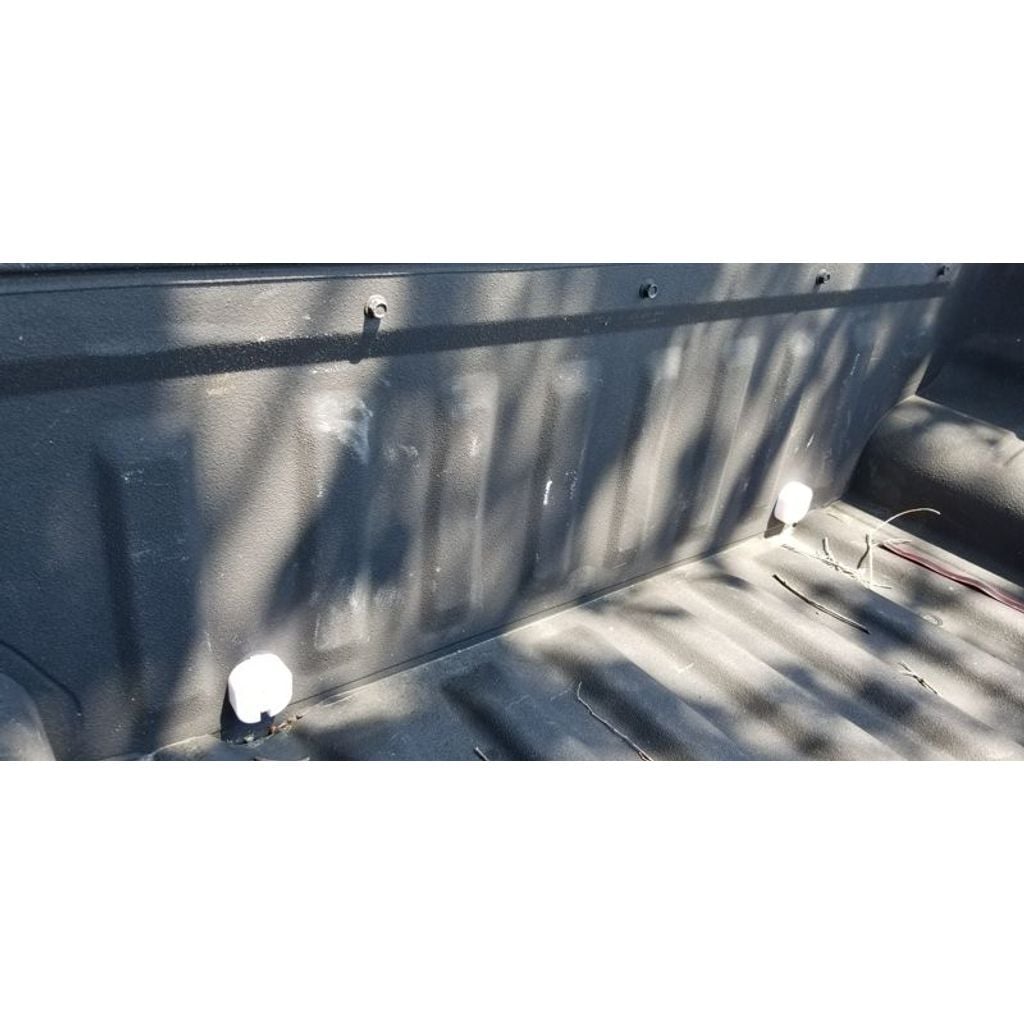

The way it works is you pop out some knockouts at the bottom of the bed (location shown in photos). These anchors have two halves which slot in. Then they are spaced with the "dogbone" shaped anchor, which has a captivated 5/16" nut, which slides in from the top, locking it in place. The sliding part is tapered so it can only go one way.

This is the non-intrusive way I devised to get a relatively strong anchor in the truckbed.

Printed in PLA or PETG with 100% infill on the interior face for the anchor piece (slot facing up), while dogbone was printed vertical using the only flat face. Don't use the front face of the anchor as the printing face, or the critical tab which grabs the metal may be weaker.

I tugged on it a bit and it didn't break with say 50-100lbs force :)

Compatible vehicles

• 1997-2026 Nissan Frontier

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Nissan parts

Browse all Nissan replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
