Trunk/boot Buffer Stop – 1995-2004 Bmw 5 Series E39
Trunk/boot Buffer Stop – 1995-2004 Bmw 5 Series E39
3D-printed trunk/boot buffer stop for the 1995-2004 Bmw 5 Series E39, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
This is the buffer that the arm on the boot/trunk hits to stop it opening too far, if it cracks (which it will) then ultimately it tries to bend the gas struts.

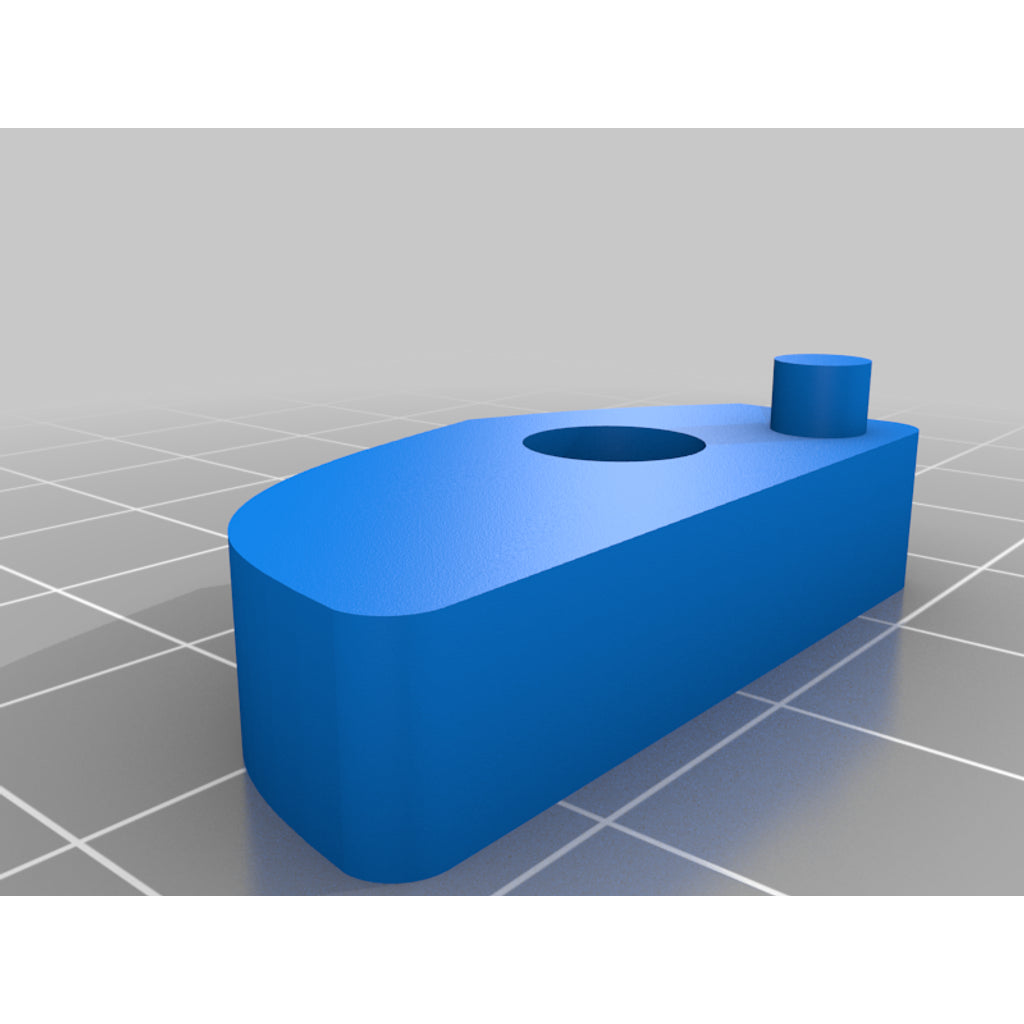

Photo shows a broken one and the print.
This is for the RHS looking at the rear of the vehicle. The LHS is identical but mirror image.
Print this so it stands on the long edge (hole and pin are horizontal) or the the arm will seperate the layers, there is a lot of force there.
I used PETG at 100% infill.
Compatible vehicles
- 1995-2004 Bmw 5 Series E39
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Trunk/boot Buffer Stop |
|---|---|
| Make | BMW |
| Model | 5 Series |
| Year | 1995 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-1173140b |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More BMW parts
Browse all BMW replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
