Tweeter Mount – 2003-2011 Honda Element
Tweeter Mount – 2003-2011 Honda Element
3D-printed replacement tweeter mount made for the 2003-2011 Honda Element: a simple way to replace a cracked, lost or hard-to-find original part.
About this part

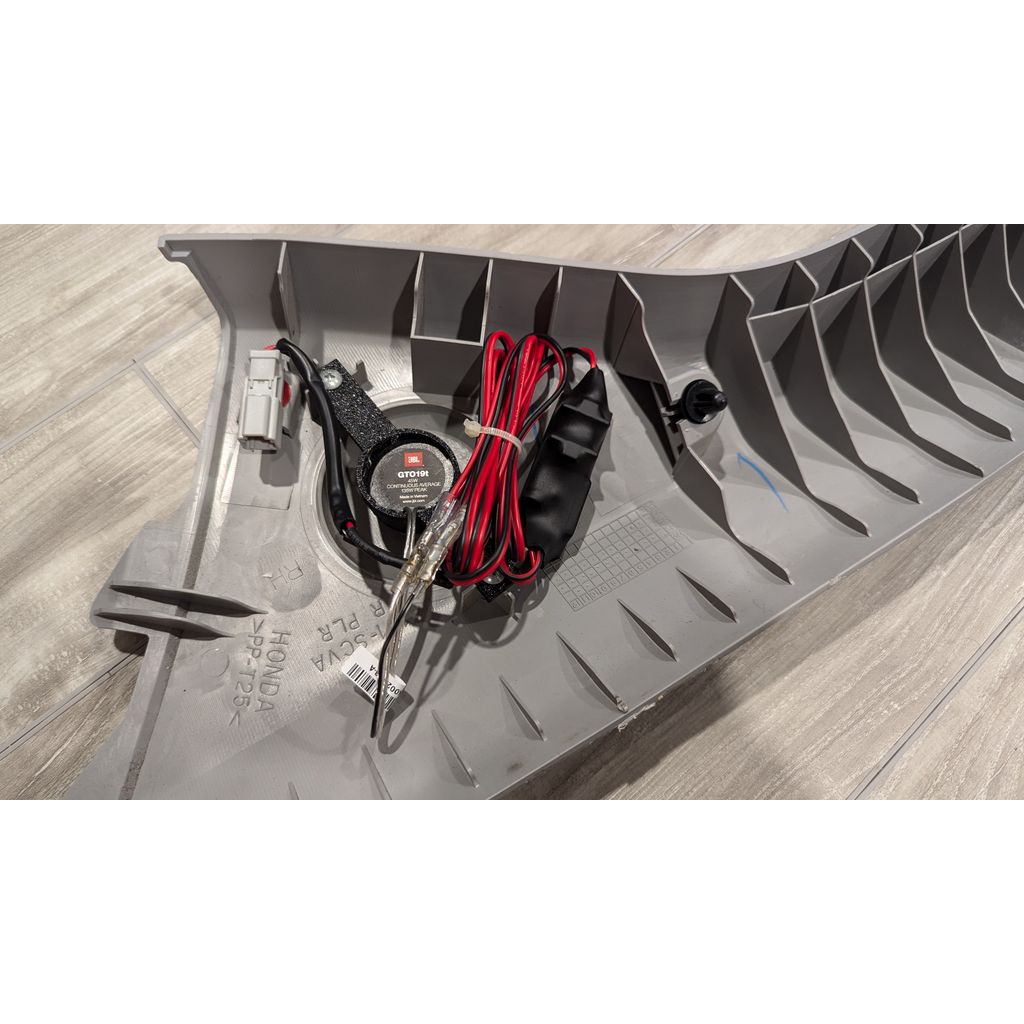

This is a tweeter mount designed for easy printing with minimal supports that fits the stock mounting holes in the A-Pillar molding on (at least) 2005 Honda Elements, possibly other years as well.
The STL and SCAD files are sized to fit JBL GTO19T 0.75" tweeters, and include the tabs to lock it in place by turning it once inserted. For other tweeters, the diameter of the mount and tab sizes can be adjusted via parameters in the file.
This is a quick and dirty OpenSCAD, but hopefully is a good starting point for anyone else who might need this for their Element.
Initial test prints were made in PLA to get the sizing correct, final prints were PETG to be able to stand up to hot interior temperatures in the summer.
Note: I desoldered the wiring off the stock tweeters and soldered them to the wiring that came with the new tweeters to make a clean connection and reuse the stock plug connector.
Compatible vehicles
- 2003-2011 Honda Element
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Tweeter Mount |
|---|---|
| Make | Honda |
| Model | Element |
| Year | 2003 |
| Production | 3D printed to order (FDM) |
| Design files | 1 (STL) |
| Part number | CAT-f1bd7c6f |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Honda parts
Browse all Honda replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
