Tweeter Speaker Pods – 1982-1994 Bmw 3 Series E30
Tweeter Speaker Pods – 1982-1994 Bmw 3 Series E30

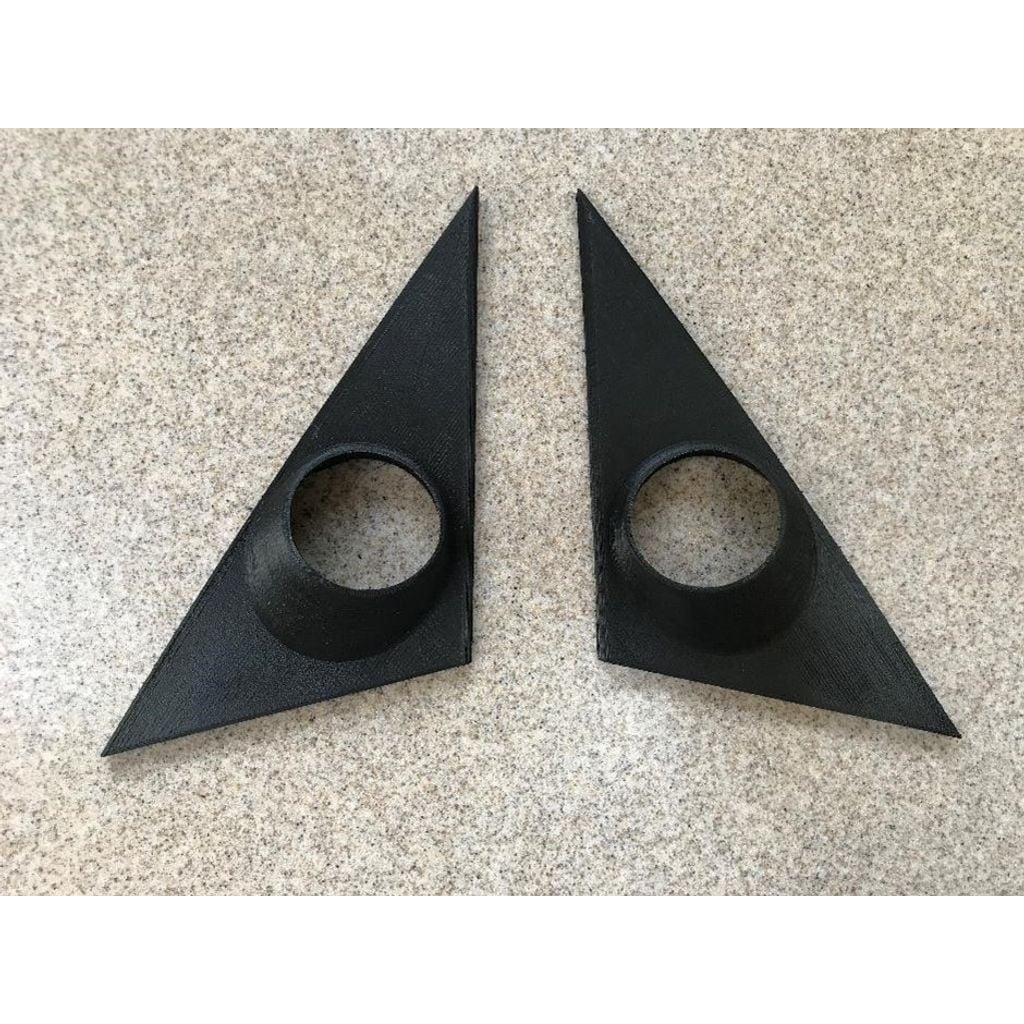

3D-printed tweeter speaker pods for the 1982-1994 Bmw 3 Series E30, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
Tweeter pods for BMW E30 3D printed speaker mount door build upgrade
Most E30s have tweeter wiring already fitted, the wires run from behind the door card into the footwell behind the main speakers.
3D printed using black ABS. I have found them very difficult to print as they warp a lot. May work with PLA but PLA can melt in a car on a hot day.
Doesn't have pins on the back for mounting like the original trim. Can be mounted either by snapping the pins off the old trim and gluing them to the printed part or by gluing the printed part directly to the door.
42mm hole is good for Alpine DDT-S30 speakers
34mm hole is good for Ground Zero GZHT 19x speakers
You will need to measure your tweeters and pick an appropriate .stl file, the measurement in the file name is the inside diameter of the hole for the tweeter.
I have also uploaded .step files for each part and a solidworks file so feel free to make changes if you need to.
Compatible vehicles
- 1982-1994 Bmw 3 Series E30
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Tweeter Speaker Pods |
|---|---|
| Make | BMW |
| Model | 3 Series |
| Year | 1982 |
| Production | 3D printed to order (FDM) |
| Design files | 12 (STEP, STL) |
| Part number | CAT-0de050b5 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More BMW parts
Browse all BMW replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-4.0.
