Vent Bracket Camera Mount – 1997-2006 Jeep Wrangler TJ

Need a replacement vent bracket camera mount for your 1997-2006 Jeep Wrangler TJ? This 3D-printed part is made to order to replace a broken, worn or missing original piece.

About this part

I've had many vehicle break-ins. I lock my other cars but If you own a Jeep with a soft top, you will understand me when I say I would rather the would be thief to pop his head in and find nothing rather than them rip my top to gain entry.

With that said, I've found that retailers sell these Wyze cams very cheap (I bought mine for $15 at Microcenter). They come with free cloud storage and run on very low power (5v USB). I wanted to install one in my Jeep so that if someone enters it, it would immediately alert me. I took some measurements and created this model with Sketchup.

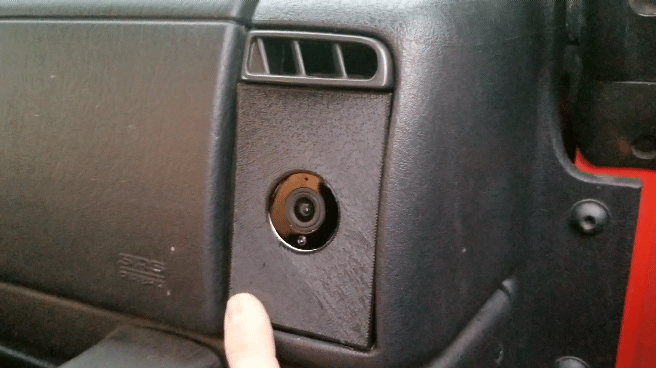

It fits snug, flush, and is hard to remove (which is good). To install you have to push hard until it clicks. There is a small opening where the vent meets the vent-shaft, this is an easy way to push through the USB cable. I was able to find a really cheap USB charger and wired it into my fusebox with a fuse splice and a switch so the camera is always on. You can add a switch if you feel like it might kill your battery. I've been testing and It has been running for 3 days so far and has not killed my battery. I would say if you drive every day or every other day you should be fine.

Compatible vehicles

• 1997-2006 Jeep Wrangler TJ

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Jeep parts

Browse all Jeep replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
