Vent Shutter Spur Gear – 2003-2007 Ford F-250
Vent Shutter Spur Gear – 2003-2007 Ford F-250
Need a replacement vent shutter spur gear for your 2003-2007 Ford F-250? This 3D-printed part is made to order to replace a broken, worn or missing original piece.
About this part

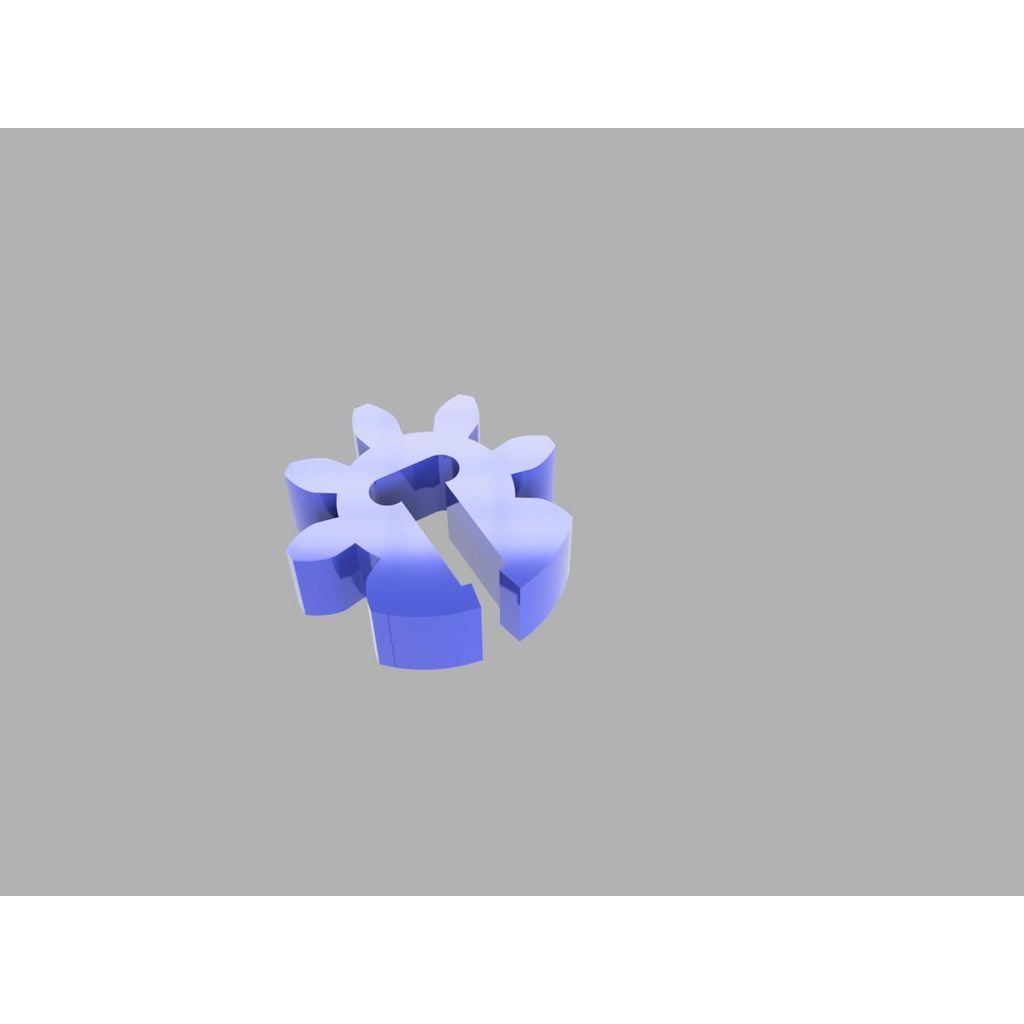

This is the half moon spur gear that attaches to the vent shutter which operates the shutters of the air conditioning vents on 2003-2007 (or earlier) F250-550 . If your vent slide doesn't move the shutters horizontally, this piece is likely sheared off. You have to take the dash panel out and remove the 3 screws that hold the vents to the housing. After that, disassemble the the shutters from the carrier (4 tabs) and pop this into the middle shutter. Print a couple extra to have handy!
Compatible vehicles
- 2003-2007 Ford F-250
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Vent Shutter Spur Gear |
|---|---|
| Make | Ford |
| Model | F-250 |
| Year | 2003 |
| Production | 3D printed to order (FDM) |
| Design files | 2 (3MF, STL) |
| Part number | CAT-07e06ead |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
More Ford parts
Browse all Ford replacement parts or search the full 3D-printed car parts catalogue.
Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
