3D-printed window insert ventilation screen for the 2007-2018 Jeep Wrangler Unlimited JK, made to order as an affordable alternative to a discontinued or expensive original part.
About this part
We go camping and sleep in the car.
So for ventilation, while we sleep, and to keep the bugs out, I looked for a solution. I couldn't find anything so I designed this.

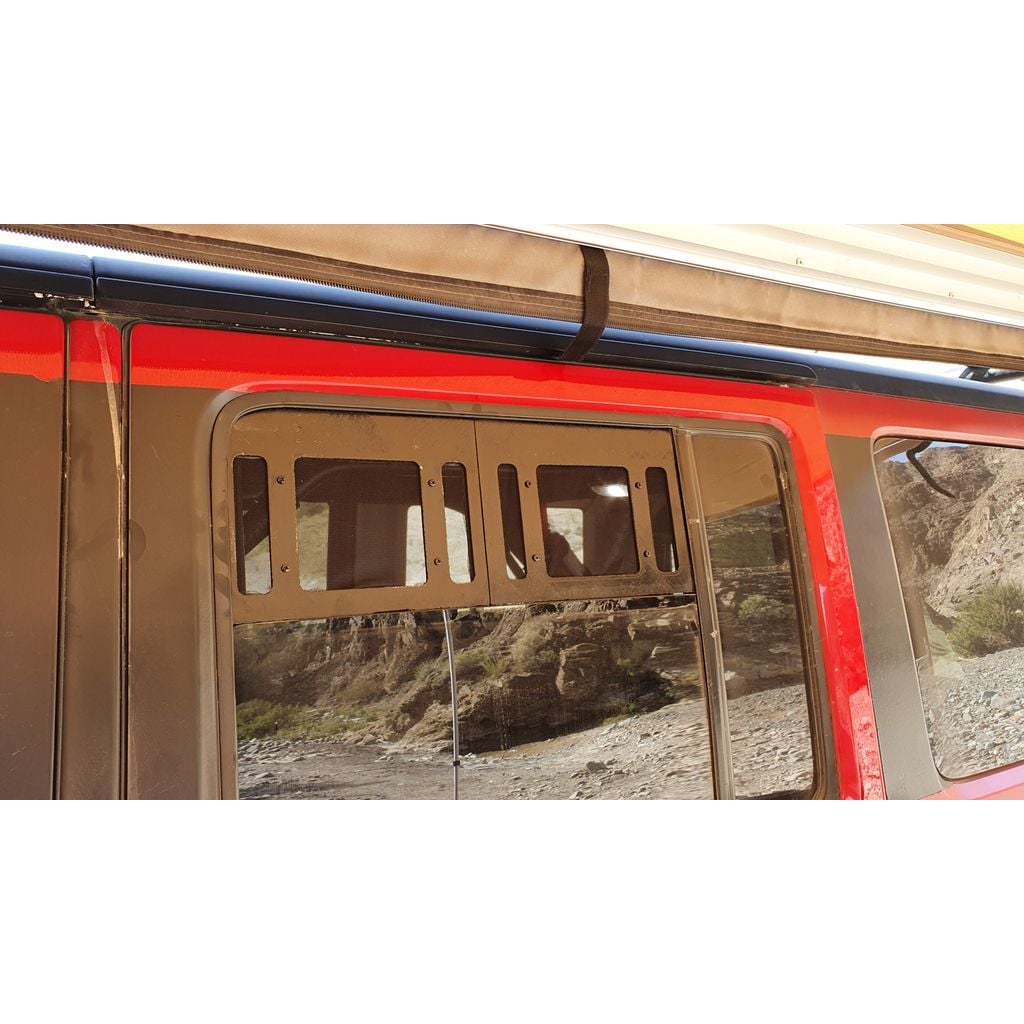

You unfold it into the window slide and then roll up your window until it pushes in place.
You will need:
Some kind of net
3x 25mm 3mm Bolts with Nuts (For the hinge)
I used some leftover 3mm bolts to bolt on the net frames to the folding parts but you can use glue
PENDING: I am working on adding a 120mm 5V fan to the holes in the middle.
Still working on it as I go. Please feel free to leave comments for improvements.
Compatible vehicles
- 2007-2018 Jeep Wrangler Unlimited JK
Always compare with your original part before ordering. Fitment can vary by trim level and production date.
Specifications
| Part | Window Insert Ventilation Screen |
|---|---|
| Make | Jeep |
| Model | Wrangler Unlimited |
| Year | 2007 |
| Production | 3D printed to order (FDM) |
| Design files | 4 (STL) |
| Part number | CAT-eedb1e53 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
How to order
This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.
