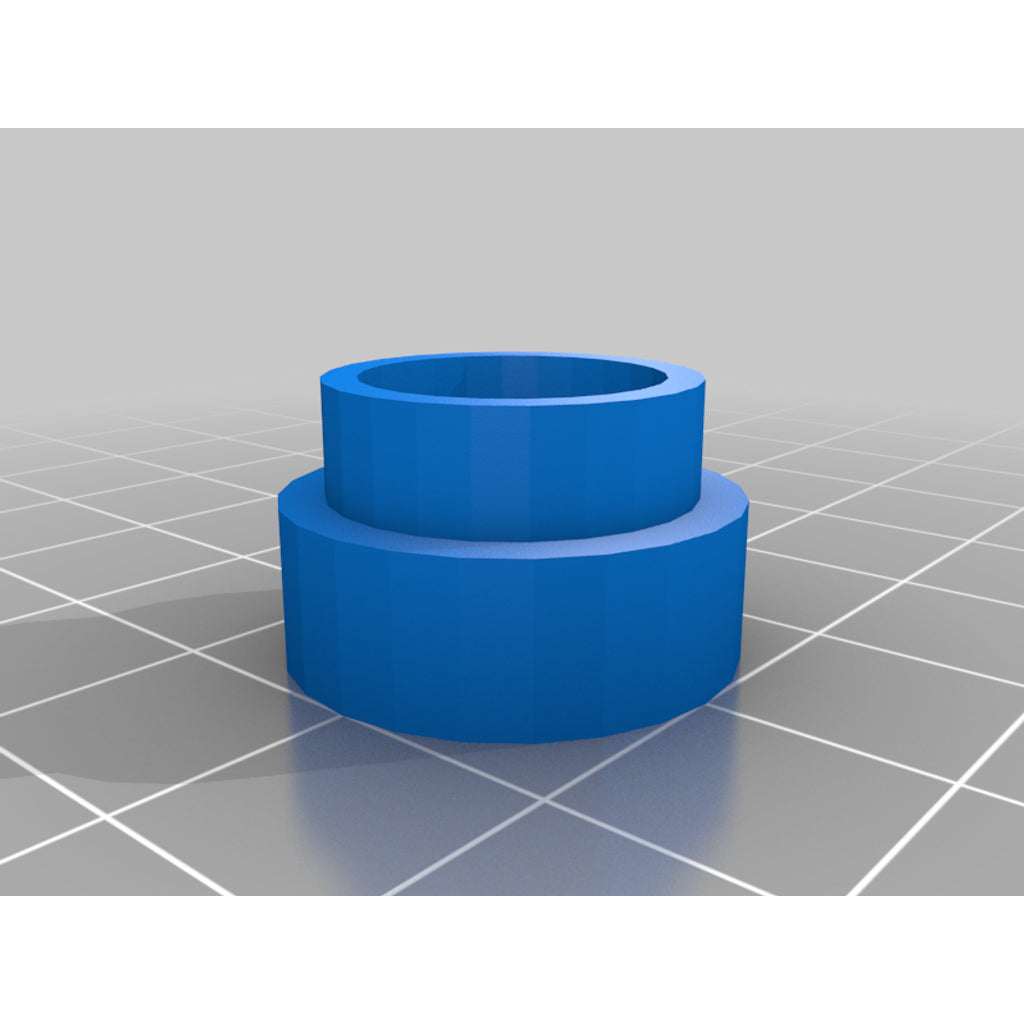

Wiper Pivot Mount – 1989-1994 Nissan 200sx S13

Replace a broken or missing wiper pivot mount on your 1989-1994 Nissan 200sx S13 with this 3D-printed part, produced to order by PartsRemade.

About this part

Replacement center plastic wiper pivot for Nissan 200SX S13, may also fit S14.

Compatible vehicles

• 1989-1994 Nissan 200sx S13

Always compare with your original part before ordering. Fitment can vary by trim level and production date.

Specifications

Print settings

Keeping older cars on the road is something of a challenge, especially when the manufacturer's supply of original parts is exhausted. The beauty of the 3D printer is the ability to produce your own replacements (within limits).

The parts are designed to print flat without support. To assemble:

1. Print out one each of the mount and insert and glue the insert into the bottom of the mount (it should fit without any fettling required.

2. Cut three M6 coach screws so about 20mm of thread remains (this is thread past the head and the square part of the neck).

3. Glue the coach screws into the mount, inserting from the top. The mount is designed to trap the square heads of the coach screws to prevent them turning, but a little glue always helps. I've included the sketchup source file in case anyone wants to redesign for hex head bolts.

4. Grab our original part and remove the old plastic mount by removing the split ring and pulling it away from the pivot.

5. Clean rust from the pivot, grease liberally and reassemble with your new mount.

6. Install back in your car and you're done!

The STL produced by sketchup is a bit buggy, but it seems to print OK.

How to order

This part is in our catalogue and is printed on request. Send us a request with your vehicle details and we will reply with a price and delivery time.

More Nissan parts

Browse all Nissan replacement parts or search the full 3D-printed car parts catalogue.

Design credit: original design on Thingiverse, licensed CC BY-SA-4.0.
