3D printable diybms v4 mounting bracket for the 2011-2026 Nissan Leaf: download the STL file and print an affordable replacement for a discontinued or expensive original part.
About this part

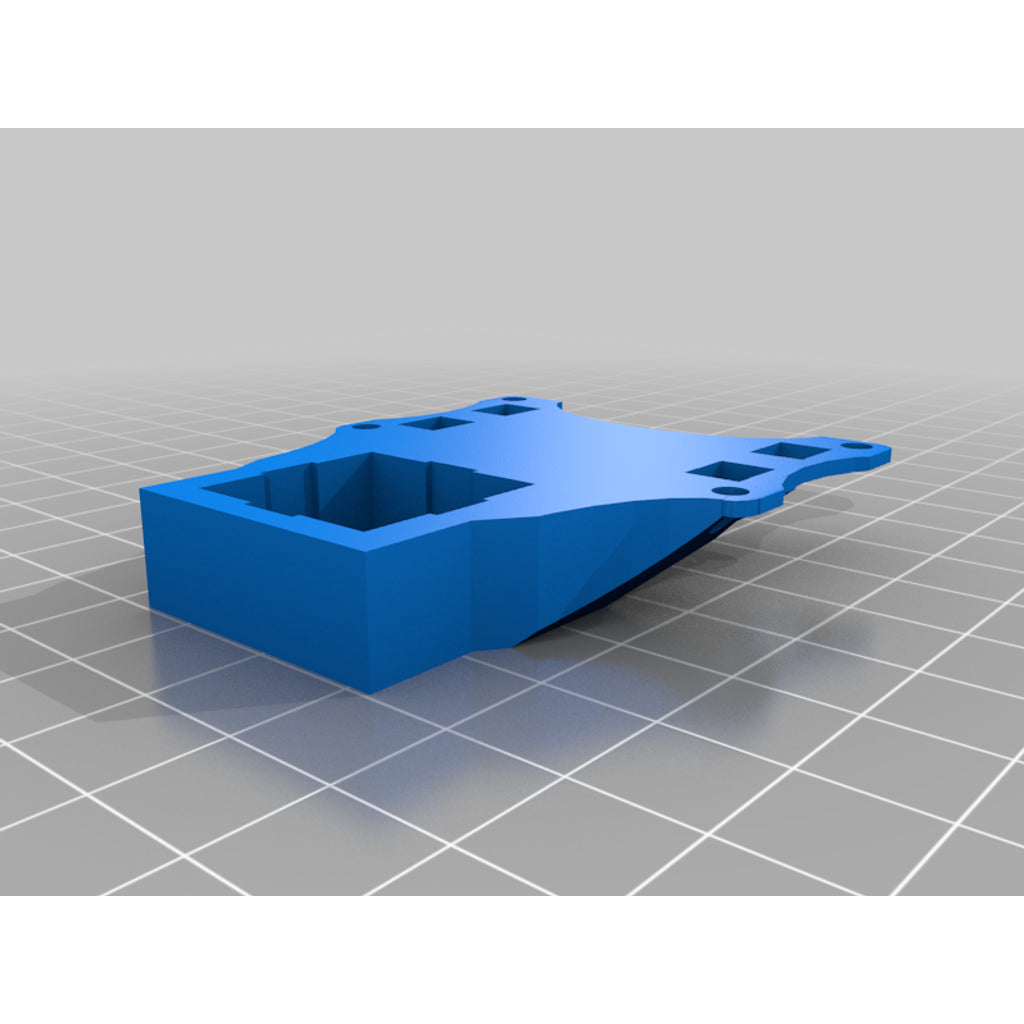

A simple bracket for the diyBMS version 4 on a Nissan Leaf cell, there is a diyBMS v4 board specific for the Nissan Laf cells but if like me you had the bms beforehand you can use this.
I have not tested if pla will be afected by the heat.
Based on AdamWelch idea but made from scratch in tinkercad.
Beware no printer is perfect pins may not fit in holes.
Compatible vehicles
- 2011-2026 Nissan Leaf
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Diybms V4 Mounting Bracket |
|---|---|
| Make | Nissan |
| Model | Leaf |
| Year | 2011 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 4 (STL) |
| Part number | CAT-83afd32e |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
