Instrumentenhalter – BMW 2002 e10

Benötigen Sie Ersatz für Instrumentenhalter an Ihrem BMW 2002 e10? Mit diesem 3D-Modell (STL-Datei) drucken Sie selbst ein Ersatzteil für ein defektes, verschlissenes oder fehlendes Originalteil.

Über dieses Teil

Originalbeschreibung des Designers (auf Englisch):

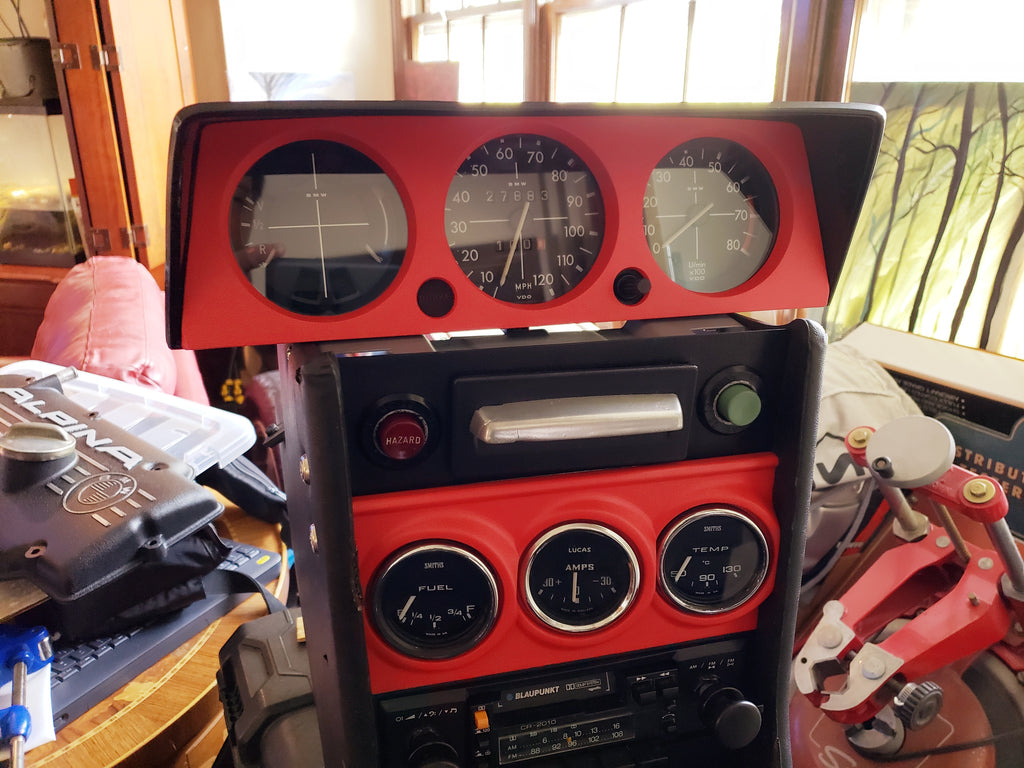

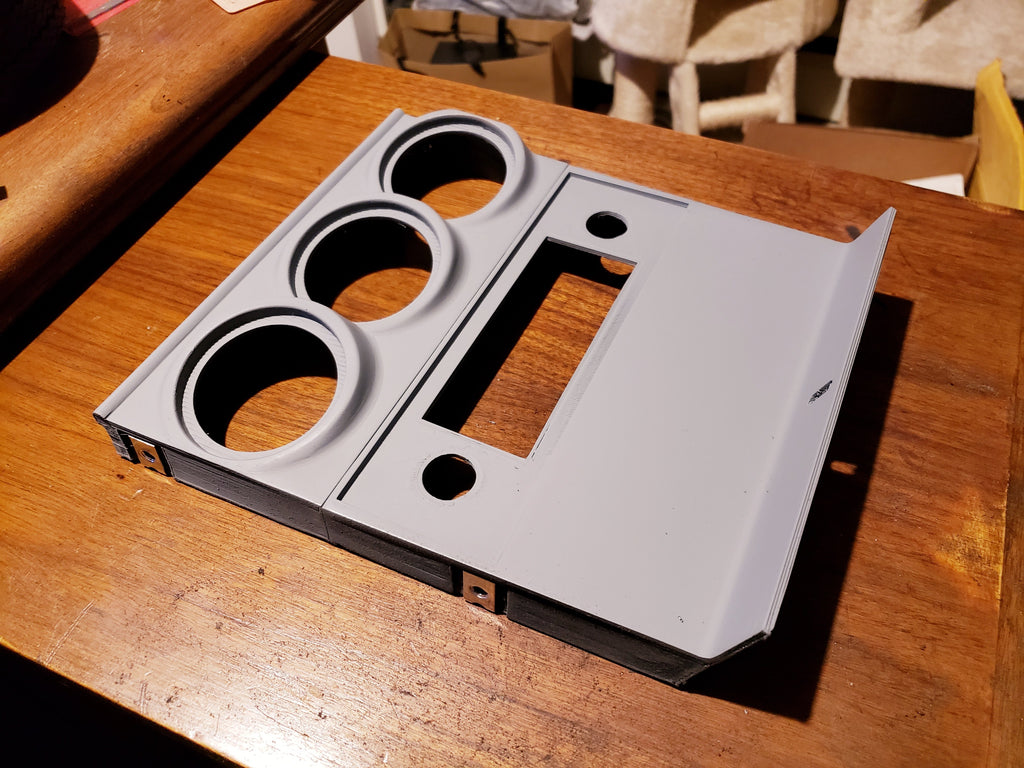

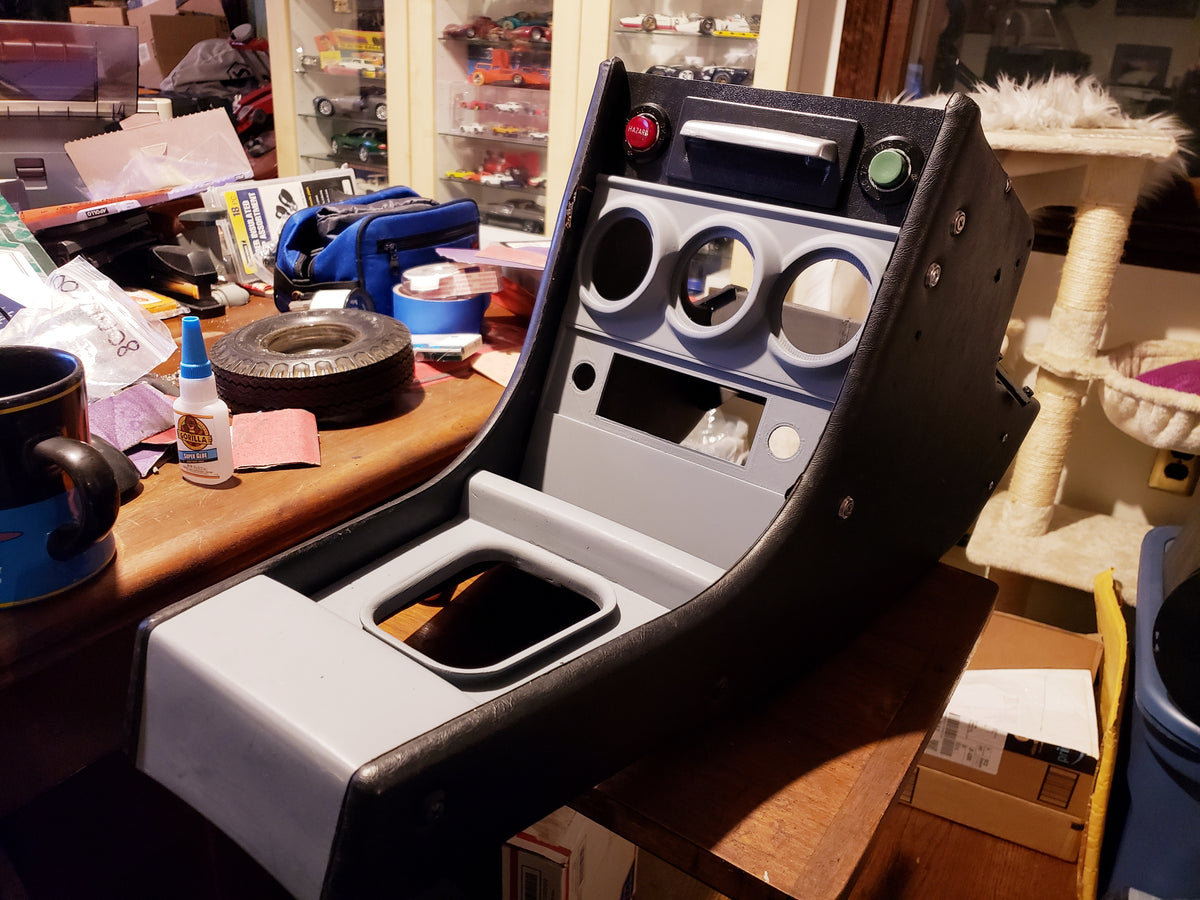

This is my adaptation of the BMW console I made that will fit three 52mm gauges and support a standard period Blaupunkt radio. I also printed the shifter surround but not included in this post as most of you must already have one (I didn't). Important to note is that I have incorporated the OEM ashtray and hazard switch assembly which is necessary for this build. I also 3D printed the rear brace with another part that will hold and support the back of the radio but also did not include it in this post as most of you will already have the rear OEM brace and depending on the radio, the dimensions will be different for the support. But you must make some kind of support as the vibrations of the car and bounces will undoubtedly crack the radio surround. I am sharing these files with the community for individual use but not allowing any commercial use of these files. With all that being said, the panels are extremely robust but will require time and effort to finish them to OEM standards. I printed the parts using my Makerbot Replicator 2X and ABS filament. The strength will be provided by using 4 shells and this way you can get away with a 15% infill. But it will still take about 23 hours to print with full supports and rafts. The unit is developed in 2 parts, the upper gauge pod and the lower radio surround as the size for a single complete unit exceeded my print area. I suggest that you get the parts sanded and smooth prior to gluing the two parts together. I used 240 grit sandpaper to knock down all the print lines and then filler primer. You may have to do this procedure a number of times to get a perfect finish. Once you are happy with the result, I used 800-1200 wet sandpaper to polish the primer to uncover any other possible surface defects. Again, you may have to do this a couple of times of re priming and sanding. Any deep marks can be addressed with some automotive bondo. But the better you prepare the surface, the better the part will come out. Next is to glue the two parts together. The Gel type of crazy glue works great and I have been having some very good results with the "Gorilla" crazy glue, not the standard gorilla glue, that stuff will expand too much. Just test fit the parts and sand so it will have a perfect fit. I also developed the parts so you can use those small spring clamps on the back to hold the parts together while the glue is drying, and it does set quickly, so have everything ready. Final finishing depends on your objective, pure stock or something different. I elected to make my console to match my Turbo dash pod, so I finished the gauge pod section to a perfectly flat and smooth surface and painted it to match. The radio and shifter surround I used a SEM textured paint and then an interior paint, Landau Black, which if applied correctly, gives you a near OEM look. I developed a bead over the 3 gauges to cover the gap between it and the ashtray panel as these consoles all have some give and take in positioning, so be

Passende Fahrzeuge

• BMW

Vergleichen Sie vor dem Drucken immer mit Ihrem Originalteil. Die Passform kann je nach Ausstattung und Baujahr abweichen.

Technische Daten

Was Sie erhalten

Ein digitales 3D-Modell (STL-Datei) dieses Teils, bereit zum Drucken auf Ihrem eigenen 3D-Drucker, in einem Copyshop vor Ort oder bei einem Online-Druckservice. Dies ist ein digitaler Download: Es wird kein physisches Teil versendet. Nicht sicher, ob es passt? Kontaktieren Sie uns vor dem Kauf mit den Daten Ihres Fahrzeugs.

Weitere BMW-Teile

Alle BMW-Ersatzteile ansehen oder die gesamte Bibliothek 3D-druckbarer Autoteile durchsuchen.

Design-Nachweis: Originaldesign auf Thingiverse, Lizenz: CC BY.
