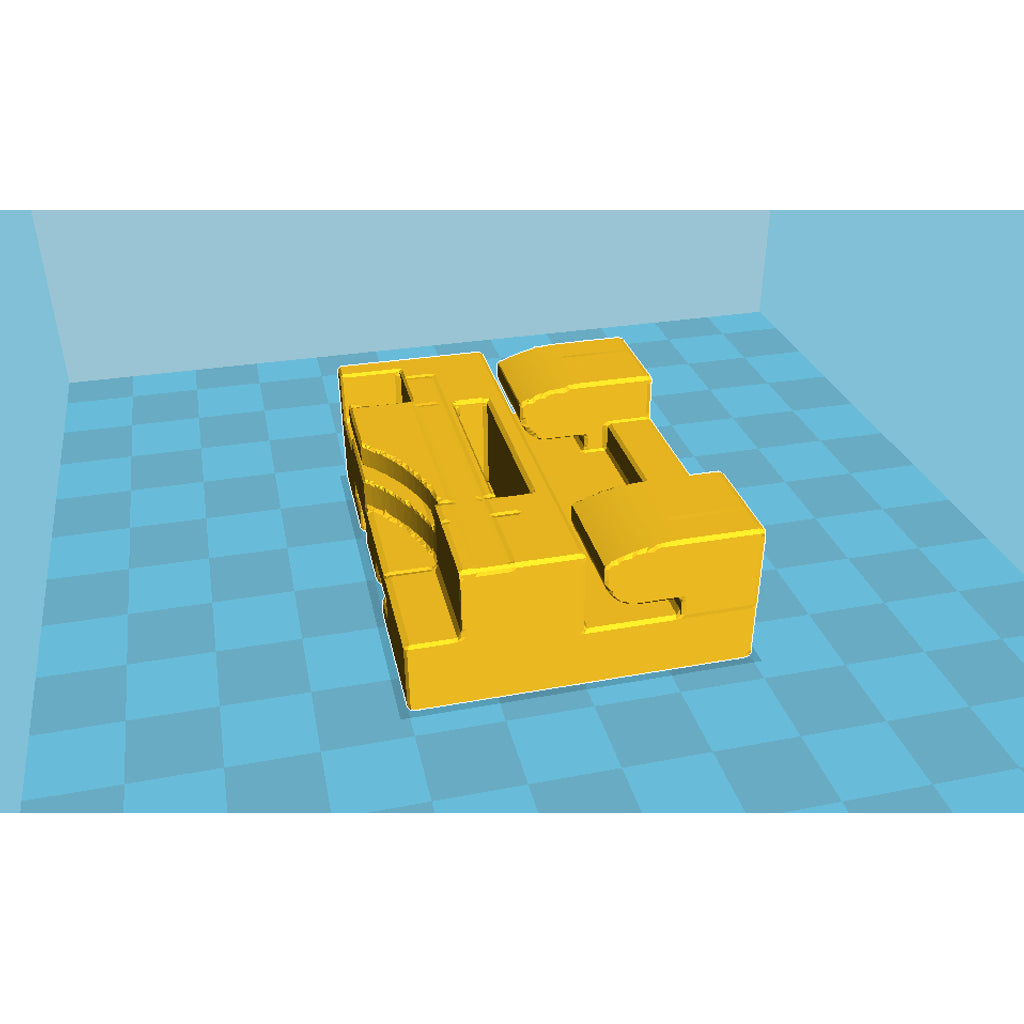

Window Clip Regulator Heavy Duty Version – 2007 Hyundai I30

3D printable window clip regulator heavy duty version for the 2007 Hyundai I30: download the STL file and print an affordable replacement for a discontinued or expensive original part.

About this part

After replacing my car window clips with Geckoslayers amazing design and having it break only a few weeks later, I decided to beef it up and add additional material where I could, without compromising the function of the clip.

Depending on your printing tolerances, you may need to mill out some of the spaces. I recommend using a 2.5mm drill bit, which seems to give a good fit along the slide rails. If you have a dremel or similar then probably use that but i was able to use a drill bit and just push it sideways as required.

Also I discovered that putting the wire back together is actually quite easy if you drive the assembly hard up against the non rotating pulley and then use a g-clamp between the clip and the end stop to take out the spring tension so you can reconnect the last wire by hand with minimal effort. (see photo)

Compatible vehicles

• 2007 Hyundai I30

Always compare with your original part before printing. Fitment can vary by trim level and production date.

Specifications

Print settings

Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed

What you get

A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.

More Hyundai parts

Browse all Hyundai replacement parts or search the full 3D printable car parts library.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
