Door Speaker Adapter Bracket – 2016 Mazda Mx5 Miata ND
Door Speaker Adapter Bracket – 2016 Mazda Mx5 Miata ND
Replace a broken or missing door speaker adapter bracket on your 2016 Mazda Mx5 Miata ND with this 3D printable part from PartsRemade.
About this part

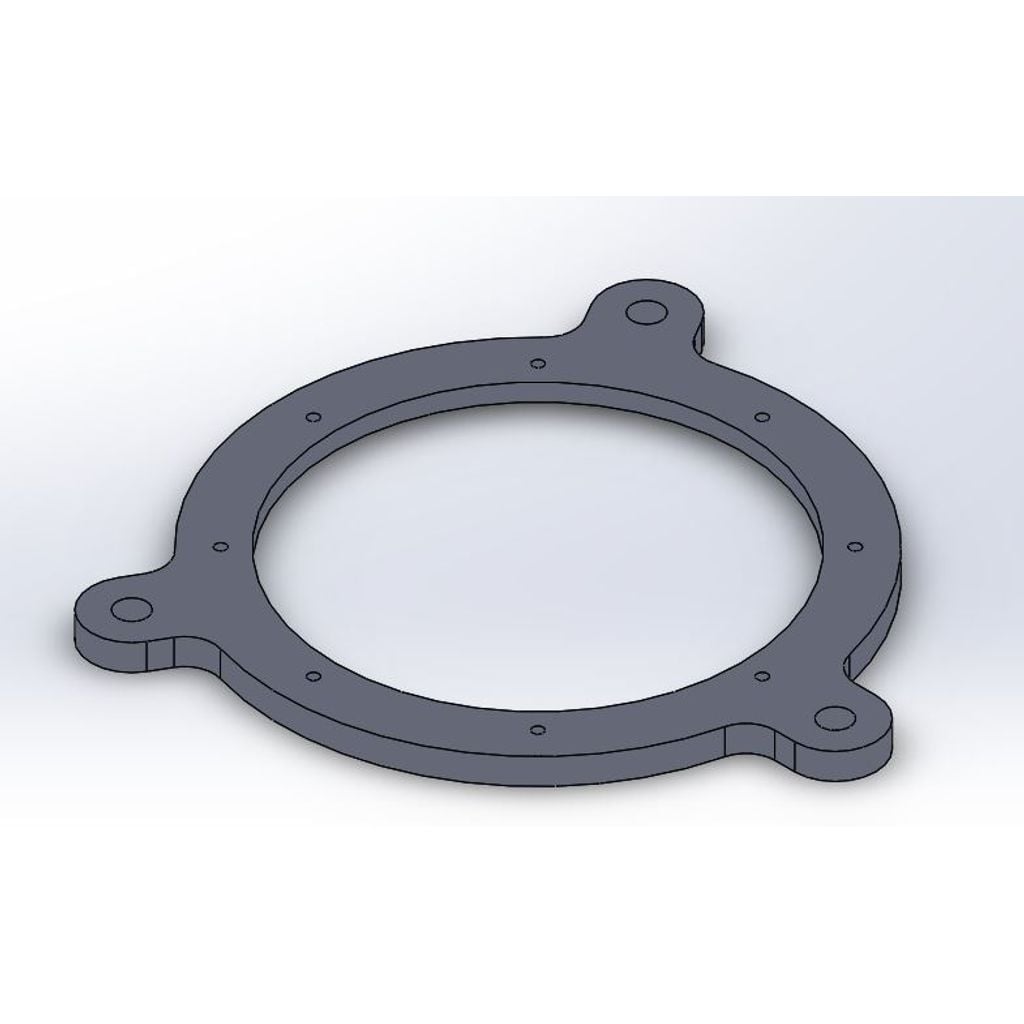

Adapter bracket for replacing the 6.5" door speakers in an ND generation Mazda MX5. Fits the factory door mounting holes and hardware, should be compatible with many aftermarket 6.5" speakers. I used JBL GTO620's as replacements. Speakers were mounted to the brackets using M4x20 hex cap machine screws and nuts, there are pockets in the bracket so the heads of the screws do not protrude and interfere with mounting. I also used foam between the bracket and door, and speaker and bracket, to minimize any coupled vibration. Printed with PLA, 30% infill. It is plenty rigid.
Compatible vehicles
- 2016 Mazda Mx5 Miata ND
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Door Speaker Adapter Bracket |
|---|---|
| Make | Mazda |
| Model | MX5 Miata |
| Year | 2016 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 1 (STL) |
| Part number | CAT-e7aa29d5 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
