Ports USB de console centrale Honda Civic 2006
Ports USB de console centrale Honda Civic 2006
Besoin de remplacer : Ports USB de console centrale Honda Civic 2006 ? Ce modèle 3D (fichier STL) vous permet d'imprimer une pièce de rechange pour une pièce d'origine cassée, usée ou manquante.
À propos de cette pièce
Description originale du designer (en anglais) :

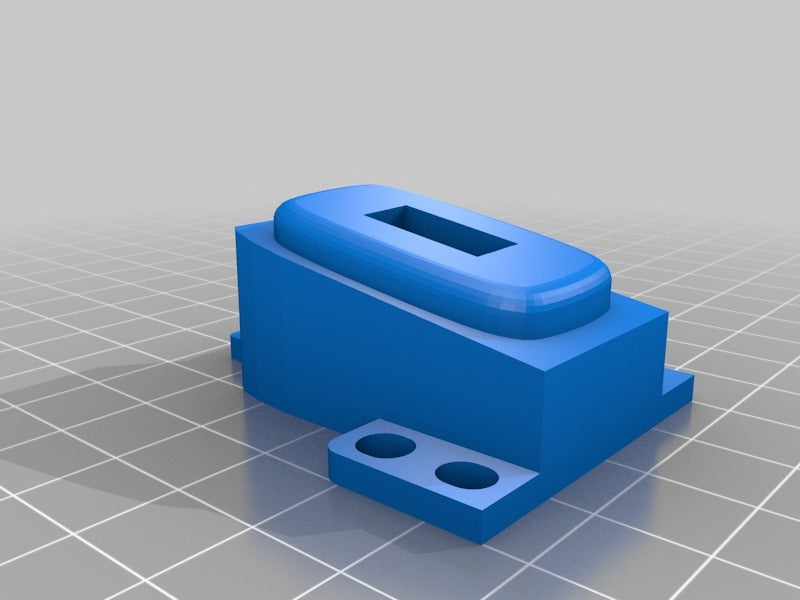

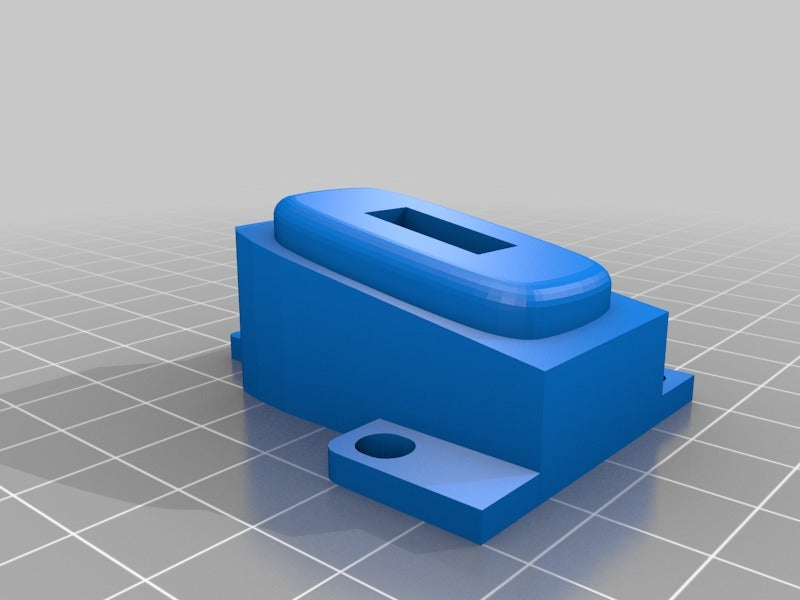

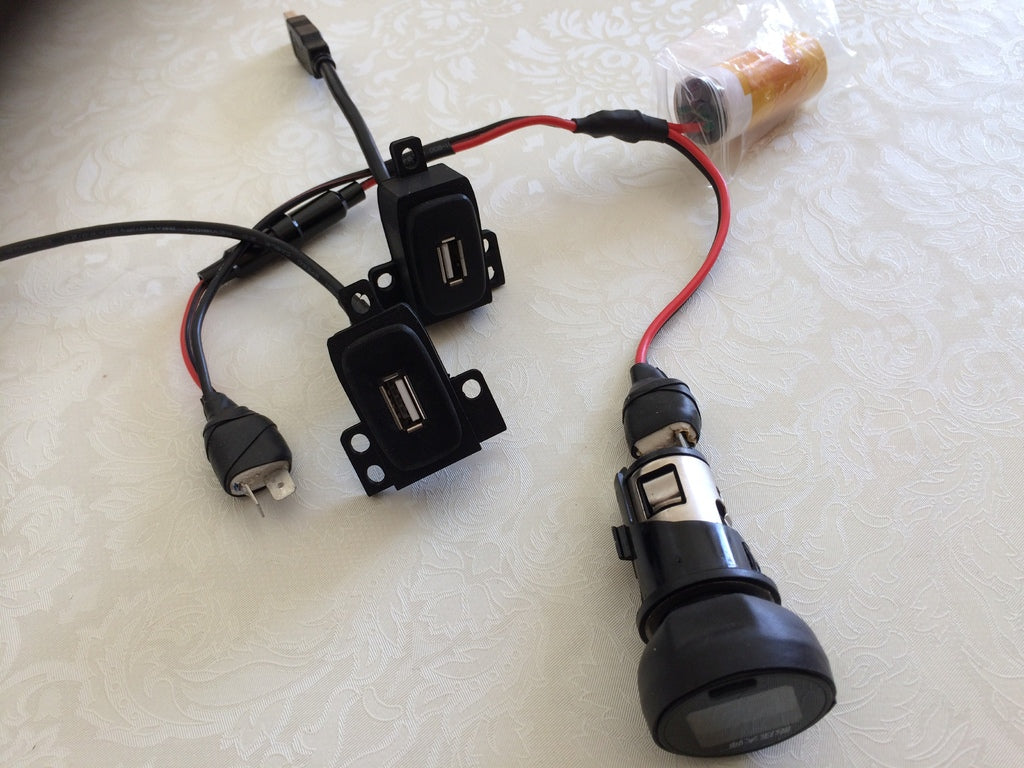

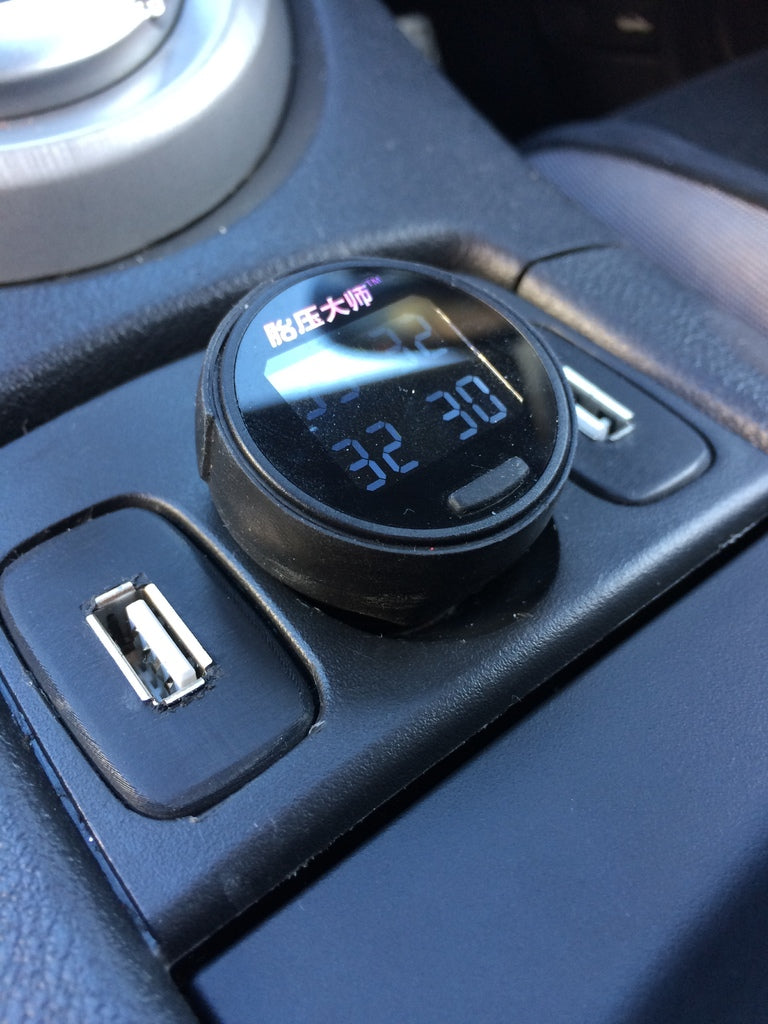

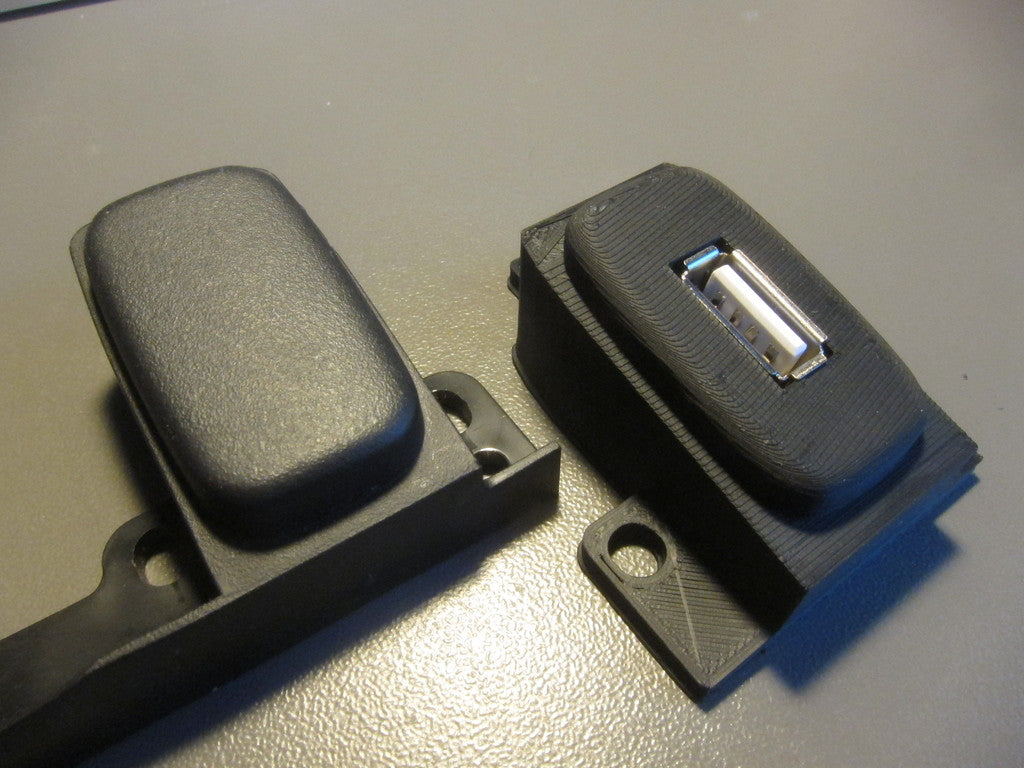

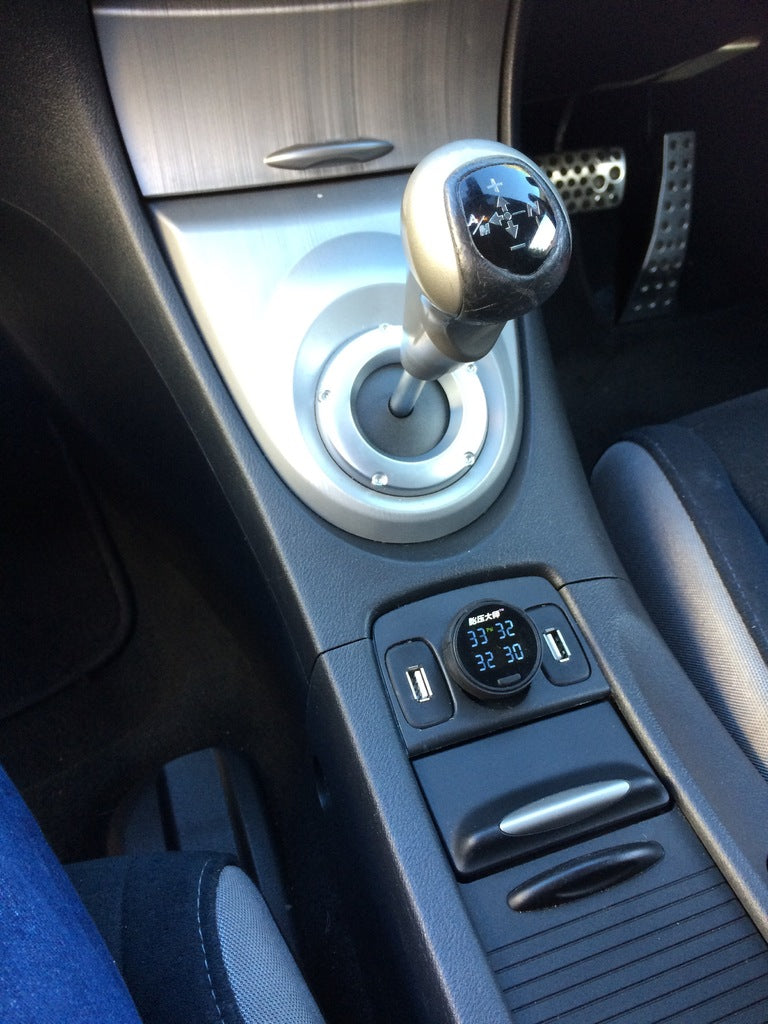

Sick of using a lighter socket charger and wanting to use that for a cheap TPMS monitor, I wanted to replace the blanking plates used in better models for heated seat switches. Rather than cutting holes in the existing panel, which in hindsight would have been MUCH easier, I printed them. Add in short USB extension cables and then splice a USB charger and a fuse between the loom and the existing lighter socket, and it all works. There's plenty of space in the centre console to fit it all. Print Settings Printer Brand: CEL Printer: Robox Rafts: No Supports: No Resolution: Fine Infill: 40% Notes: Black ABS printed at Fine resolution on a Green Beta Robox. Printed as two separate parts. Post-Printing Sanding It just required a light sanding with wet-and-dry (600?) to get rid of the stair steps, and a very light polish with Brasso. To get a better fit in final installation, the positioning holes were trimmed slightly with a diamond needle file. Wiring Two short (15cm) cables were bought from Amazon and shoved in the holes. However, due to clearance concerns, I replaced them with soldered sockets, although in hindsight this was unnecessary. The sockets were fixed in with Sugru and a strain relief moulded in. An extension harness with a fuse and charger in between the existing lighter socket and the car's wiring loom was added, using crimp spade terminals, which were then encased in epoxy putty to form a plug. All critical parts were heat-shrinked and/or wrapped in silicone amalgamating tape. After soldering in a new charger (worrying that there wasn't enough space otherwise) it turns out the new charger was faulty. However, as there was easily enough space for an inline lighter socket and a low-profile dual USB charger, this was an easy replacement. The addition is entirely non-destructive, so the extra wiring and charger can be removed and the original blanking plates replaced. How I Designed This Blender, and measurements with cheap digital calipers. Category: Automotive.
Véhicules compatibles
- 2006 Honda Civic
Comparez toujours avec votre pièce d'origine avant d'imprimer. La compatibilité peut varier selon la finition et la date de production.
Caractéristiques
| Pièce | Ports USB de console centrale Honda Civic 2006 |
|---|---|
| Catégorie | Console centrale |
| Marque | Honda |
| Modèle | Civic |
| Format | Téléchargement numérique – fichier STL pour impression 3D FDM |
| Fichiers inclus | 1 (STL) |
| Référence | CAT-P00527 |
Ce que vous recevez
Un modèle 3D numérique (fichier STL) de cette pièce, prêt à imprimer sur votre propre imprimante 3D, dans un atelier d'impression près de chez vous ou via un service d'impression en ligne. Il s'agit d'un téléchargement numérique : aucune pièce physique n'est expédiée. Vous n'êtes pas sûr de la compatibilité ? Contactez-nous avec les informations de votre véhicule avant d'acheter.
Plus de pièces Honda
Voir toutes les pièces de rechange Honda ou parcourir toute la bibliothèque de pièces auto imprimables en 3D.
Crédit design : design original par gid sur Printables, licence CC BY.
