Speaker Mount Bracket – 2015 Kia Sportage

3D printable speaker mount bracket for the 2015 Kia Sportage: download the STL file and print an affordable replacement for a discontinued or expensive original part.

About this part

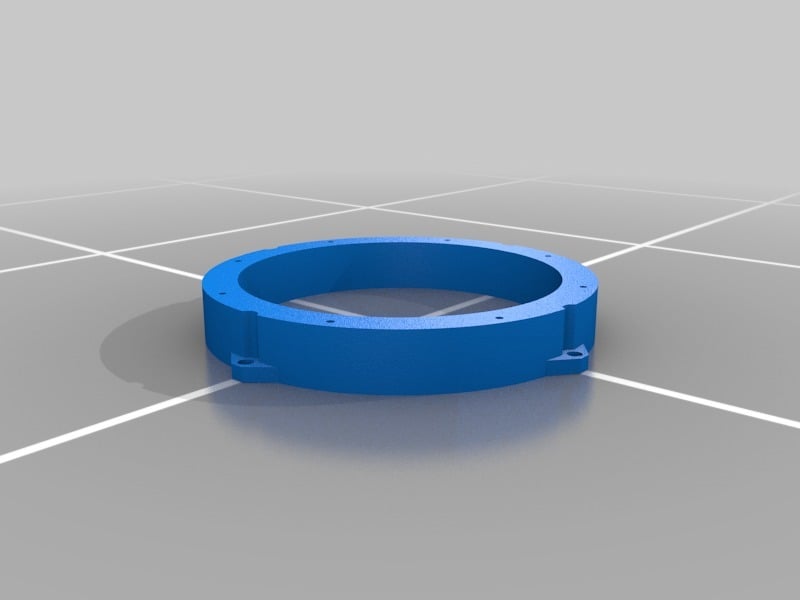

Note that this model is in inches. This is a customized speaker mount adapter for a 2015 Kia Sportage. This is designed to fit 6.75 inch speakers. It was made using https://www.thingiverse.com/thing:2924217. I had to add mount tabs to the outside edges.
Since it is in inches you can either use the "Barbarian Units" plugin for Cura or you can scale the model by 2540% in your slicer.
Update 7/8/18: This speaker ring as designed didn't quite work. I have redesigned it, and the new design now works. I've made it 1 inch thick and adjusted the mount screw spacing and rotated the mount tabs to be between the speaker screws. Also moved the wiring slot to a hole in the ring. It is a little small for terminals. I used #10x1/14 mount screws and #8x1 screws for the speaker. The screw holes as printed worked well.
I also used speaker gasket tape which I highly recommend: https://www.amazon.com/Parts-Express-Speaker-Gasketing-tape/dp/B0002ZPLPM/ref=sr_1_3?ie=UTF8&qid=1531112743&sr=8-3&keywords=speaker+gasket.

Compatible vehicles

• 2015 Kia Sportage

Always compare with your original part before printing. Fitment can vary by trim level and production date.

Specifications

Print settings

Resolution:
.2 or .3
Infill: 30% Notes: I used ASA with 3mm walls and 30% infill.

What you get

A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.

More Kia parts

Browse all Kia replacement parts or search the full 3D printable car parts library.

Design credit: original design on Thingiverse, licensed CC BY-4.0.
