Amplifier Connector for BMW Vehicle – BMW E46

3D printable amplifier connector for bmw vehicle made for the BMW E46: download the STL file and print a replacement for a cracked, lost or hard-to-find original part.

About this part

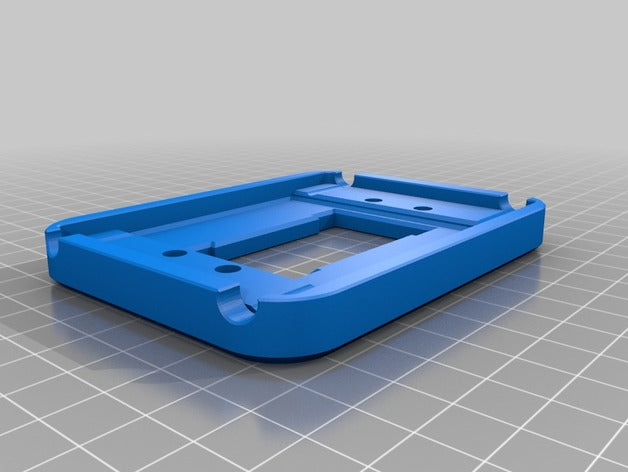

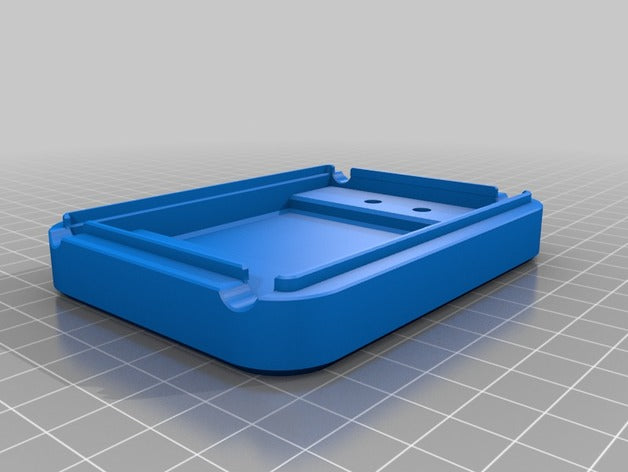

This is a 3d printable connector that allows you to replace the rear amplifier in a E46 BMW Harman Kardon system. No need to cut off the connector or splice wires, just plug and go. The factory retention and eject system for the connector is retained. This connector also applies to other cars (BMW) with the same audio system. I used a dual row 0.1" pitch header with some pins removed for the electrical contacts. The header was soldered to a carrier PCB and the wiring was then fanned out to the rest of the components. The.stp file is included for those that wish to modify the connector.

Compatible vehicles

• BMW E46

Always compare with your original part before printing. Fitment can vary by trim level and production date.

Specifications

What you get

A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.

More BMW parts

Browse all BMW replacement parts or search the full 3D printable car parts library.

Design credit: original design by Alex Lait on Thingiverse.
