Replace a broken or missing center console hinge on your 2003-2007 Toyota Matrix with this 3D printable part from PartsRemade.
About this part
Replacement hinge pins for center console cover for Pontiac Vibe or Toyota Matrix or Corola about 2003 to 2007 models. should be printed in PETG or ABS, PLA will deform from the heat.
TPU is a good choice if printed at 100% infil. TPU is very tough
Added two more designs, one with fillets and one with the ridge the original has.
Added a set for 2005 to 2007 Matrix models because they are larger than the early modes.

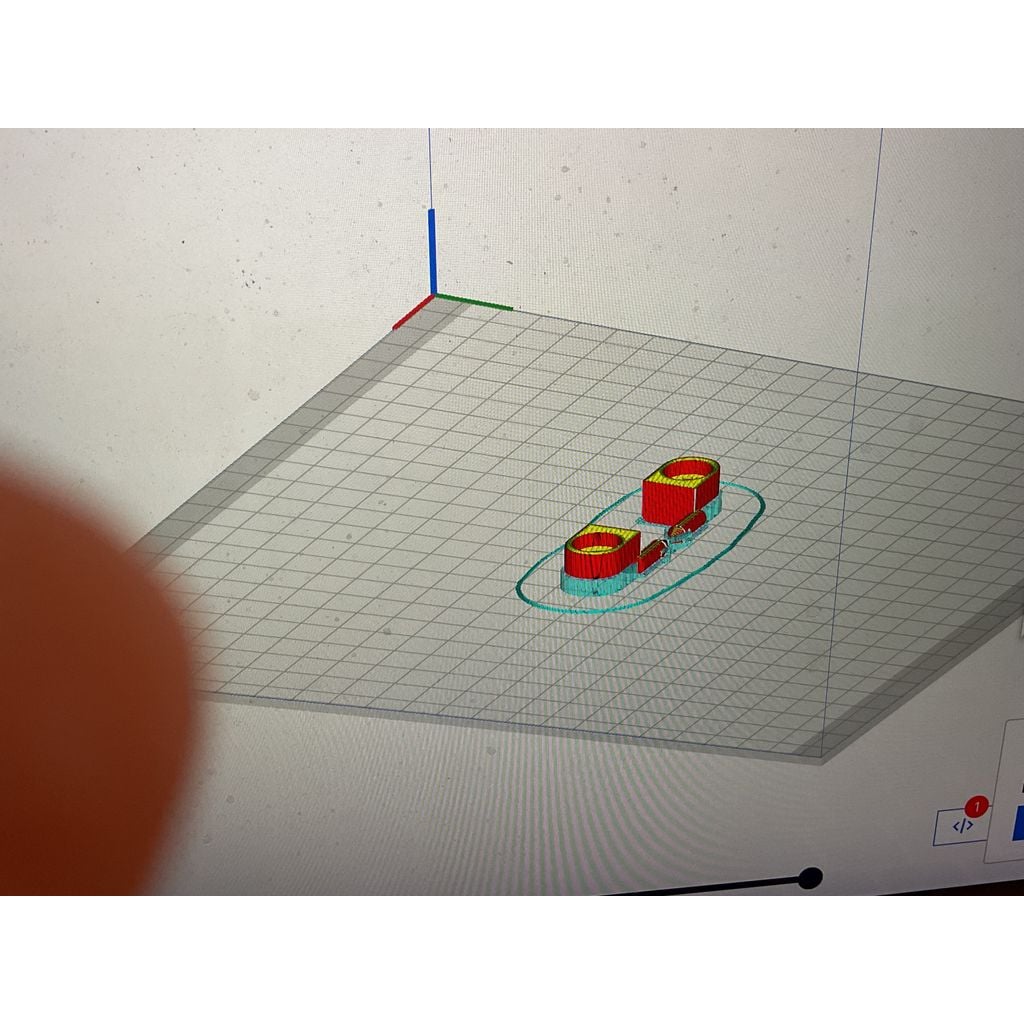

I suggest printing with TPU and for supports, In Cura change the interface from Zigzag to Lines, Its much easier to remove the supports using lines. that makes the orientation of the print less important The Print flat version changes the orientation of the slot for the pin so it can be printed flat. the others are designed to print vertical
I added the FreeCad file I made to make the model
Compatible vehicles
- 2003-2007 Toyota Matrix
Always compare with your original part before printing. Fitment can vary by trim level and production date.
Specifications
| Part | Center Console Hinge |
|---|---|
| Make | Toyota |
| Model | Matrix |
| Year | 2003 |
| Format | Digital download – STL file for FDM 3D printing |
| Files included | 5 (STL) |
| Part number | CAT-9cbe4096 |
Print settings
Standard FDM printing settings:
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
What you get
A digital 3D model (STL file) of this part, ready to print on your own 3D printer or at any local print shop or online printing service. This is a digital download: no physical part is shipped. Not sure it fits your car? Contact us with your vehicle details before you buy.
